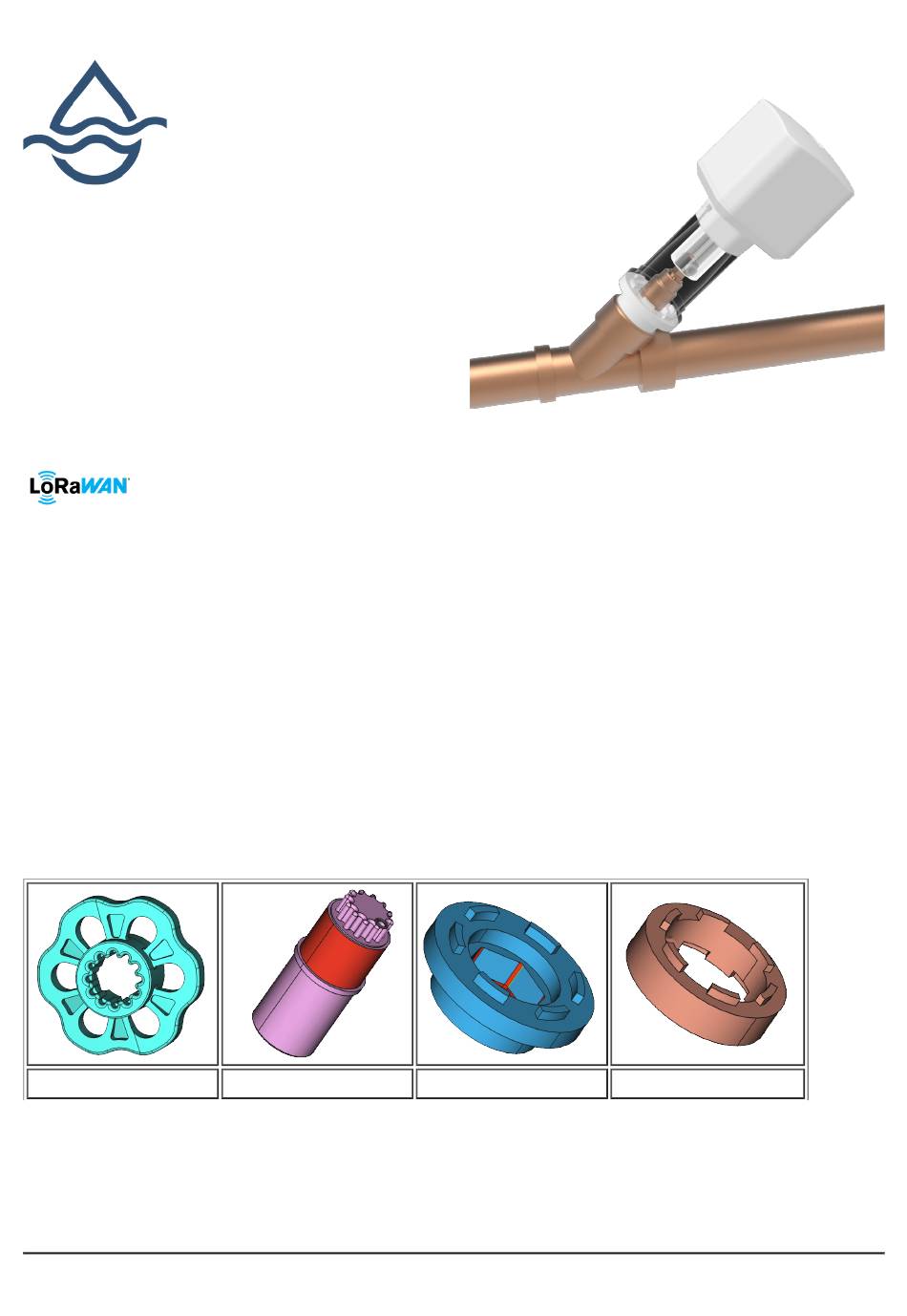

Users and Installation Manual: Motor Servo for Angled Seat Valves (KFRLWE01)
Motor Servo for
Angled Seat Valves
SKU: KFRLWE01
Version: 1.0.0
Product Description

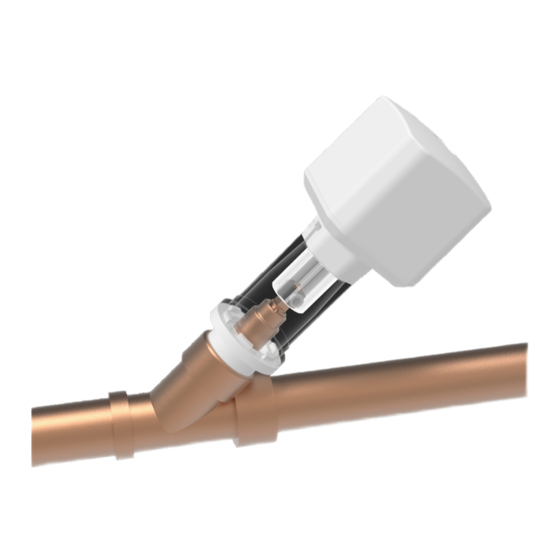

The Angle Seat Valve Servo is a motor for retrofitting existing and installed gate or angled seat gate
valves, popular in several European countries, into intelligent water control devices. It can be installed
and removed without any special tools and without interrupting water supply or cutting even into the
pipe. The device supports LoRaWAN industry standard for easy integration into existing networks, and it
can be controlled directly from an Aqua-Scope Monitor using LoRaP2P. One local button allows manual
operation. The motor is powered by an external 12V power supply.
Various adapter rings and an ingenious connection system allow the motor to be used on all modern
angled seat valves from DN15 to DN32. The unit can operate in harsh environments, even submerged,
and can be wired directly to an additional local water sensor pad.
Parts
Handwheel (H)
Inner Coupling (K)
Adapter (Ax)
Distance Rings (D1,D2)
