Aqua-Scope KFRDRY02 Manual

Remote Dry Contact controlled Motor for Gate Valves
KFRDRY02
automatically created 2024.02.16, 10:03:08 @ www.aqua-scope.com/manuals

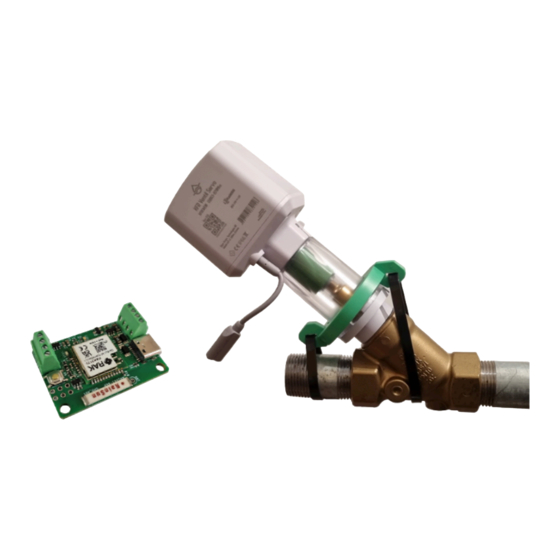

Remote Dry Contact controlled Motor
Product Description
The motor drive designed for angle seat valves, specifically KFR valves, offers a
solution for seamlessly retrofitting existing shut-off valves into remotely controlled
intelligent devices. This process is achieved without the need to interrupt water
supply or cut into the water pipe. The 12V-powered motor is not only water-
resistant but also resistant to dirt, ensuring durability up to the power supply.
Versatility is achieved through various adapter rings and a sophisticated connection
system, allowing the motor to be compatible with modern angle seat valves
featuring raising or non-raising stems, ranging from DN15 to DN32.
Incorporating an additional water sensor directly connected to the device enhances
functionality, enabling the motor to serve as a leak protection system without the
need for further configuration or wireless connectivity. The servo motor's
waterproof design makes it suitable for deployment in damp, dirty, and outdoor
environments. In its open state, the motor autonomously conducts valve training
weekly, involving a closing/opening action by 1/8 turn to remove dirt and scale.
The device is controlled either through the local button or a switch input on the 'Dry
for Gate Valves
SKU: KFRDRY02
Version: 1.0
1 / 5
