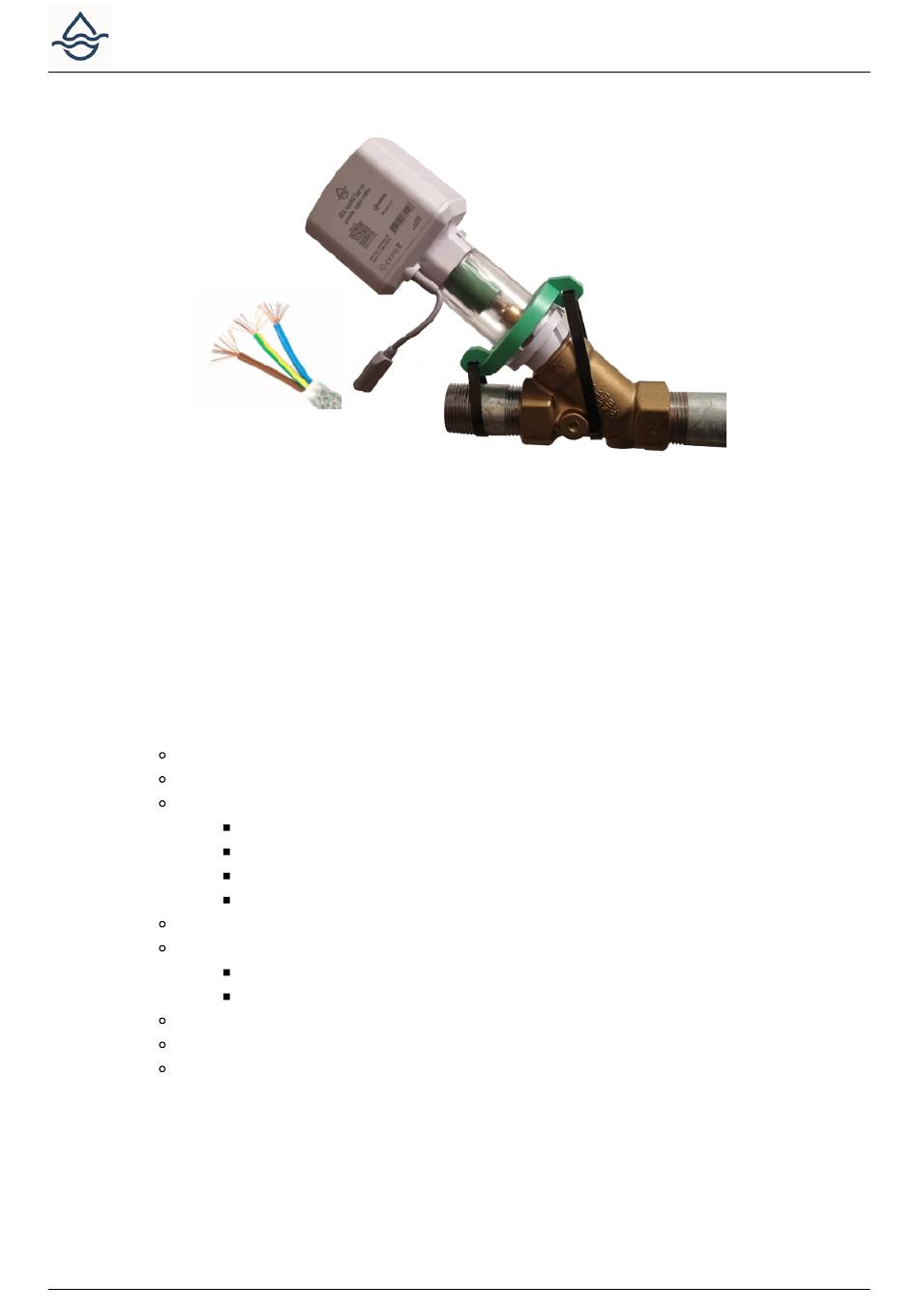

Dry Contact controlled Retrofit-Motor for Gate Valves
KFRDRY01
automatically created 2025.05.29, 05:07:11 @ www.aqua-scope.com/manuals
Dry Contact controlled Retrofit-Motor
1. Product Description
2. Parts of the Motor
3. Installation of the motor
4. Scope of Delivery
5. Technical Data
6. Support and Contact
7. Declaration of Conformity
8. Disposal Guidelines
1. Product Description
The motor drive designed for angle seat valves, specifically KFR valves, offers a
solution for seamlessly retrofitting existing shut-off valves into remotely controlled
for Gate Valves
SKU: KFRDRY01
Version: 1.1 (May 25)
3.1. Mounting the motor on the valve
3.2. Valves from Wilhelm Ewe GmbH and Co. KG
3.3. Custom Adapter
3.4. Setting the End Positions of the Motor Drive
5.1. Valve Motor
5.2. Communication: Cable
1 / 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KFRDRY01 and is the answer not in the manual?

Questions and answers

Related Manuals for Aqua-Scope KFRDRY01

Summary of Contents for Aqua-Scope KFRDRY01

  • Page 1 Dry Contact controlled Retrofit-Motor for Gate Valves KFRDRY01 automatically created 2025.05.29, 05:07:11 @ www.aqua-scope.com/manuals Dry Contact controlled Retrofit-Motor for Gate Valves SKU: KFRDRY01 Version: 1.1 (May 25) 1. Product Description 2. Parts of the Motor 3. Installation of the motor 3.1.

  • Page 2: Installation Of The Motor

    Dry Contact controlled Retrofit-Motor for Gate Valves KFRDRY01 automatically created 2025.05.29, 05:07:11 @ www.aqua-scope.com/manuals intelligent devices. This process is achieved without the need to interrupt water supply or cut into the water pipe. The 12V-powered motor is not only water- resistant but also resistant to dirt, ensuring durability up to the power supply.
  • Page 3 Dry Contact controlled Retrofit-Motor for Gate Valves KFRDRY01 automatically created 2025.05.29, 05:07:11 @ www.aqua-scope.com/manuals When installing, the valve should be normally open (installers recommend opening the valve fully and then closing it slightly with approx. 2 clockwise turns). 1. First, loosen the screw in the center of the handwheel using a screwdriver.
  • Page 4 Dry Contact controlled Retrofit-Motor for Gate Valves KFRDRY01 automatically created 2025.05.29, 05:07:11 @ www.aqua-scope.com/manuals 3.2. Valves from Wilhelm Ewe GmbH and Co. KG The valves from this company have a unique design. You must insert the split ring (E1+E2) into the 24 mm spacer ring (D1) instead of using one of the adapters A1 ...
  • Page 5 ‘CLOSE’ position. Therefore, this slight reverse function can be disabled. If paired with an internet-enabled Aqua-Scope sensor, use the app in the “Configuration” section. If paired with a non-internet-enabled device or used standalone, the function can be toggled on or off by pressing and holding the button for 6 seconds (6 * buzzer), then releasing.

  • Page 6: Scope Of Delivery

    Dry Contact controlled Retrofit-Motor for Gate Valves KFRDRY01 automatically created 2025.05.29, 05:07:11 @ www.aqua-scope.com/manuals 4. Scope of Delivery Motor with power cable (150 cm) to waterproof coupling 4 * adapter rings to connect to the valve housing 3 different connectors for the stem...

  • Page 7: Support And Contact

    Estonia, declares that this radio emitting device works on the following frequences: Български С настоящото Aqua-Scope Technology OÜ декларира, че този тип радиосъоръжение KFRDRY01 е в съответств ие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери н а следния интернет адрес: www.aqua-scope.com/ce.
  • Page 8 ακόλουθη ιστοσελίδα στο διαδίκτυο: www.aqua-scope.com/ce Français Le soussigné, Aqua-Scope Technology OÜ, déclare que l'équipement radioélectrique du type KFRDRY01 est conforme la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible l'adresse internet suivante: www.aqua-scope.com/ce Hrvatski Aqua-Scope Technology OÜ ovime izjavljuje da je radijska oprema tipa KFRDRY01 u skladu s Direktivom 2014/53/EU.

  • Page 9: Disposal Guidelines

    2025.05.29, 05:07:11 @ www.aqua-scope.com/manuals Português O(a) abaixo assinado(a) Aqua-Scope Technology OÜ declara que o presente tipo de equipamento de rádio KFRDRY01 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declarao de conformidade está disponível no seguinte endereo de Internet: www.aqua-scope.com/ce Română...
