www.aqua-scope.com

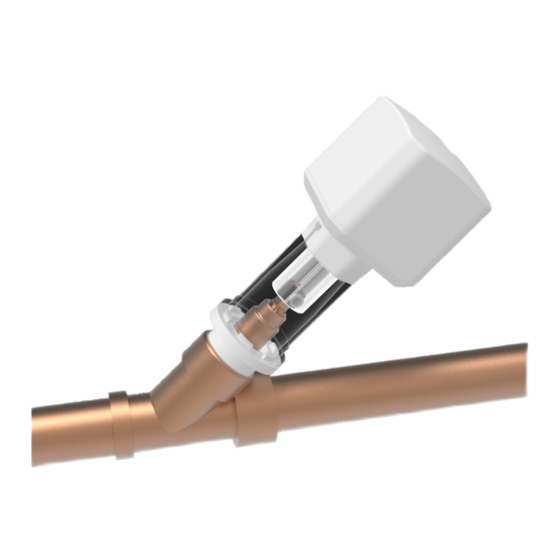

Gate Valve Servo
For Angled and Straight Seats
The Angled Seat Valve Servo is a motor to retrofit existing and installed Gate or even Angled Seat Gate
Valves popular in several European countries into smart water controlling devices. Its wireless
communication capabilities are compatible with the LoRaWAN industry standard for easy integration
into existing networks. Additionally, the device is controlled directly by the Aqua-Scope Monitor to
compose a complete Leak Protection System. The motor is powered by a 12 V external power supply or
- optional – a battery block.
Various adapter rings and a sophisticated patented connection system allow to apply the motor on all
contemporary Angled Seat Valves from DN15 to DN32. The device can operate in difficult environmental
conditions, even submerged under water, and allows to directly connect one additional local water
sensor pad by cable.
Advertisement
Table of Contents
Related Manuals for Aqua-Scope KFRLWE01
Summary of Contents for Aqua-Scope KFRLWE01

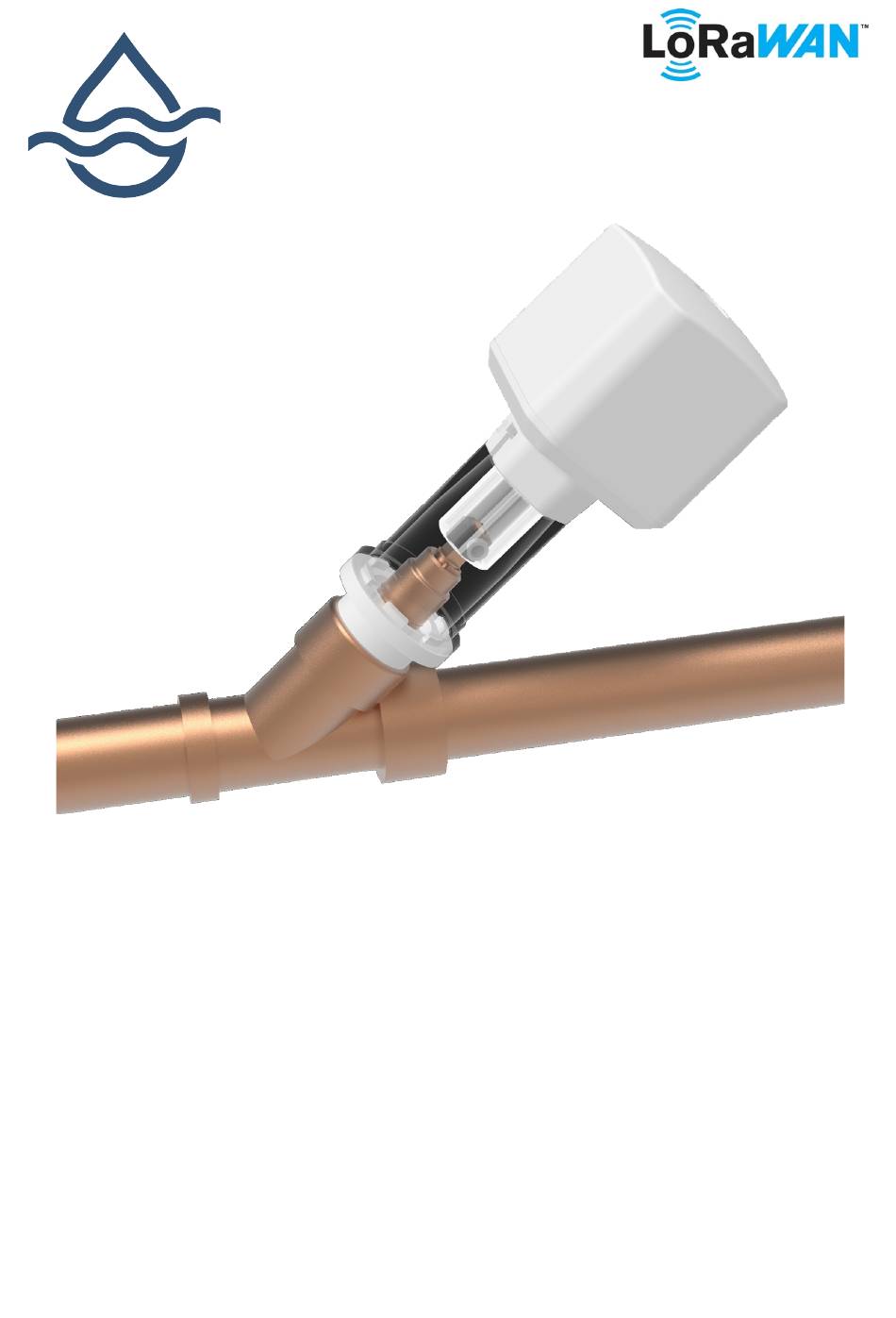

- Page 1 LoRaWAN industry standard for easy integration into existing networks. Additionally, the device is controlled directly by the Aqua-Scope Monitor to compose a complete Leak Protection System. The motor is powered by a 12 V external power supply or - optional –...
-
Page 2: Technical Data
US configurable (*) Please note that the device is not exposed to drinking water there therefore not subject to European Drinking Water directive. Aqua-Scope Technologies OÜ, Sakala tn 7-2, 10141 Tallinn Republic of Estonia Phone: +372 6148002, Mail: infoaqua-scope.com, Web: aqua-scope.com... -
Page 3: Installation
The main housing (G) must be firmly connected to the valve body. Adapter rings (Ax) for M17, M22, M27 or M30 wrench sizes are used for this purpose. The appropriate adapter ring is placed on the valve body. If none of the supplied adapters fit the valve, please contact Aqua-Scope support. -
Page 4: Operating The Device
Depending on the length of the valve spindle, one of both of the spacer rings (D1,D2) may need to be inserted between the adapter ring (Ax) and the main housing (G). To determine the need for this, the following steps must be carried out: 1. - Page 5 Wireless Communication - LoRaWAN To pair the device with an Aqua-Scope Monitor, follow the instructions in the Aqua-Scope app. The device can be controlled directly via LoRaWAN. For this purpose, different commands are defined, which are used either 'uplink’, i.e.
-
Page 6: Support And Contact
Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: www.aqua-scope.com/ce Slovensko Aqua-Scope Technology OÜ potrjuje, da je tip radijske opreme KFRLWE skladen z irektivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: www.aqua-scope.com/ce...
