Summary of Contents for Seiwa SWx 900

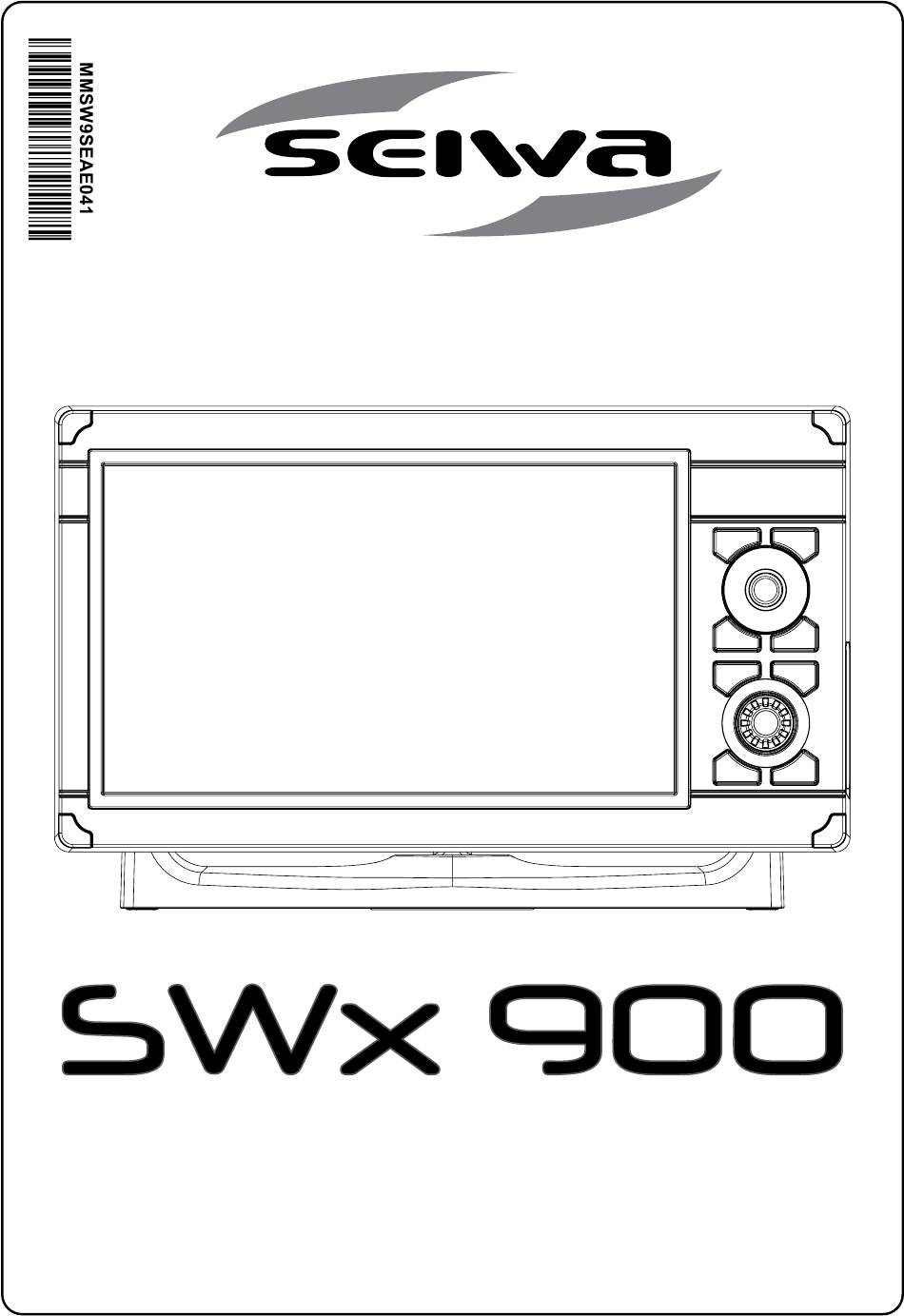

  • Page 1 INSTALLATION MANUAL...
  • Page 2: Product Description

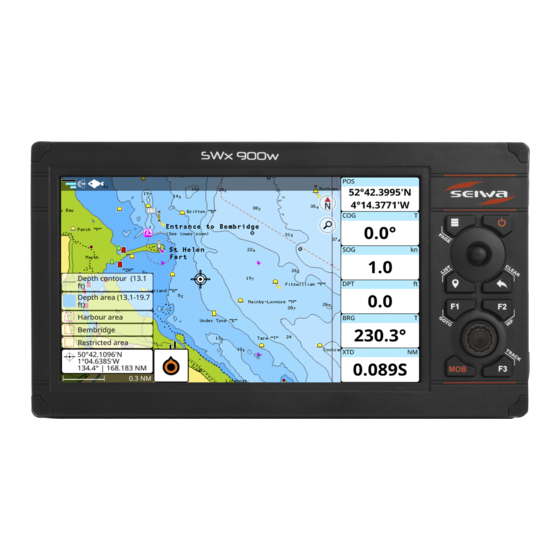

    1. Product description The SWx 900 Chartplotter series features a 9” marine navigation system with SEIWA ROMEO software. The series includes two versions: SWx 900w and SWx 900cw with WiFi and CHIRP echosounder/fishfinder. 1.1 Content of the package • SWx 900w / SWx 900cw •...
  • Page 3: Panel Mount

    3.2 Panel mount 260 mm [10.2”] 136 mm [5.3”] 141 mm [5.5”] 265 mm [10.4”] 4 holes Ø 5 mm [0.2”] 3.3 How to insert the MicroSD 4. Connections scheme NMEA 2000 Connector GPS Connector (Port C) FUNCTION FUNCTION POWER OUTPUT + (10-35 Vdc) NOT CONNECT OUTPUT C POWER +...
  • Page 4 4.1 Power supply connection POWER & I/O CABLE Wire Color Function Black PWR-/GND POWER INPUT + (10-35 Vdc) 3.15A FUSE 4.2 Autopilot connections Autopilot on Port A POWER & I/O CABLE Wire Color Function Black PWR-/GND POWER INPUT + (10-35 Vdc) COMMON AUTOPILOT Green...
  • Page 5 4.3 External alarm connection POWER & I/O CABLE Wire Color Function Black PWR-/GND PWR + (10-35 Vdc) 3.15A FUSE Blue OUTPUT EXTERNAL ALARM (Open Collector) NOTE: Current MAX 300 mA. 4.4 NMEA0183 connections External NMEA on Port A POWER & I/O CABLE Wire Color Function Black...
  • Page 6 5. Keyboard The joystick can move the cursor around the map or through menu items. Press [UP], [DOWN], [LEFT] or [RIGHT]. Each button – except for MOB – can perform two functions: a short press performs the function labeled on the button; a long press (hold) executes the second function labeled on the unit face (for Power key is the opposite).
  • Page 7: Fcc Compliance

    6. Product conformity information 6.1 FCC compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 8: Safety Information

    It is highly recommended that the installation of the product will be performed by a qualified maintenance technician. Consult the Installation manual for a correct installation procedure. AvMap Srl Viale Zaccagna 6, 54033 Carrara (MS), Italy seiwa-marine.com service@seiwa-marine.com...

This manual is also suitable for:

Swx 900wSwx 900cwP3mr200wseP3cr200wse
