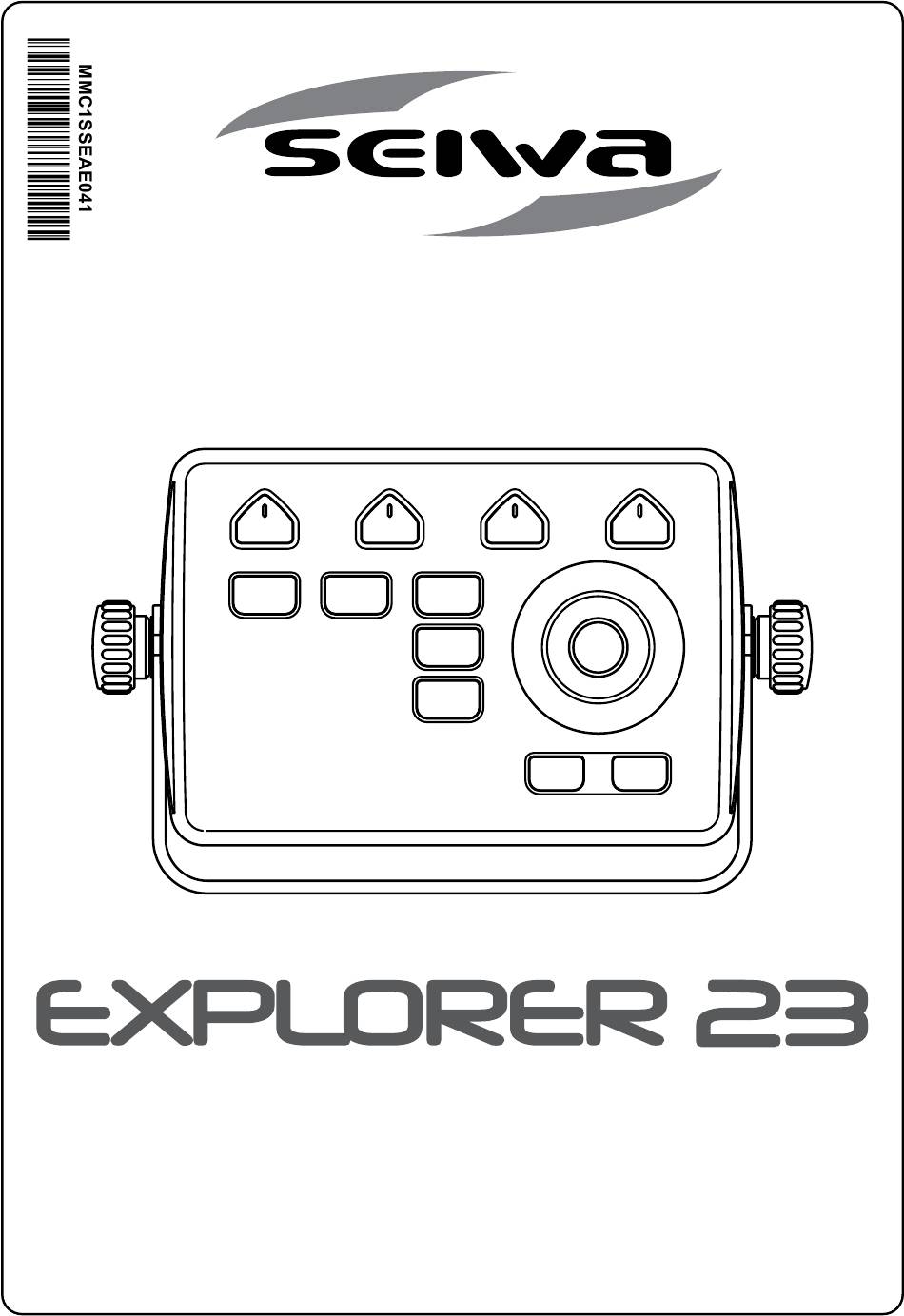

- Page 1 INSTALLATION MANUAL...

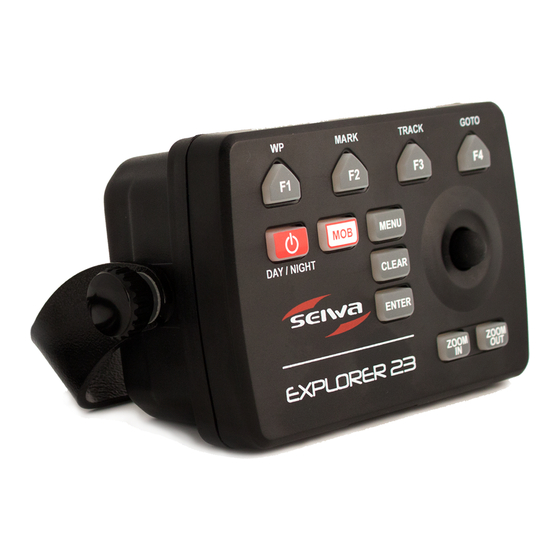

- Page 2 1. Product description EXPLORER 23 includes chartplotter and multifunction controller in a compact, robust blackbox designed for fishermen. EXPLORER 23 must be connected to an external monitor. It is available in two versions: EXPLORER 23 and EXPLORER 23 WiFi. 1.1 Content of the package •...
- Page 3 3.2 Panel Mount 3.3 How to insert the MicroSD 4. Connections scheme NMEA 2000 Connector FUNCTION NOT CONNECT POWER + POWER - SIGNAL H SIGNAL L HDMI OUT Power & I/O Connector (Port A and C) GPS Connector (Port B) FUNCTION FUNCTION PWR-/GND...
- Page 4 4.1 Power supply connection POWER & I/O CABLE Wire Color Function Black PWR-/GND FUSE 1A POWER INPUT + (10-35 Vdc) FUSE 1A 4.2 Autopilot connections Autopilot on Port A POWER & I/O CABLE Wire Color Function Black PWR-/GND POWER INPUT + (10-35 Vdc) COMMON Green COMMON...
- Page 5 4.3 External alarm connection POWER & I/O CABLE Wire Color Function Black PWR-/GND FUSE 1A PWR + (10-35 Vdc) Blue OUTPUT EXTERNAL ALARM (Open Collector) NOTE: Current MAX 300 mA 4.4 NMEA0183 connections External NMEA on Port A POWER & I/O CABLE Wire Color Function Black...
- Page 6 5. Keyboard The joystick can move the cursor around the map or through menu items. Press [UP], [DOWN], [LEFT] or [RIGHT]. [ZOOM OUT] Change the scale of the map zooming out. [ZOOM IN] Change the scale of the map zooming in. [ENTER] Push it to confirm your choice.
- Page 7 Explorer 23 WiFi P3MC100WSE Remote control receiver: FCC ID: CU9- P3MC1000 Certified components WiFi and BT module (EXPLORER 23 WiFi only): FCC ID: T7V-9028 This device complies with part 15 of the FCC Rules. Operation is subject to the Applicable compliance...
- Page 8 Hereby, AvMap Srlu, Viale Zaccagna 6, 54033 Carrara (MS), Italy declares that the radio equipment in the following table is in compliance with the relevant statutory requirements: Explorer 23 P3MC1000SE Explorer 23 WiFi P3MC100WSE the full text of the UKCA declaration of conformity is available at the following internet address: eudeclaration.avmap.it 7.
