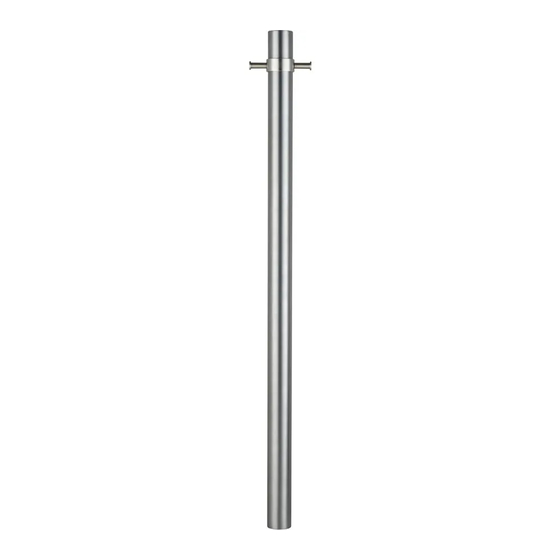

Innova HR1000V Installation Manual

132mm
1000mm
120mm
132mm
Please note that this appliance MUST be installed as prescribed by the relevant wiring rules and
regulations,including the regulations covering installation of appliances and accessories in 'wet
areas' such as bathrooms, showers and laundries.
NOTE:
1.This class l appliance require an earth connection.
2.Please ensure this device is installed, connected and working. In order to avoid hazards for young
children, this appliance should be installed so that the lowest rail is at least 600mm above the floor.
This appliance MUST be installed by a licence electrician.
3.DO NOT install towel rails in areas which maybe subjected to saturation of water resulting in ingress
of moisture.
4.If the product is abnormal and cannot be used normally,please immediately cut o ffthe power supply
and contact the after-sales sta fffor inspection and maintenance.

PRODUCT ACCESSORIES LIST

A1 spigot X1 A2 spigot X1
Self-tapping
screw
X2 Anchor X2
Hexagon socket Small hexagon
screw wrench
X3 X1
120mm
Hook ring X1
X2
Bracket
Hook X2
round head
screw
X2
HEATED TOWER RAIL
Installation Guide
ITEM NO.
WIDTH:
HEIGHT:
DEPTH:
POWER:
WARRANTY:
VOLTAGE:
A1
A2
HR1000V / HR1000V BK
132MM
1000MM
120MM
36W
5 YEARS
220-240V
