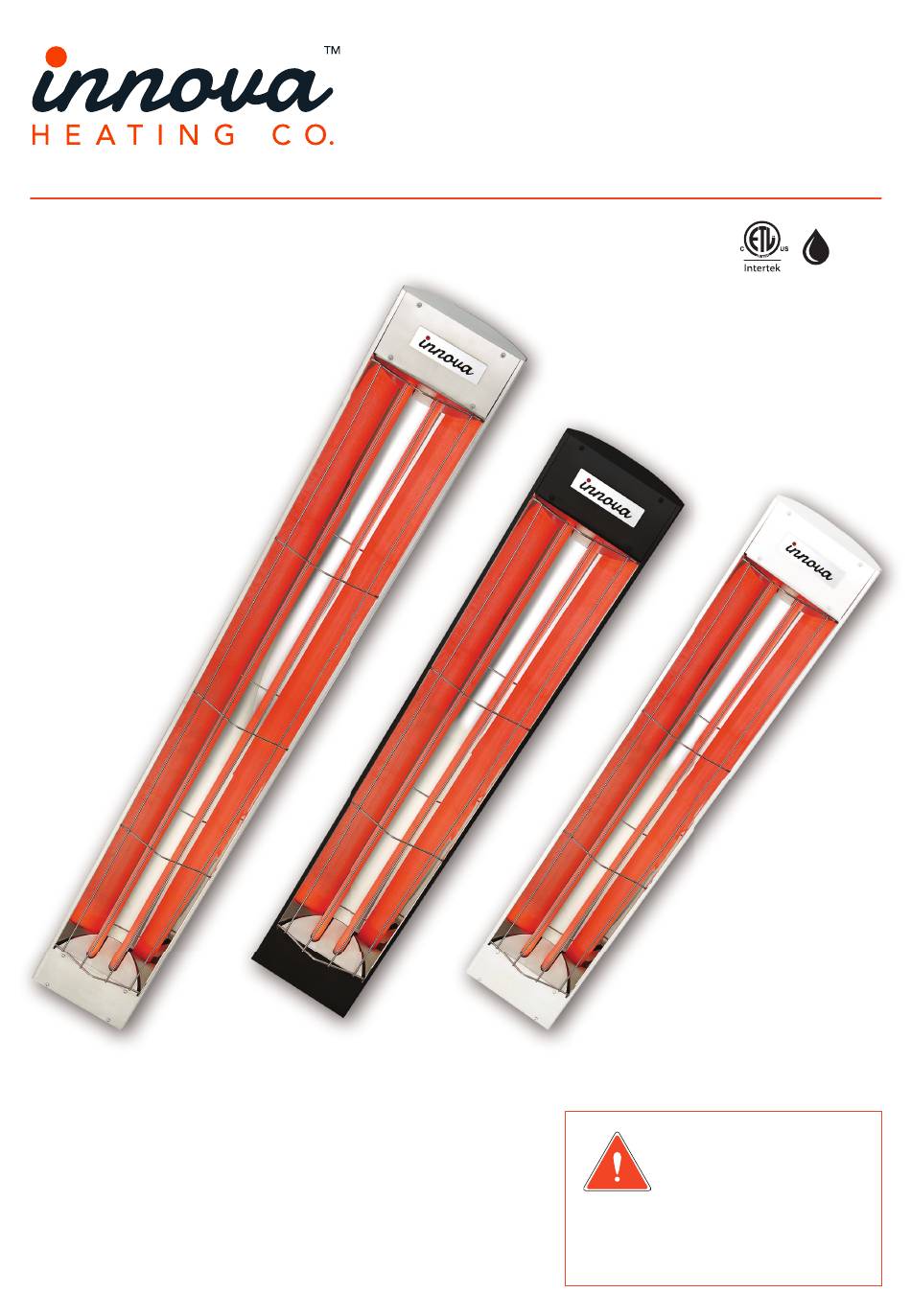

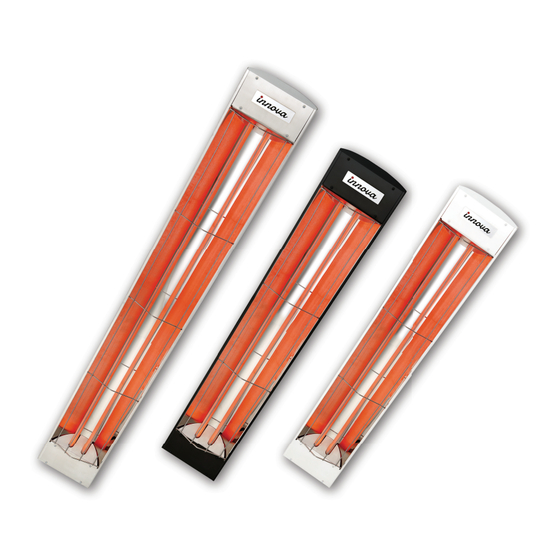

- Page 1 FOR MODELS: EF40, EF50, EF60 INSTALLATION, INSTRUCTION & SERVICE MANUAL IPX4 PLEASE SAVE THIS MANUAL FOR FUTURE REFERENCE. READ THIS MANUAL CAREFULLY. SEE INSIDE COVER FOR IMPORTANT INFORMATION ABOUT THIS MANUAL. KEEP INSTRUCTION WITH APPLIANCE FOR FUTURE REFERENCE. Version 20210714...
- Page 2 Note: Innova Heating Co. reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Innova Heating. IPX4 www.InnovaHeatingCo.com...
-
Page 3: Table Of Contents
Contents Contents WARNINGS ..................Page 6 APPLICABLE CODES & STANDARDS ..........Page 8 TECHNICAL SPECIFICATIONS ............Page 8 IMPORTANT INSTRUCTIONS ............. Page 9 SAFETY INSTRUCTIONS ..............Page 9 ELECTRICAL INSTALLATIONS ............Page 10 CLEARANCE TO COMBUSTIBLES............Page 11 CEILING MOUNT ................Page 12 WALL MOUNT ................... -
Page 4: Warnings
Warnings Warnings PLEASE READ ALL INSTRUCTIONS PRIOR TO INSTALLING OR USING HEATER. GOOD WARNING This unit may cause a shock or possible ignition if service is attempted without first disconnecting its power source. KNOW! The heater should only be used as described in this manual. Any use not recommended Keep electrical cords, drapery, furnishings and other combustible by the manufacturer may result in fire, electric shock, or personal injury. -
Page 5: Applicable Codes & Standards
Electrical Code, NFPA 70, or the Canadian Electrical Code, Part 1, C22.1. shock, and injury to persons, including the following: Innova Heaters are designed and manufactured for residential / commercial heating applications for indoor and 1. Read all instructions before installing or using this heater. -
Page 6: Electrical Installations
/ PARA INSTALAR UN CALEFACTOR CON DOS ELEMENTOS to 12" (30.4 cm) 6ft. Objects below (183 cm) WIRING DIAGRAM USING heater MIN 30º INNOVA HEATING CO. Brass Screw MAX 60º DUPLEX SWITCH FLOOR Black Screw Connect A1 and B1 MODELS EFSWP AND to Black lead wires... -
Page 7: Ceiling Mount
Ceiling Mount Wall Mount C E I L I N G M O U N T A P P L I C A T I O N Optional Chain Mounted (not included) 30° 30° Install downwards only Rotatable on both ends. 60°... -
Page 8: Flush Mount
Flush Mount Installing Quartz Element 2 x 8 STUDS MINIMUM OPEN INSERT ELEMENT ELEMENTS F L U S H M O U N T A P P L I C A T I O N LOCK INTO BRACKET SUPPORT BRACKET Loosen screw Insert... -
Page 9: Maintenance Instructions
2. Always inspect the heater after high winds, earthquake, vandalism or any other unusual event that may have affected the • Innova Heaters are furnished with wall/ceiling mount swivel brackets. If the heater is hung with chains, heater. Ensure all parts are dry before powering the heater. -
Page 10: Manufacturer Warranty
Tel: 1.800.660.5391 | www.innovaheatingco.com year of use from date of original purchase. At our option, Innova Heating Co. may offer to rebuild or replace the heater within the limited warranty period. Installation, use and maintenance must be in accordance with instructions contained in the Installation Instructions. - Page 11 Postage Here www.InnovaHeatingCo.com 33 West Beaver Creek Road, Richmond Hill, ON L4B 1L8 Canada info@InnovaHeatingCo.com 1-800-660-5391 T. 905.695.2055 33 West Beaver Creek, F. 905.695.2056 Richmond Hill, ON L4B 1L8...
