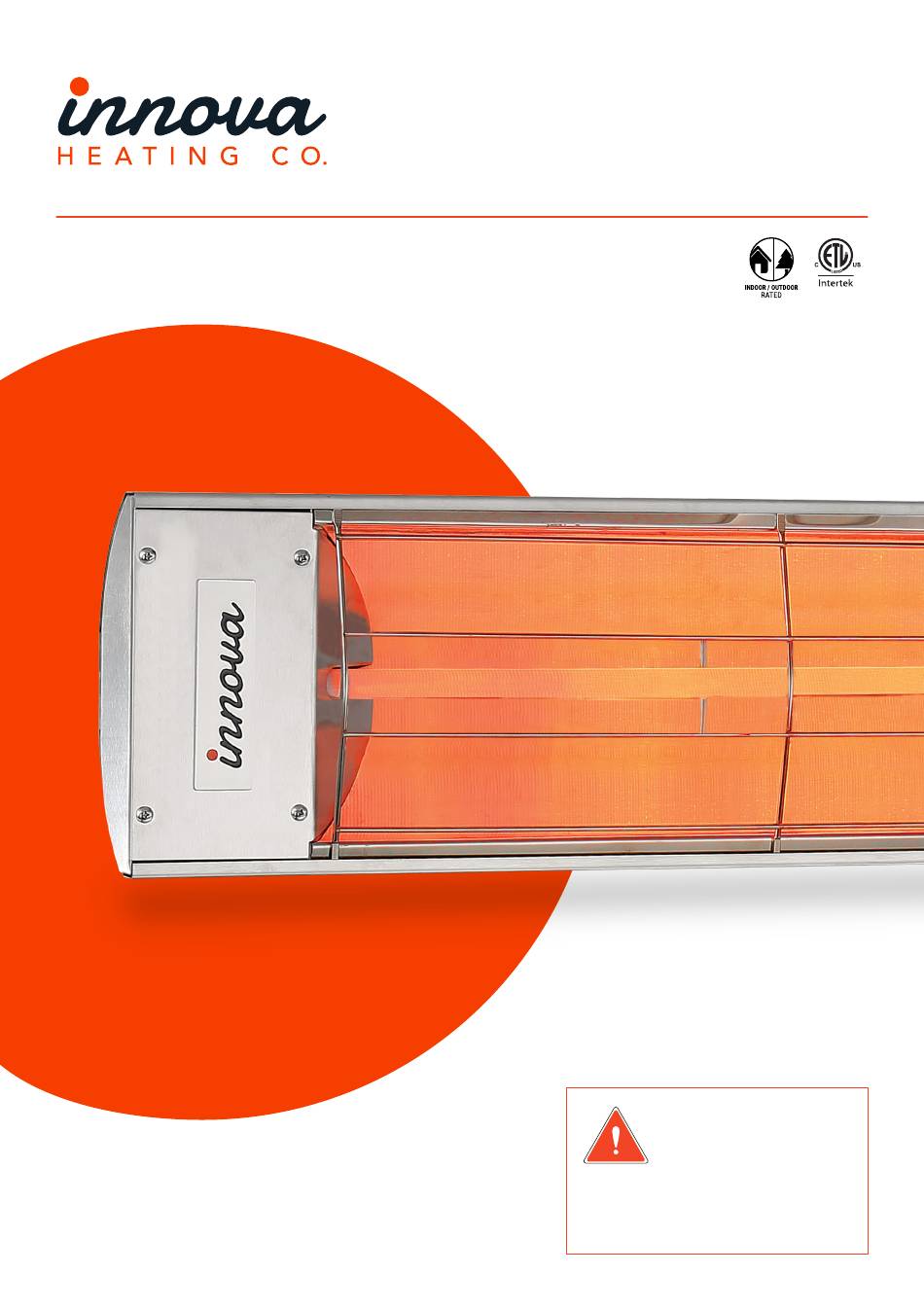

- Page 1 FOR MODELS: EF15, EF17, EF18, EF19 INSTALLATION, INSTRUCTION & SERVICE MANUAL PLEASE SAVE THIS MANUAL FOR FUTURE REFERENCE. READ THIS MANUAL CAREFULLY. SEE INSIDE COVER FOR IMPORTANT INFORMATION ABOUT THIS MANUAL. KEEP INSTRUCTION WITH APPLIANCE FOR FUTURE REFERENCE. Version 2022705...
- Page 2 Note: Innova Heating Co. reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form without prior written consent from Innova Heating. www.InnovaHeatingCo.com...
-
Page 3: Table Of Contents
Contents Contents WARNINGS ..................Page 4 OVERVIEW ..................Page 6 APPLICABLE CODES & STANDARDS ..........Page 7 TECHNICAL SPECIFICATIONS ............Page 7 ELECTRICAL INSTALLATIONS ............Page 8 MOUNTING HEIGHT / CLEARANCES ..........Page 9 CEILING MOUNT, WALL MOUNT, FLUSH MOUNT ......Page 10 INSTALLING QUARTZ ELEMENT ............ -
Page 4: Warnings
Warnings PLEASE READ ALL INSTRUCTIONS PRIOR GOOD TO INSTALLING OR USING HEATER. This unit may cause a shock or possible ignition if service is attempted without first disconnecting its power source. KNOW! Keep electrical cords, drapery, furnishings and other combustible materials at least 3.3ft (1m) from the heater’s front fascia and keep them For optimal heater away from the two sides and rear. - Page 5 Warnings WARNING The heater should only be used as described in this manual. Any use not recommended by the manufacturer may result in fire, electric shock, or personal injury. INSTALLATIONS: Read and understand the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
-
Page 6: Overview

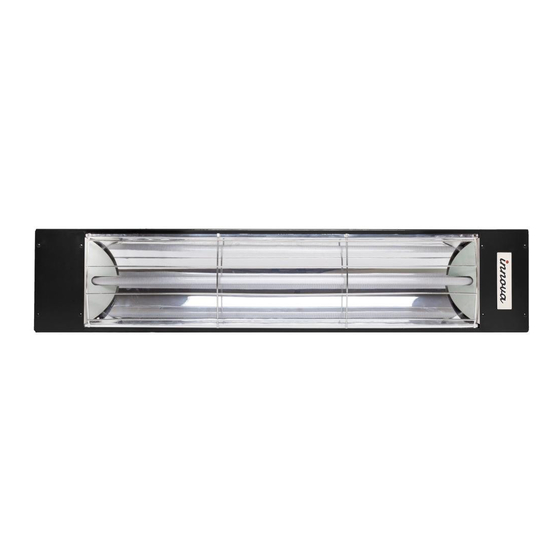

Overview Standard Grill Heater Body Quartz Element What’s in the box? Please inspect that all parts are included in the package. Element (x1) Parts Bag: Instruction Manual (x1) Outer Nut (x2) Mounting Brackets (x2) Washers (x2) www.InnovaHeatingCo.com... -
Page 7: Applicable Codes & Standards
Electrical Code, Part 1, C22.1, and any applicable local codes. Innova Heaters are designed and manufactured for residential / commercial heating applications for indoor and outdoor use, in accordance with the Standard for Fixed and Location-Dedicated Electric Room Heaters, UL 2021, and the Canadian Standard for Electric Air Heaters, CSA C22.2 No. -
Page 8: Electrical Installations
Read and follow installation requirements outlined in this manual. The Appliance MUST be connected to a properly grounded electrical source. WIRING DIAGRAM (For hard-wired application) EARTH 120 V AC EF15, EF17,EF18 AND EF19 WIRE MODELS Junction Box HEATING ELEMENT... -
Page 9: Mounting Height / Clearances
Mounting Height / Clearances 1. The minimum installation height from the floor to the heater shall be: 6ft (183 cm) American Standard, 8ft (244 cm) Canadian Standard 2. The minimum clearances from the ceiling, walls and other objects are shown in the pictures below. 4. -
Page 10: Ceiling Mount, Wall Mount, Flush Mount
Ceiling Mount C E I L I N G M O U N T A P P L I C AT I O N WA L L M O U N T A P P L I C AT I O N Optional Chain Mounted (not included) 30°... -
Page 11: Installing Quartz Element
Installing Quartz Element OPEN INSERT ELEMENT ELEMENTS LOCK INTO BRACKET SUPPORT BRACKET Open Lock Bracket to insert Loosen Quartz screw Element to open (x1) Lock Bracket CLOSE ELEMENT LOCK BRACKET Tighten screw once closed to secure the Quartz Element TIGHTEN OUTER HEX NUT, LOCK WASHER AND LEAD WIRE RING TERMINAL TO THE THREADED STUD Threaded Stud Lead Wire Ring Terminal Lock Washer... -
Page 12: Maintenance Instructions
Maintenance Instructions Before cleaning, make sure the power has been turned off at the circuit breaker panel and that the heating element of the heater is cool. Never immerse the appliance in water or any other liquid. Cleaning and maintenance must be performed by the user and not by unsupervised children. -
Page 13: Replacement Parts
EF15120B General Notes • Innova Heaters are furnished with wall/ceiling mount swivel brackets. If the heater is hung with chains, special bracketing, or installing with a frame, these brackets can be discarded. • For pricing and a full list of models with descriptions and voltages, please see product brochures. -
Page 14: Manufacturer Warranty
Innova Heating Co. (warrantor) will furnish the original owner replacement parts for any component part which fails before three years of use from date of original purchase. At our option, Innova Heating Co. may offer to rebuild or replace the heater within the limited warranty period. - Page 15 www.InnovaHeatingCo.com...
- Page 16 Innova WARRANTY REGISTRATION Customer Name: Address: City: State/Province: Zip/Postal Code: Country: Phone: Model #: Serial No.#: Dealer’s Name: Date Purchased: Dealer’s Address: This Warranty Registration Card must be returned within 30 days of purchase to properly activate your warranty. This information is for our internal use only.
- Page 17 www.InnovaHeatingCo.com...
- Page 18 Postage Here www.InnovaHeatingCo.com 33 West Beaver Creek Road, Richmond Hill, ON L4B 1L8 Canada info@InnovaHeatingCo.com 1-800-660-5391 T. 905.695.2055 33 West Beaver Creek, F. 905.695.2056 Richmond Hill, ON L4B 1L8...
