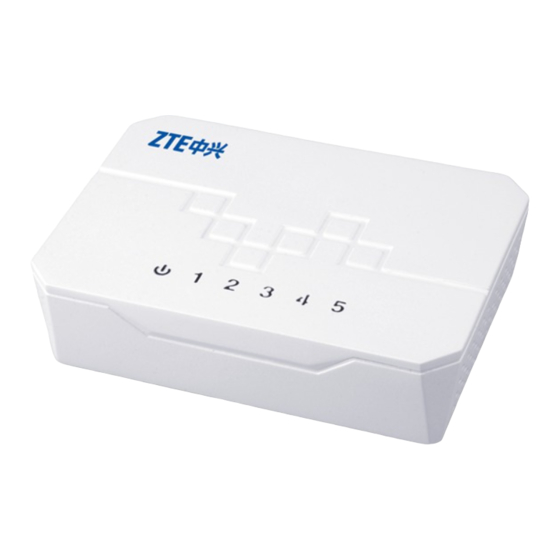

- Page 2 1 概述 ZXR10 1150-5T 提供 5 路百兆普通以太网业务交换功能。采用 迷你机型，外型小巧，结构紧凑，集成度高。 1.1 系统特性 符合 IEEE802.3，IEEE802.3u 和 IEEE802.3x 标准 存储/转发工作模式 免管理配置，即插即用 完全符合欧盟的 RoHS 2002/95/EC 标准 2 技术指标 2.1 环境要求 整机工作环境温度范围宽，能在恶劣环境下正常、稳定地工作。 工作温度：0℃～40℃ 储存温度：-10℃～70℃ 相对湿度：10%～90%（非凝结） 2.2 电源接口 电源输入：5V DC，600mA 电源适配器...
- Page 3 灭 该 LAN 口没有连接 后面板各接口说明见下表。 接口 功能 连接 5V DC，600mA 的电源适配器 Power 5 路 RJ-45 以太网接口,每个端口为 10/100M 自适应传输模 5/4/3/2/1 式 ZXR10 1150-5T 的插墙式适配器外观如图所示 ZXR10 1150-5T 的插墙式适配器型号和规格参见下表 项目 描述 10A 国标 2 扁公插头 端子型号 DC 头 5.5*2.1mm 电源线型号 26AWG L=1.5M 中兴通讯政企网客服中心 800 服务热线：...
- Page 4 Management-free, PNP Conform to RoHS 2002/95/EC 2 Technical Indexes 2.1 Environment Requirements The ZXR10 1150-5T operates stably under a wide range of temperatures. Operating temperature: 0℃ ~ 40℃/32℉ ~ 104℉ Storage temperature: -10℃ ~ 70℃/14℉ ~ 158℉...
- Page 5 The ZXR10 1150-5T has 6 LED indicators as described in the following table. Indicator Color Status Description Device powered on Power Green Device powered off LAN port in 10/100M connection Data being 5/4/3/2/1 Green Blinking transmitted via LAN port LAN port disconnected Interfaces on the rear panel are described in the following table.
- Page 6 The wall-mounted adapter of ZXR10 1150-5T is as shown in the following figure. The specifications of ZXR10 1150-5T are described in the following table. Item Description 6A, European standard, 2 round pins, male connector Terminal type DC head 5.5*2.1mm Power cord type 26AWG, L=1.5M...
- Page 7 The wall-mounted adapter of ZXR10 1150-5T is as shown in the following figure. The specifications of ZXR10 1150-5T are described in the following table. Item Description 13A, British standard, 3 flat pins, male connector Terminal type DC head 5.5*2.1mm Power cord type 26AWG, L=1.5M...
