Level Plus
Magnetostrictive Liquid-Level Transmitters
with Temposonics

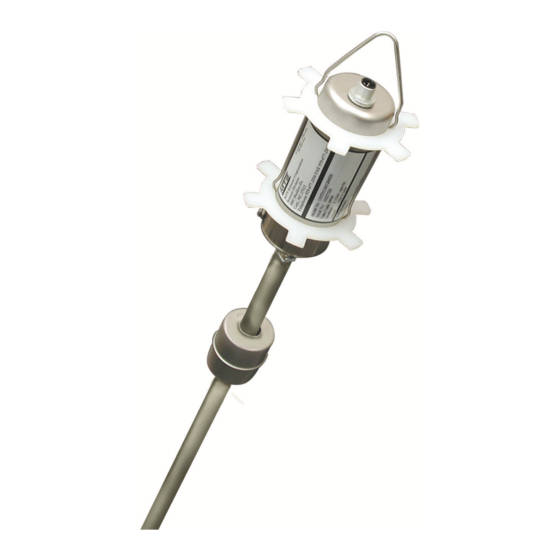

OPERATION AND INSTALLATION MANUAL
M-Series Model USTD II Digital Transmitter
®
Technology
®
The Measurable Difference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Level Plus M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MTS Sensors Level Plus M Series

  • Page 1 Level Plus ® Magnetostrictive Liquid-Level Transmitters with Temposonics Technology ® OPERATION AND INSTALLATION MANUAL M-Series Model USTD II Digital Transmitter The Measurable Difference...
  • Page 3: Contact Information

    The parties expressly agree that the purchase and use of Material and/ Tel: +1-800-457-6620 or Services from MTS Sensors Division are subject to MTS’ Terms Fax: +1-800-498-4442 and Conditions, in effect as of the date of this document, which are E-mail: orders@mts.com...
  • Page 4: Reference Information

    You can get the latest ordering information and software updates by visiting www.mtssensors.com website General contact information, shipping and office hours are available on page i. Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 5: Table Of Contents

    Tree ..................11 Daisy chain ................11 Recommended cable types ........... 11 Grounding ............... 12 Safety barriers ............12 Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 6: Introduction

    • Building Level Plus M-Series model numbers • Latest documentation releases • Detailed ordering information • Latest software updates Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 7: Terms And Definitions Reference

    Specific Gravity – The density ratio of a liquid to the density of water at the same conditions. Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 8: Product Overview

    (0.63 in.) dia Measuring range 51 mm 32.2 mm (2 in.) (1.25 in.) Mounting zone Inactive zone Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 9: Outer Pipe Configurations

    (1.25 in.) Inactive zone Mounting zone Figure 1 5/8 in. diameter rigid outer pipe of 316L stainless steel Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 10: Floats

    A Material Safety Data Sheet (MSDS) must also accompany the Material Authorization (RMA) information if required. transmitter that was used in any process. Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 11: Model Number Identification

    5 m straight connector cable (ATEX) 402486 2 m straight connector cable (FM) 530049 2 m 90° connector cable (FM) 370481 Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 12: Product Specifications

    Anywhere within the active length Span adjust Full scale to 152 mm (6 in.) from zero range: Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 13: Installation And Mounting

    5. Pull the transmitter upward so the end plug is just resting on the floor of the tank. Tighten the adjustable fitting to hold the transmitter in place. 6. Connect wire and cable accordingly. Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 14: Mounting

    Average and individual temperature measurement from five positions are included. Figure 3. External mounting example Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 15: Internal Mounting

    98 mm (3.87 in.) Measuring range Stainless-steel Rigid pipe Inactive Zone 32 mm (1.25 in.) Figure 4. Internal mounting example Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 16: Electrical Connections And Wiring Procedures

    Listed below are general requirements of cable types for the Level Plus Model USTD II digital transmitter. Cable recommendation: Figure 5. Point-to-point topology Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 17: Grounding

    70 mW 1156Ω 764+ 12 Vdc 24 mA 72 mW 1075Ω Table 3. Communication lines (TX/RX+ and TX/RX-) Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 18: Maintenance And Field Service

    Model USTD II Operation and Installation Manual Maintenance and Field Service Maintenance and field service This section contains information about post installation maintenance and provides an overview of MTS Sensors’ repair and replacement procedures. General maintenance and field service requirements Notes: Please contact Technical Support or Customer Service for help when damage occurs in order to obtain a return materials authorization (RMA) number.
  • Page 19: Troubleshooting

    12. Verify communications with the host system (repeat step 5). 13. Calibrate current tank level (optional). Setup is complete. Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 20: Dda User Interface

    (C0 4F) and uses this to program the desired address. Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 21: Ustd Ii Command Set

    Set offset for float c C0 57 “STX c : d d d d . d d d ETX” Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 22: Ustd Ii Error Codes

    A DT is shorted or open or has been set to ‘not active’. E201 No DT’s programmed DT’s are not active or there are no DT’s. Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 23: Digital Setup Software Installation, Setup And Calibration

    Figure 11. Calibrate - Enter float zero positions Figure 9. Data from device tab Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 24 ‘Gain, SARA Blanking and Magnet blanking’ from this menu. These parameters are password protected, changes will Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 25: Agency Information

    Ta = -20° C to +80° C GB3836.4-2010 Ex ia IIC T4 Ga Ta = -40° C to +71° C Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 26: Hazardous Area Installation

    Model USTD II Digital Operation and Installation Manual Agency Information Hazardous area installation Ground Figure 16. USTD II installation drawing Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 27: Notes

    Earth ground Blue TXD RXD + Orange TXD RXD - Figure 17. USTD II housing with connector Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 28: Labels

    Vmax: 28V, I max: 200 mA, Ci = 0 F Li = 0 H Figure 18. Label for model USTDII_ _ _ _ _HS, AS Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 29: Atex

    Ground NON HAZARDOUS AREA SEE NOTE 6 TANKSIDE EARTH GROUND Figure 19. ATEX for DDA installation drawing Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 30: Notes

    Earth ground Brown TXD RXD + White TXD RXD - Figure 20. USTD II housing with connector Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 31: Labels

    Im: 200 mA Li: 0mF Figure 21. Label for USTDII _ _ _ _ _ 69, 67 Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 32: Nepsi

    Model USTD II Digital Operation and Installation Manual Agency Information NEPSI INSTALLATION DRAWING Ground Figure 22. NEPSI Installation drawing Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 33: Notes

    Earth ground Blue TXD RXD + Orange TXD RXD - Figure 23. NEPSI Wiring Figure 23. NEPSI Wiring Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 34: Labels

    PRODUCT LABEL 5,070,485; 5,367,255; 5,334,933; 5,311,124; 5,587,680; 5,848,549; 4,952,873; 5,545,984; 5,590,091; 5,736,855 Figure 24. NEPSI Product label Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 35: Fm Certificate

    Model USTD II Operation and Installation Manual Agency Information, FM Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 36 Model USTD II Operation and Installation Manual Agency Information, FM Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 37 Model USTD II Operation and Installation Manual Agency Information, FM Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 38 Model USTD II Operation and Installation Manual Agency Information, FM Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 39: Atex Certificate

    Model USTD II Digital Operation and Installation Manual Agency Information, ATEX Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 40 Model USTD II Operation and Installation Manual Agency Information, ATEX Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 41 Model USTD II Operation and Installation Manual Agency Information, ATEX Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter MTS Sensors Operation and Installation Manual, Document Number 550980 Revision F, 02/2016...
  • Page 42: Nepsi Certificates

    Model USTD II Operation and Installation Manual Agency Information, NEPSI EX Approval Level Plus ® Liquid-Level Sensors M-Series Model USTD II Digital Transmitter Operation and Installation Manual, Document Number 550980 Revision F, 02/2016 MTS Sensors...
  • Page 44 All specifications are subject to change. Contact MTS for specifications and engineering drawings that are critical to your application. Drawings contained in this document are for reference only. Go to http://www.mtssensors.com for the latest product information. MTS Systems Corporation MTS Sensor Technologie MTS Sensors Technology Sensors Division Corporation GmbH & Co. KG ®...
