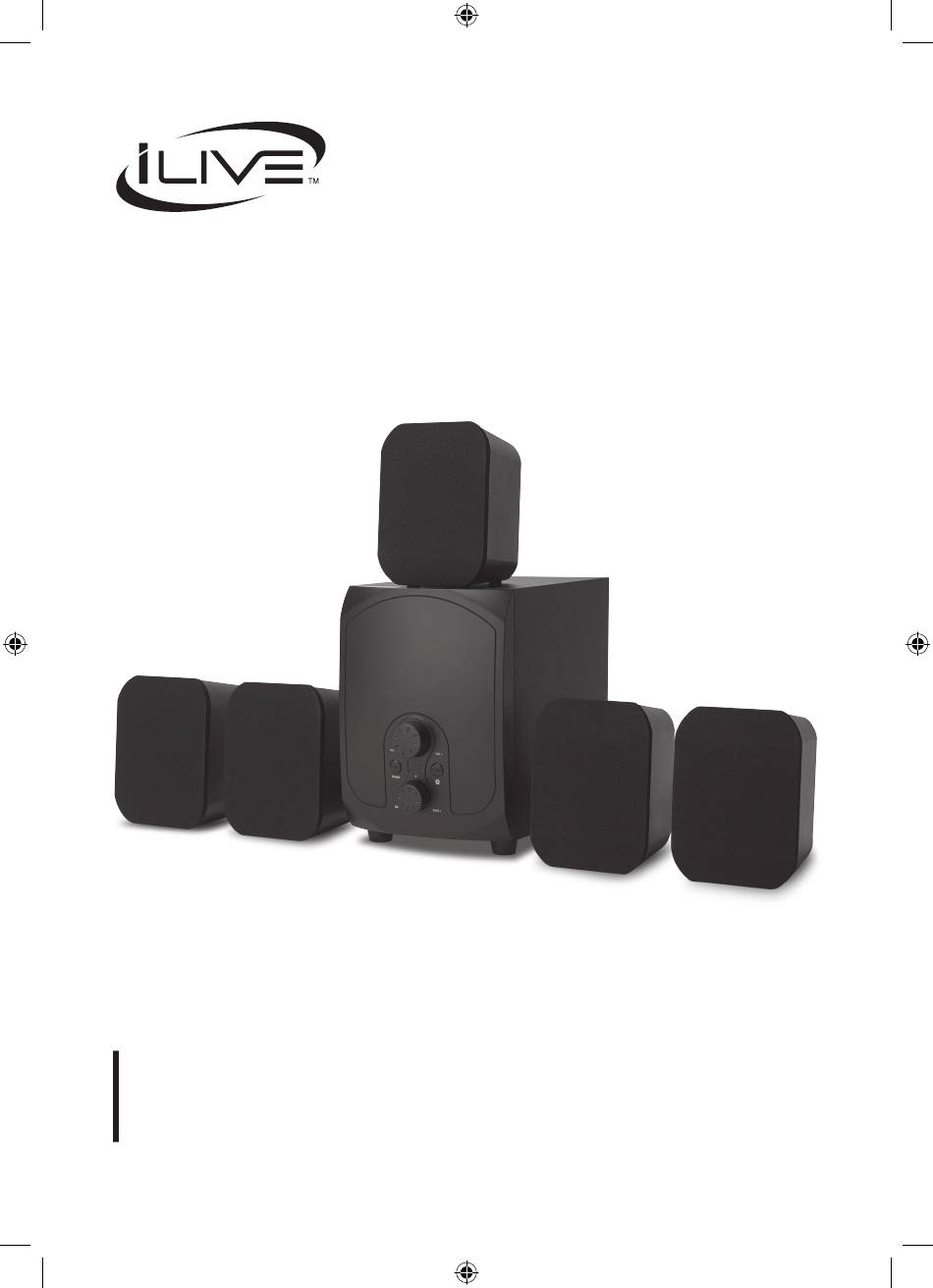

- Page 1 5.1 Home Theater System with Bluetooth User’s Guide for Model IHTB059B v2572-01 For the most up-to-date version of this User’s Guide, go to www.iliveelectronics.com IHTB059B-2572-01-IB.indd 1 17/08/2020 3:00:28 PM...
-
Page 2: Safety Instructions And Warnings
• Increase the separation between the equipment and receiver. plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point • Consult the dealer or an experienced radio/TV technician where they exit from the apparatus. for help. • Only use attachments/accessories specified by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. IHTB059B-2572-01-IB.indd 2 17/08/2020 3:00:29 PM... -
Page 3: Battery Warnings
Federal product guidelines. WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. • CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. • WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause. • WARNING: Shock hazard - Do Not Open. • Caution and marking information is located at the rear or bottom of the apparatus. • WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. • Objects filled with liquids, such as vases, shall not be placed on the apparatus. IHTB059B-2572-01-IB.indd 3 17/08/2020 3:00:29 PM... - Page 4 • 6, 5.1 surround sound audio inputs • 2 stereo audio inputs Includes • Subwoofer (main unit) • 5 wired satellite speakers • Remote control: requires CR2025 battery (included) • RCA stereo audio cable • AC/DC power adapter IHTB059B-2572-01-IB.indd 4 17/08/2020 3:00:29 PM...
- Page 5 Connect each speaker wire with the corresponding port on the rear of the subwoofer. Be sure to match the plugs to the correct port or the speakers will not function properly. AUX IN SPEAKER OUTPUT DC IN IHTB059B-2572-01-IB.indd 5 17/08/2020 3:00:30 PM...
-
Page 6: Subwoofer Front View
Speaker Status Indicator Light Power ON Red Light Bluetooth Pairing Rapid Flashing Blue Light Bluetooth Connected Solid Blue Light Aux In Slowly Fading Purple Light 5.1 Surround Sound Mode Solid Purple Light IHTB059B-2572-01-IB.indd 6 17/08/2020 3:00:30 PM... -
Page 7: Subwoofer Rear View
Subwoofer Rear View AUX IN Stereo Audio Inputs SPEAKER OUTPUT Audio Outputs (to speakers) DC IN DC Power Input IHTB059B-2572-01-IB.indd 7 17/08/2020 3:00:30 PM... -
Page 8: Remote Batteries
Press to adjust volume for 5.1CH individual speakers. Press to switch Volume-/+ to 5.1 Surround Sound Mode. Press to adjust volume for all speakers. Press to switch to Bluetooth Mode. Remote Batteries Requires 1 CR2025 battery (pre-installed). IHTB059B-2572-01-IB.indd 8 17/08/2020 3:00:31 PM... - Page 9 Bluetooth Mode. If your device should become unpaired or you find it is unable to connect, press & hold the Pair button to enter to Pairing Mode. The blue pairing indicator will flash quickly, a voice will announce, “Bluetooth is connecting,” and you can then connect to the speaker manually. IHTB059B-2572-01-IB.indd 9 17/08/2020 3:00:31 PM...
-
Page 10: Audio Inputs
5.1CH button on the remote. A voice prompt and a solid purple light will indicate that Surround Sound Mode has been selected. AUX IN SPEAKER OUTPUT Audio Input Audio Channel FL / FR Front Left / Front Right SL / SR Surround Left / Surround Right DC IN Center IHTB059B-2572-01-IB.indd 10 17/08/2020 3:00:31 PM... -
Page 11: Port Stereo Rca Inputs (Aux)
2. With the unit powered ON, select Aux Mode through the Source button on the subwoofer or through the Aux button on the remote. A voice prompt and a slowly fading purple light will indicate that Aux Mode has been selected. AUX IN SPEAKER OUTPUT DC IN IHTB059B-2572-01-IB.indd 11 17/08/2020 3:00:31 PM... - Page 12 Copyright © 2020 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice. IHTB059B-2572-01-IB.indd 12 17/08/2020 3:00:31 PM...
