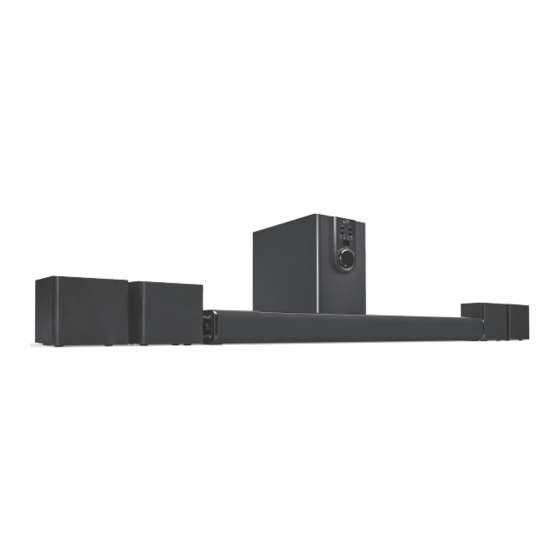

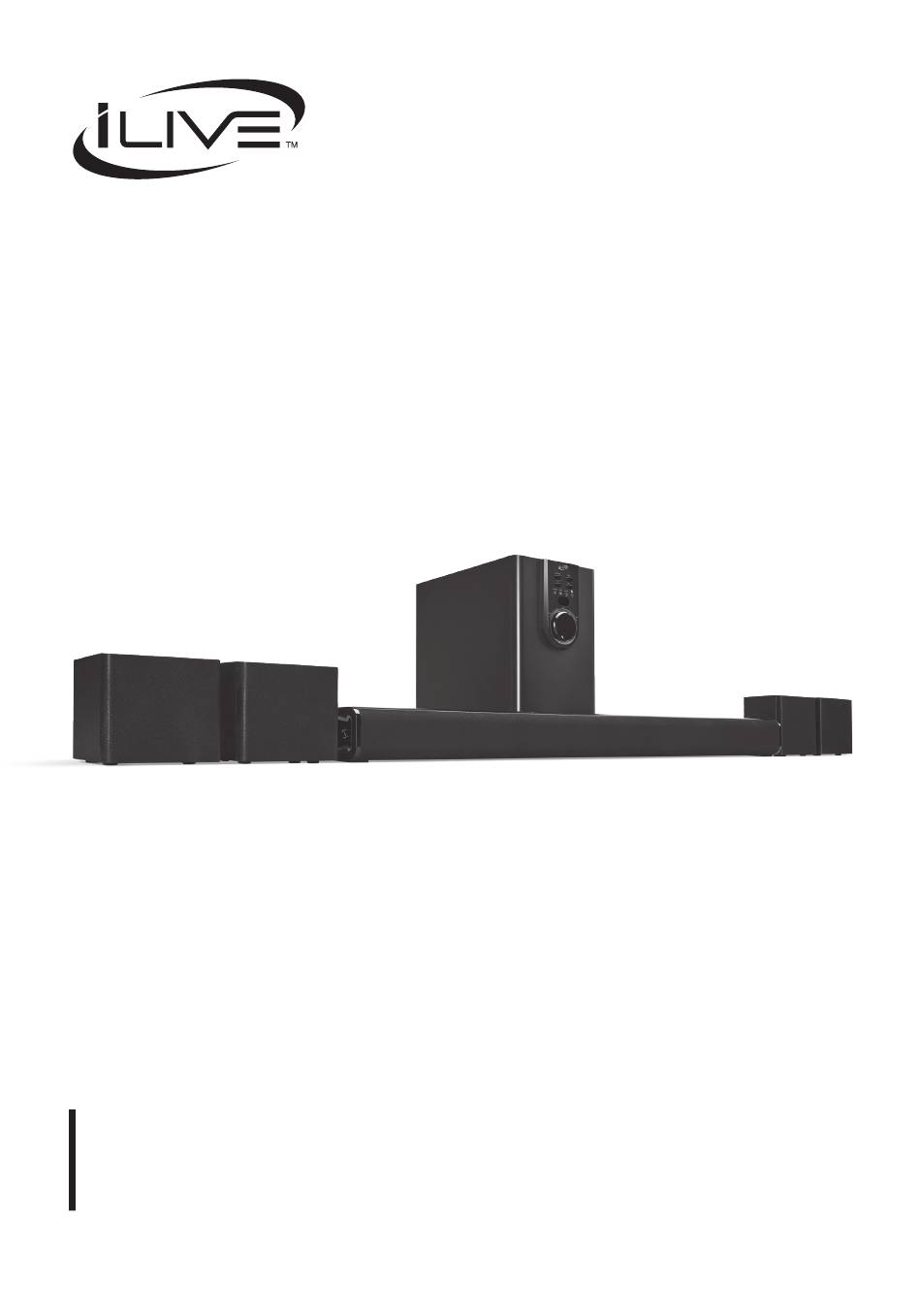

- Page 1 5.1 Home Theater System with Bluetooth User’s Guide for Model IHTB138 v1972-01 For the most up-to-date version of this User’s Guide, go to www.iliveelectronics.com...
- Page 2 Safety Instructions & Warnings Important Safety Instructions FCC Warnings • Read these Instructions. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the • Keep these Instructions. user’s authority to operate the equipment. •...
- Page 3 Battery Warnings WARNING: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN • WARNING: Do not ingest battery, Chemical Burn Hazard. user-serviceable parts inside. Refer servicing ATTENTION •...
-
Page 4: Table Of Contents
Table of Contents Setup ....................5 Features Includes Power... -
Page 5: Setup
Setup Features • Bluetooth Wireless - range 60 ft. • 6 5.1 surround sound audio inputs • 2 stereo audio inputs Includes • Subwoofer (main unit) • 26" central speaker with 4 satellite speakers • Remote control: requires CR2025 battery (included) •... -
Page 6: Orientation
Orientation Subwoofer Rear View Subwoofer Bass Tube NOTE: To reduce Stereo Audio unwanted vibration, Inputs (L, R) try placing the subwoofer on a solid or padded 5.1 Surround Sound surface, such as the Audio Inputs floor or carpet. (FL, FR, SL, SR, CEN, SUB) Audio Outputs (to speakers) Main Power Switch... -
Page 7: Subwoofer Front View
Subwoofer Front View Source Pair SOURCE PAIR Press to switch between Press to pair to a 5.1 CH, Aux In, and Bluetooth device. Bluetooth modes. LED Indicator Lights Skip Press to skip ahead or Remote Signal Receiver back an audio track (BLUETOOTH). -
Page 8: Remote
Remote Functions Note: When using the remote, be sure to aim at the remote signal receiver located on the front of the subwoofer. POWER MUTE Power Mute Press to power the Press to mute system ON or place it the volume. in Standby Mode. -
Page 9: Audio Inputs
Audio Inputs 2 Port Stereo RCA Inputs (Aux) If your TV, DVD, or other media player has a 3.5mm audio line output, use the top 2 audio inputs (Left/Right channel) on the rear of the subwoofer for stereo audio. While connected to the Aux inputs, the unit will send audio signal to all of it's speakers to simulate a surround sound effect. -
Page 10: Port 5.1 Surround Sound Rca Inputs (5.1 Ch)
Audio Inputs 6 Port 5.1 Surround Sound RCA Inputs (5.1 CH) To use the 5.1 input on this system will require a source (TV, DVD, Blu-Ray, or other media player) with 5.1 Surround Sound analog audio outputs. If your media source is so equipped, use the use the lower 6 audio inputs on the rear of the subwoofer. -
Page 11: Bluetooth Wireless
Bluetooth Wireless Pairing to a Bluetooth Device and Playing Audio Wirelessly After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat these steps. 1. -
Page 12: Customer Support
Customer Support Contact Information Made Website: www.iLiveElectronics.com Email Support: prodinfo@dpiinc.com Green Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 Warranty For Warranty Information and the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com International Support Protect for Today Sustain for Tomorrow To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com...
