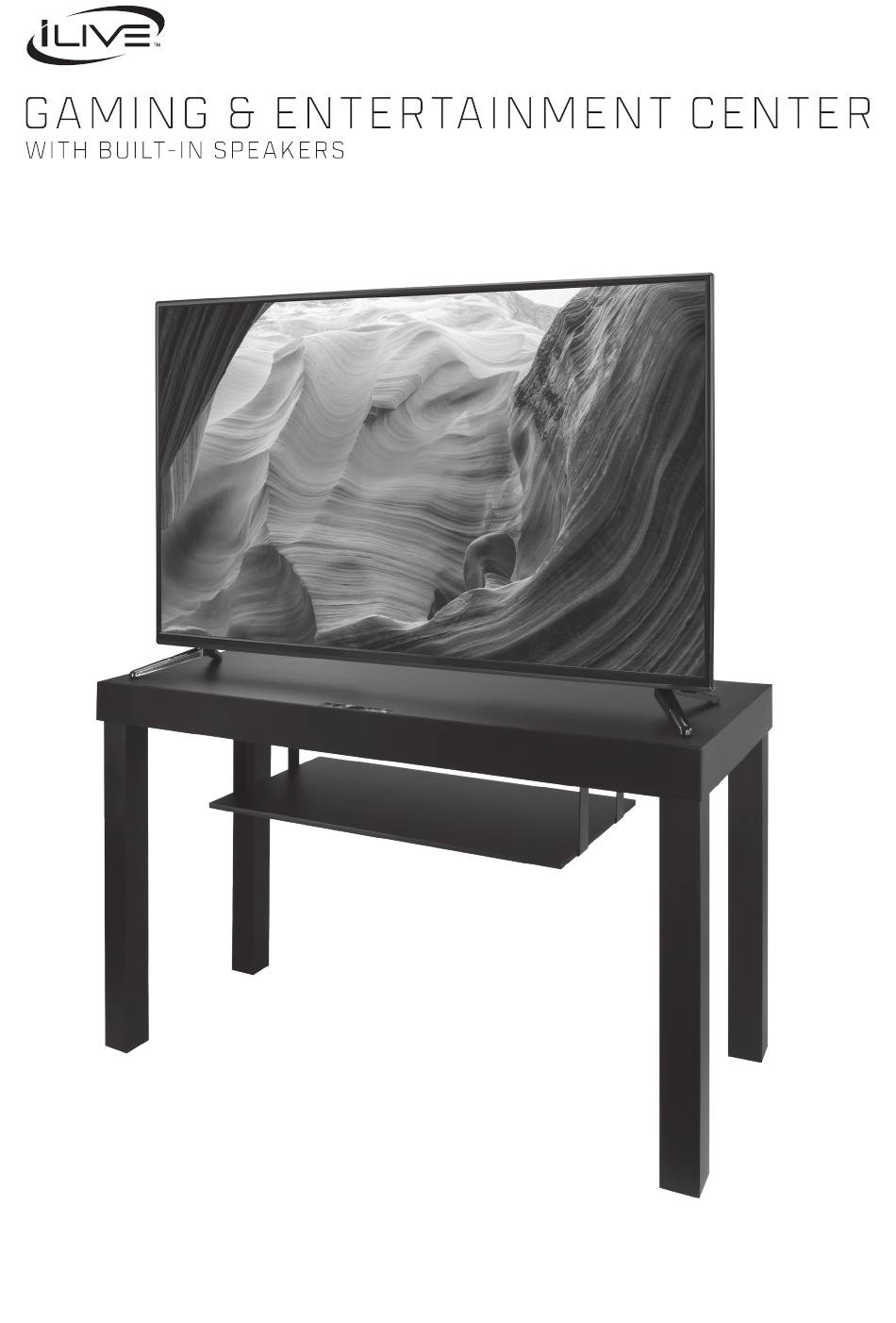

- Page 1 User’s Guide for Model ISBT789 v2282-01 For the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com *TV not included...
- Page 2 Safety Instructions & Warnings Important Safety Instructions WARNING: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN • Read these Instructions. user-serviceable parts inside. Refer servicing ATTENTION • Keep these Instructions. to qualified service personnel.
- Page 3 FCC Warnings • CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. approved by the party responsible for compliance could void the • Battery shall not be exposed to excessive heat such as user’s authority to operate the equipment.
-
Page 4: Table Of Contents
Table of Contents Setup Features & Specifications - 5 Power - 5 Includes - 5 Orientation Top & Front View - 6 Source Mode Indicator LED - 6 Speaker Controls (Top) - 7 Speaker Inputs (Rear) - 7 Remote Functions & Controls - 8 Remote Battery - 8 Connecting Devices Initial Bluetooth Connection and Playing Audio - 9... -
Page 5: Setup
Setup Features & Specifications Includes • Wooden Table with built-in speakers • Remote control with 1 CR2025 battery pre-installed • Table can support up to 110lbs (50kg) • Optical audio cable • Bluetooth: range 60 ft. • AC/DC power adapter • 2 channel stereo sound • Assembly hardware and instructions • Digital volume control... -
Page 6: Orientation
Orientation Top & Front View Controls Source Indicator LED (front) Speakers Shelf Source Mode Indicator LED STATUS INDICATOR LIGHT Power Off Red Light Bluetooth Standby/Pairing Slow/Quick Flashing Blue Light Bluetooth Connected Solid Blue Light Optical Mode Orange Light Aux In (RCA) Mode White Light Coaxial Mode Purple Light... -
Page 7: Speaker Controls (Top)
Speaker Controls (Top) Power/Source Volume Pair/Play/Pause Press and hold to power the unit Press to adjust volume. Press and hold to begin pairing to a ON or OFF. Bluetooth device. Press to switch audio source to Press to play or pause audio Bluetooth, Optical, Aux In, Coaxial, (BLUETOOTH MODE). -
Page 8: Remote
Remote Functions & Controls Power Mute Press to turn Press to mute the unit ON or OFF. the volume. Press to switch to Bluetooth Mode. Optical Press to switch to Optical mode. Coaxial Press to switch Skip Back/Fwd to Coaxial mode. In Bluetooth mode, press to skip the Press to switch... -
Page 9: Connecting Devices
When pairing, remain within 3 feet of the Bluetooth device. 2. Using the controls on your Bluetooth device, select ISBT789 in the Bluetooth Settings to pair. If need be, refer to the user’s manual for your specific device for more information. -
Page 10: Stereo Rca Inputs (Aux In) & Coaxial Audio Input
Connecting Devices Stereo RCA Inputs (Aux In) & Coaxial Audio Input Requires RCA stereo audio cable (not included) or Coaxial audio cable (not included). When connecting RCA stereo audio plugs (Red/White), match them to their corresponding color coded ports. Connect an RCA stereo audio cable to the Aux In ports on the sound bar and the RCA audio outputs on a television or other audio source. -
Page 11: Optical Input
Optical Input Requires an audio source with an Optical Audio Output and a Digital Optical Audio Cable (included). Using a Digital Optical Audio Cable, connect the Optical Input on the sound bar to the Optical Output on your audio source (TV, amplifier, etc.). 2. -
Page 12: Company Information
Company Information Contact Information Warranty For Warranty Information and the most up-to-date Website: www.iLiveElectronics.com version of this User’s Guide, go to: Email Support: prodinfo@dpiinc.com www.iLiveElectronics.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com...
