Infrared Motion
Sensor
CR-5
Instruction
Welcome to use CR-5 Infrared motion sensor!
The product is a new saving-energy switch, it adopts good
sensitivity detector, integrated circuit. It gathers automatism,
convenient safe, saving-energy and practical functions. It utilizes the

SPECIFICATION

Power Sourcing: 220V/AC-240V/AC
Power Frequency: 50Hz
Ambient Light: 3-2000 LUX (Adjustable)
Time-Delay: min. 10sec ± 3sec
Max. 7min±2min
Rated Load: 1200 W (incandescent lamp)
300 W (energy-saving lamp)
Detection Distance: 6m max (<240)

FUNCTION:

• Identify day and night automatically. Can adjust ambient light
according to your desire: when turn to SUN (max), it will work in
the daytime and at night. When turn to MOON (min), it will only
work under less than 3LUX circumstance. As for Adjustment,
please refer to testing way.

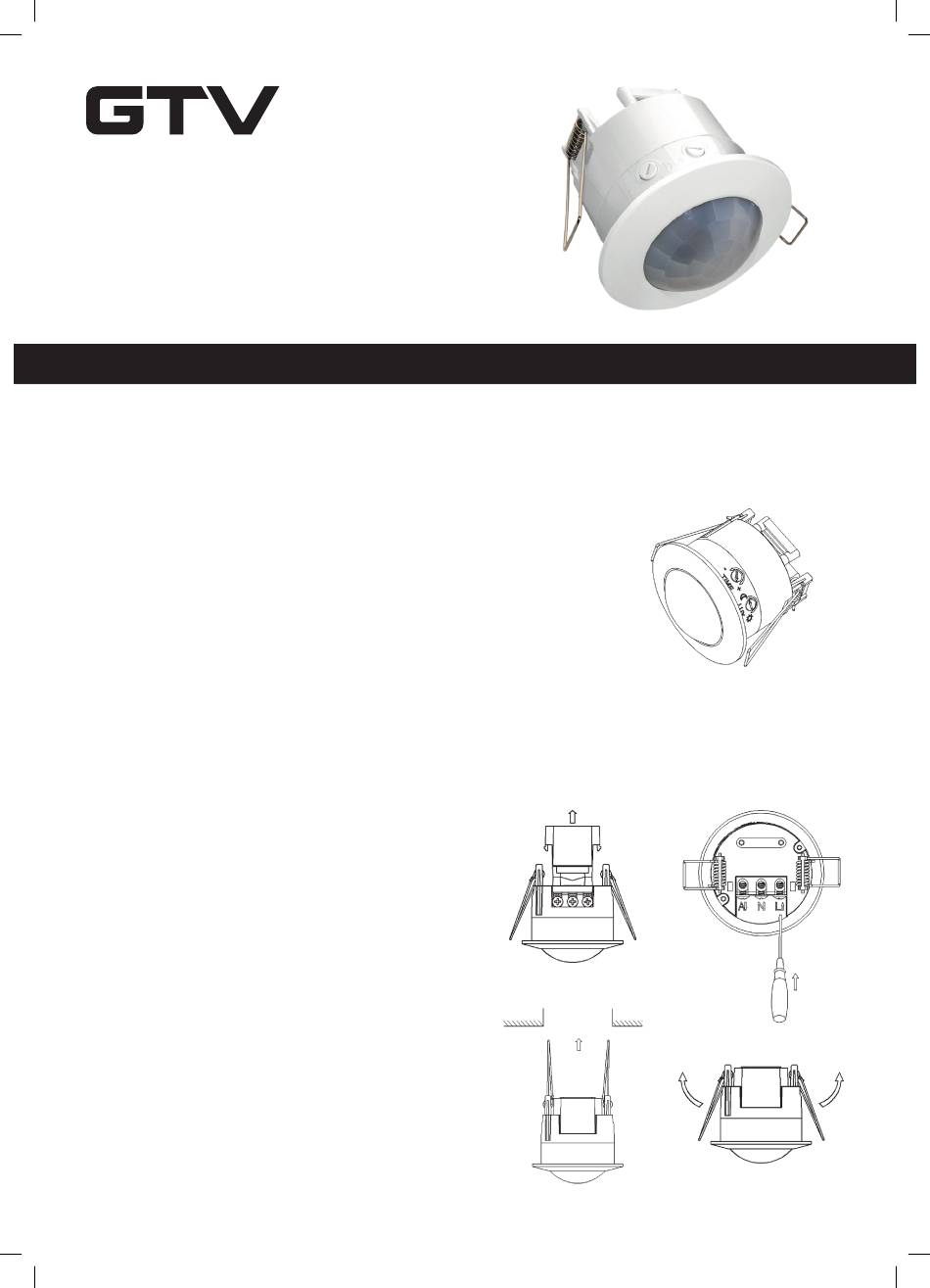

INSTALLATION:

(as following drawing.):
• Turn off the power.
• Moving the transparent vinyl cover what is in the bottom of the
sensor.
• Loosing the screws in the connection terminal, connecting the
power and rated load to connection terminal of sensor according
to connection sketch map.
• Tighten the screws, put the transparent vinyl cover into the
original station.
• Folding the metal spring of the sensor to upwards, until they are
in "I" position with sensor, then put the sensor into the hole or
installation box what is in the ceiling, the size is similar with item.
Releasing the spring, the sensor will be set in this installation
position.
• After finishing installing, the sensor could be connected the power
and testing it.
infrared energy from human as control-signal source, it can start the
load at once when one enters detection field. It can identify day and
night automatically. It is easy to install and used widely.
Detection Range: 3600
Working Temperature: -20~+400C
Working Humidity: <93%RH
Installing Height: 2.2m~4m
Power Consumption: 0.45 W (work)
0.1 W (static)
Detection Motion Speed: 0.6 ~ 1.5 m/s
• Time-delay is added continually: when it receives the second
induction signal after the first inductor, it will compute time once
more on the rest of the first time-delay basic (Set time) .
• Time-delay adjustment: it can be set according to your desire. The
minimum is 10±3 sec; the maximum is 7±2min.
STEP 3
STEP 1
STEP 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GTV CR-5

Summary of Contents for GTV CR-5

  • Page 1 Infrared Motion Sensor CR-5 Instruction Welcome to use CR-5 Infrared motion sensor! The product is a new saving-energy switch, it adopts good infrared energy from human as control-signal source, it can start the sensitivity detector, integrated circuit. It gathers automatism, load at once when one enters detection field.
  • Page 2 CONNECTION SKETCH FIGURE: (As per right drawing) TEST • Turn the TIME knob anti-clockwise on the minimum, turn the LUX knob clockwise on the maximum (sun). • Turn on the power, the sensor will be electrify and warm-up, 30 sec later, the item will be entered into working estate.
  • Page 3 датчик движения CR-5 LED Instruction Спасибо за то, что выбрали инфракрасный датчик движения CR-5 LED Наш продукт является новым видом энергосберегающего излучения человеческого тепла, благодаря чему он включается выключателя со встроенным датчиком движения высокой тогда, когда в радиусе действия датчика появится источник...
  • Page 4 СХЕМА ЭЛЕКТРИЧЕСТКОГО ПОДКЛЮЧЕНИЯ ТЕСТИРОВАНИЕ: • Повернуть переключатель “TIME” (“Время”) против часовой стрелки, т.е. на минимум, а затем повернуть переключатель “LUX” (“Интенсивность света”) по часовой стрелке, т.е. на максимум (“Sun” - “Солнце”). • Включить питание датчика. Датчик разогреется в течение 30 секунд, после...
  • Page 5 Czujnik ruchu na podczerwień CR-5 Instrukcja obsługi Dziękujemy za wybór czujnika ruchu CR-5 na podczerwień! Niniejszy produkt jest nowym rodzajem energooszczędnego podczerwonego ludzkiego ciała, czyli jego ciepła, za pomocą wyłącznika wyposażonego w zintegrowany czujnik o wysokiej którego jest włączany gdy w polu wykrywania czujnika znajdą się...
  • Page 6 SCHEMAT POŁĄCZEŃ ELEKTRYCZNYCH: TEST: • Przesunąć pokrętło “TIME” (“Czas”) w kierunku przeciwnym do ruchu wskazówek zegara, tj. w położenie minimalne, a następnie przesunąć pokrętło “LUX” (“Natężenie światła”) w kierunku zgodnym z ruchem wskazówek zegara w położenie maksymalne (“Sun” - “Słońce”). •...
