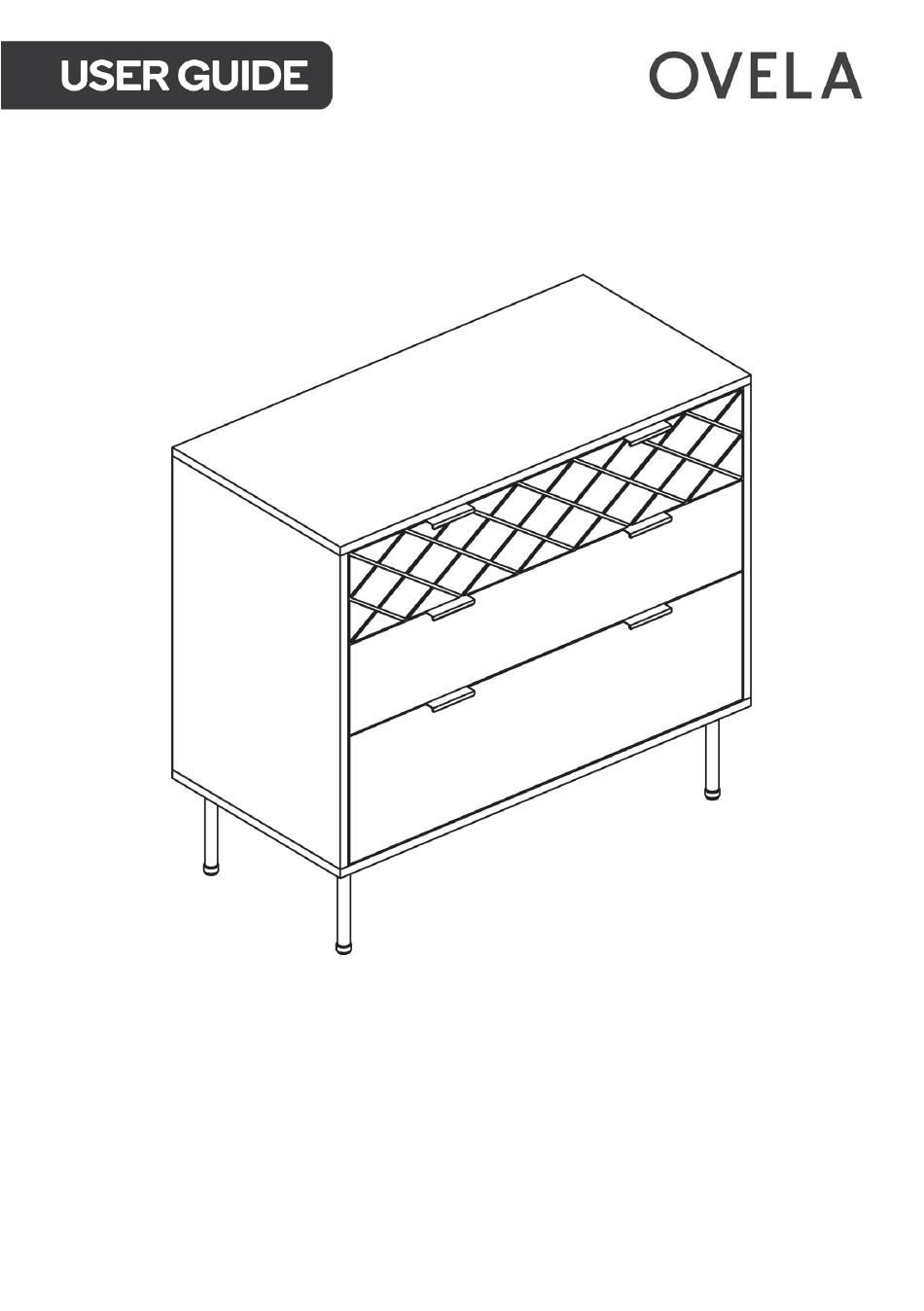

- Page 1 CHRISTIAN CHEST OF DRAWERS OVCHRISCDBA, OVCHRISCDWA...
- Page 3 COMPONENTS...
- Page 4 Hardware A (x30) B (x3) C (x3) D (x3) E (x3) F (x30) G (x2) H (x19) I (x19) J (x10) K (x9) L (x22) M (x1) N (x15) O (x6) P (x2)
- Page 5 ASSEMBLY Step 1: Note: A Phillips head screwdriver (not supplied) will be required to assemble this chest of drawers. A (x18) B (x3) E (x3)
- Page 6 Step 2: F (x2) G (x2) H (x4) J (x2) K (x3)
- Page 7 Step 3: Insert four dowels (J) into part 1, then using a Phillips head screwdriver, secure four cam locks (I) into parts 3 and 4. Align parts 3 and 4 with part 1 and ensure the arrows on the cam locks (I) are pointing towards the corresponding cam screws (H).
- Page 8 Step 4: J (x4) K (x4)
- Page 9 Step 5: F (x16) Step 6: L (x11)
- Page 10 Step 7: L (x11) M (x1) Step 8: N (x10)
- Page 11 Step 9: N (x5) Step 10: H (x15) I (x15)
- Page 12 Step 11: F (x12) O (x6) Step 12: A (x12) C (x3) D (x3)
- Page 13 Step 13: Twist the adjusters on the bottom of the legs (18) to ensure the assembly is level and stable.
- Page 14 Step 14: Align the brackets (G) with where you would like to place the chest of drawers against the wall. Mark the location of the brackets (G) on the wall. Using a drill (not supplied), make holes on the marked spots. With a hammer (not supplied), secure the wall anchors (R) into the holes.
- Page 15 Step 15: Assembly is complete.
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
