Summary of Contents for Kogan Ovela MALLOW OVMALLOWEUA

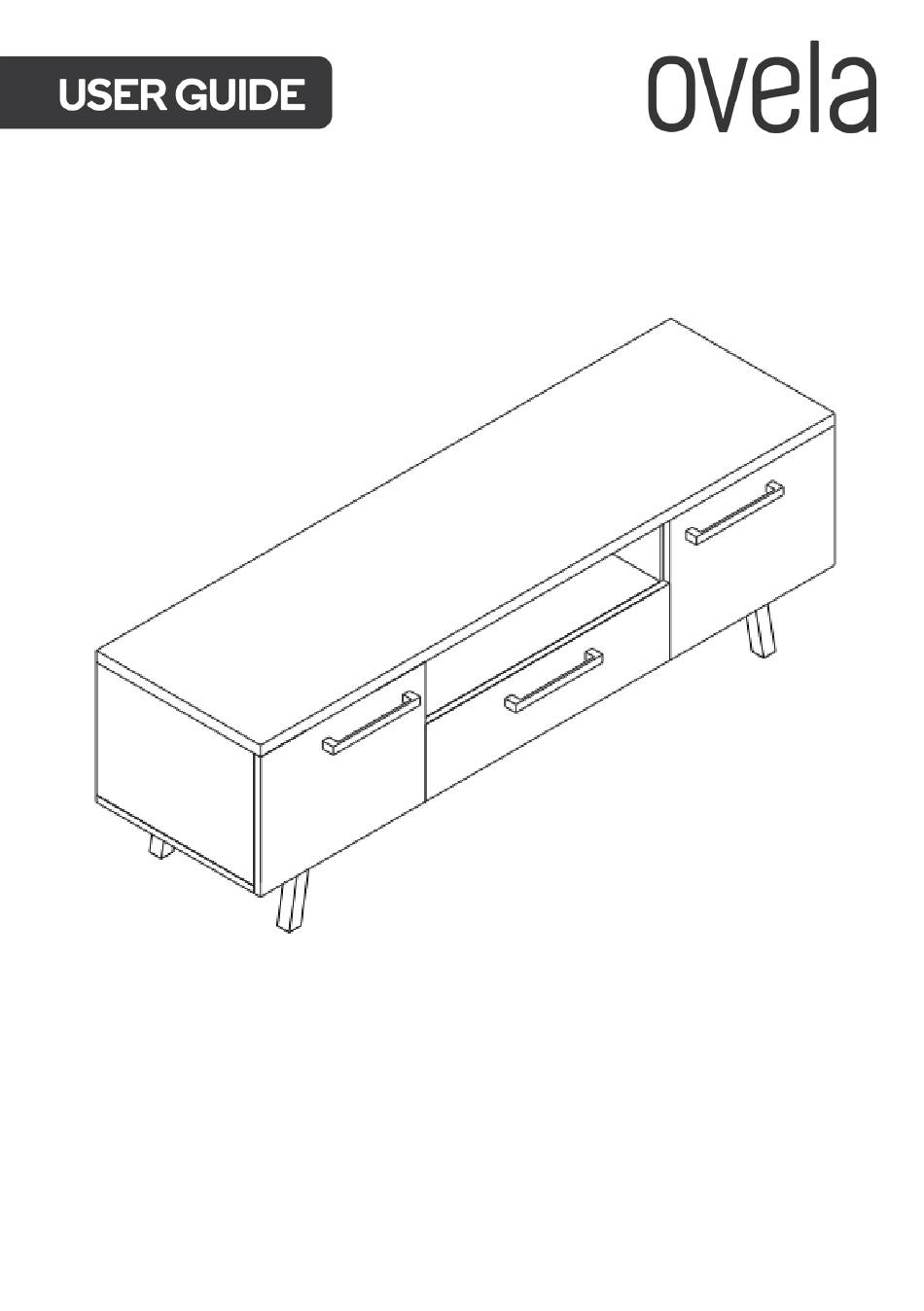

- Page 1 MALLOW ENTERTAINMENT UNIT OVMALLOWEUA...
- Page 3 SAFETY & WARNINGS Important Information: manual • Please read the entire carefully before starting to assemble and/or using this product. Follow the manual thoroughly and keep it for further reference. • Two people are required for this assembly. WARNING: The screw supplied together with the anti-toppling bracket is to be used only for fixing the anti-topple bracket to the furniture.
- Page 4 COMPONENTS 185 x 85 x 50mm 1400 x 400 x 25mm ① ⑩ 400 x 293 x 15mm ② 1400 x 385 x 15mm ⑪ 400 x 293 x 15mm ③ 385 x 280 x 15mm ⑫ 595 x 160 x 15mm 370 x 280 x 15mm ④...
- Page 5 Hardware: A 340mm (x2) B M6x12mm (x16) C M5x40mm (x4) D M6x45mm (x12) E Φ15x12mm (x12) H M6x27mm (x4) F Φ8x30mm (x20) G Φ5x38mm (x8) I Φ12x10mm (x4) J Φ4x35mm (x4) O 212x26x17mm K 15x13x10mm (x4) L Φ3.5x20mm (x4) M Φ35/FK0mm (x4) N M4x14mm (x16) (x3) R (x2)
- Page 6 ASSEMBLY Step 1: F Φ8x30mm (x20)
- Page 7 Step 2: D M6x45mm (x12)
- Page 8 Step 3: A 340mm (x2)
- Page 9 Step 4: Q Φ3.5x12mm (x4)
- Page 10 Step 5: E Φ15x12mm (x4)
- Page 11 Step 6: E Φ15x12mm (x8)
- Page 12 Step 7:...
- Page 13 Step 8: V 3mm (x1) G Φ5x38mm (x8)
- Page 14 Step 9: C M5x40mm (x4)
- Page 15 Step 10: B M6x12mm (x16) U 4mm (x1)
- Page 16 Step 11: K 15x13x10mm (x4) L Φ3.5x20mm (x4)
- Page 17 Step 12: R (x2) S M4x12mm (x4) T Φ10mm (x4)
- Page 18 Step 13: W Φ21mm (x8)
- Page 19 Step 14: N M4x14mm O 212x26x17mm M Φ35/FK0mm P Φ4x18mm (x8) (x2) (x4) (x4)
- Page 20 Step 15: N M4x14mm (x8)
- Page 21 If gaps are present between the doors, refer to the above guide to adjust the hinges.
- Page 22 Step 16: H M6x27mm (x4) I Φ12x10mm (x4)
- Page 23 Step 17: L Φ3.5x20mm (x4) W Φ21mm (x4)
- Page 24 Step 18: O 212x26x17mm (x1) P Φ4x18mm (x2) Q Φ3.5x12mm (x4)
- Page 25 Step 19:...
- Page 26 Step 20: T Φ10mm (x2) TOPPLING FURNITURE WARNING: • It is strongly recommended that this product is permanently fixed to the wall. • Please seek professional advice if you are in doubt of what fixing device to use. • Regularly check that anchors are securely maintained. •...
- Page 27 Step 21: Max. 5Kgs Max. 20Kgs Max. 10Kgs Max. 5Kgs Max. 10Kgs Assembly complete. Do not exceed maximum weight for each section.
- Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
