12Volt Trigger - ELAC VARRO Dual Reference Series Owner's Manual

Speaker Level Input Connection
Filename: elac 1019_10PR amp panel silk Rev B.ai
1 Color: White
SCI P/N: SLK3550
Rev: B
Dual Reference Subwoofer Series
Model : DS1000-GB
LEFT LEFT
LINE
IN
RIGHT
RIGHT
SPEAKER LEVEL
INPUTS
RIGHT/
LEFT
LFE
WIRELESS
PAIR/RESET
THIS DEVICES COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1 THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
2 THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
VOLUME
OPERATIONS
CONTAINS FCC ID: A8TBM70ABCDEFGH
CONTAINS IC ID: 12246A-BM70BLES1F2
CONTAINS FCC ID: NKR-SWA12
CANTAINS IC: 4441A-SWA12
12V
TRIGGER CAN ICES-3(B)/NMB-3(B)
SERVICE
ETHERNET
CAUTION
For continued protection against
risk of fire, replace only with same
type fuse and rating
SERIAL NUMBER
1938 N. Batavia St. Suite K
Orange, CA 92865
ATTENTION
Utiliser un fisible de rechange
Fraunhoferstraße 16
de meme type et calibre
24118 Kiel
Deutschland
www.elac.com
POWER
ON
T12A H 250V
T6.3A H 250V
OFF
100-120VAC 50/60Hz 12A 220-240VAC 50/60Hz 6.3A
Desinged by Elac Made in China

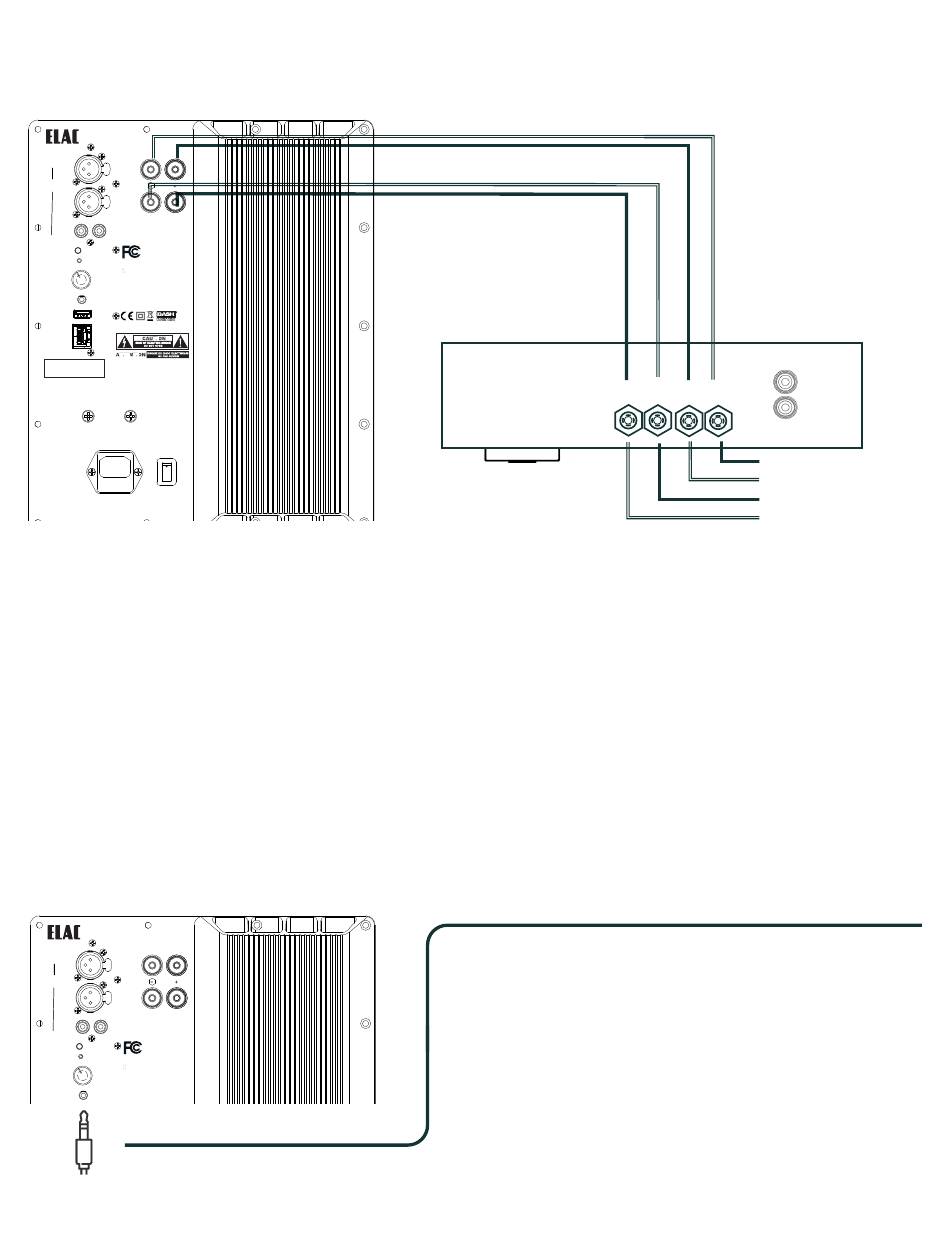

1. Connect the Left and Right Speaker Outputs of your Amplifier/Integrated Am-
plifier/Receiver to the speaker level inputs on the subwoofer.
2. You will also connect the same speaker level outputs on your Amplifier to
your speakers

12Volt Trigger

Filename: elac 1019_10PR amp panel silk Rev B.ai
1 Color: White
SCI P/N: SLK3550
Rev: B
Dual Reference Subwoofer Series
Model : DS1000-GB
LEFT
LEFT
LINE
IN
RIGHT RIGHT
SPEAKER LEVEL
INPUTS
RIGHT/
LEFT
LFE
WIRELESS
PAIR/RESET
THIS DEVICES COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1 THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
2 THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
VOLUME
OPERATIONS
CONTAINS FCC ID: A8TBM70ABCDEFGH
CONTAINS IC ID: 12246A-BM70BLES1F2
CONTAINS FCC ID: NKR-SWA12
CANTAINS IC: 4441A-SWA12
12V
TRIGGER CAN ICES-3(B)/NMB-3(B)
SERVICE
ETHERNET
CAUTION
For continued protection against
risk of fire, replace only with same
type fuse and rating
SERIAL NUMBER
1938 N. Batavia St. Suite K
Orange, CA 92865
ATTENTION
Utiliser un fisible de rechange
Fraunhoferstraße 16
de meme type et calibre
24118 Kiel
Deutschland
www.elac.com
ELAC Dual Reference Subwoofer Models DS1000, DS1200 | www.elac.com
POWER
ON
T12A H 250V
T6.3A H 250V
OFF
+
Amplifier
The 12Volt trigger will shift control of powering the
subwoofer to an external 12 Volt source.
Applying an input of 5 - 12 Volts will turn on the amplifi-
er. A voltage of 0 will turn off the amplfier.
Note:
To enable 12 Volt Trigger, you need to set power mode
to 12VOlt with ELac Sub Control 3.0 APP
AUDIO IN
SPEAKER OUT
-
-
+
TO SPEAKERS
Page 4
