Wireless Pairing

Filename: elac 1019_10PR amp panel silk Rev B.ai
1 Color: White
SCI P/N: SLK3550
Rev: B
Dual Reference Subwoofer Series
Model : DS1000-GB
LEFT
LEFT
LINE
IN
RIGHT RIGHT
SPEAKER LEVEL
INPUTS
RIGHT/
LEFT
LFE
WIRELESS
PAIR/RESET
THIS DEVICES COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1 THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
2 THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
VOLUME
OPERATIONS
CONTAINS FCC ID: A8TBM70ABCDEFGH
CONTAINS IC ID: 12246A-BM70BLES1F2
CONTAINS FCC ID: NKR-SWA12
CANTAINS IC: 4441A-SWA12
12V
TRIGGER CAN ICES-3(B)/NMB-3(B)
SERVICE
ETHERNET
CAUTION
For continued protection against
Pairing the wireless transmitter with other AirX2 products is very simple. Please follow the below steps
risk of fire, replace only with same
type fuse and rating
SERIAL NUMBER
1938 N. Batavia St. Suite K
Orange, CA 92865
to complete the process.
ATTENTION
Utiliser un fisible de rechange
Fraunhoferstraße 16
de meme type et calibre
24118 Kiel
Deutschland
www.elac.com

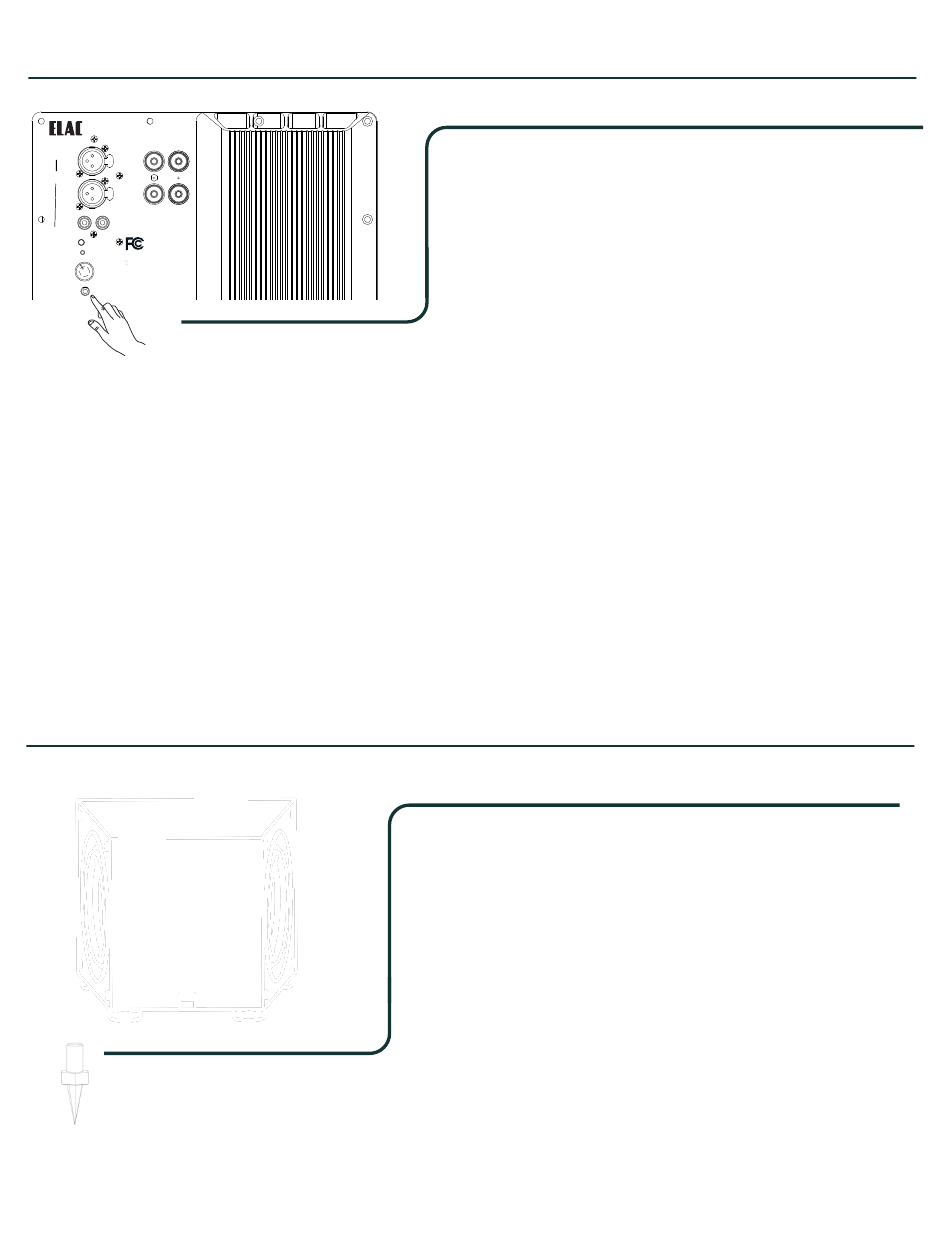

1. Press and hold the Wireless Pair button on the subwoofer until the LED begins to flash rapidly
POWER
ON
(Around 2 times per second).
T12A H 250V
T6.3A H 250V
OFF
2. Press and hold the Wireless Pair button on the bottom of the AirX2 transmitter until the wireless pair
100-120VAC 50/60Hz 12A 220-240VAC 50/60Hz 6.3A
Desinged by Elac Made in China
LED on the subwoofer stops flashing and stays solid blue. A solid blue LED means the subwoofer
paired properly. The LED being off means the subwoofer did not pair and please try again.
3. Repeat with additional subwoofers (Up to 3 units)
Optional Spike Installation
1. Attach the spikes by screwing them into the threaded inserts on each of the four cor-
ners on the bottom of the subwoofer.
2. The nut on the spike is used to the lock the spike at the desired height.
ELAC Dual Reference Subwoofer Models DS1000, DS1200 | www.elac.com
Note:
This subwoofer has a built in wireless receiver intented
to work with ELAC AirX2 transmitter.
Included with your subwoofer are four optional spikes that
can be used` when the subwoofer is used on carpet.
If you are installing the subwoofer onto hardwood, tile or
other non-carpeted surfaces please use spike discs (Not
included), or do not install the spikes to prevent any dam-
age to your floor.
Page 6
