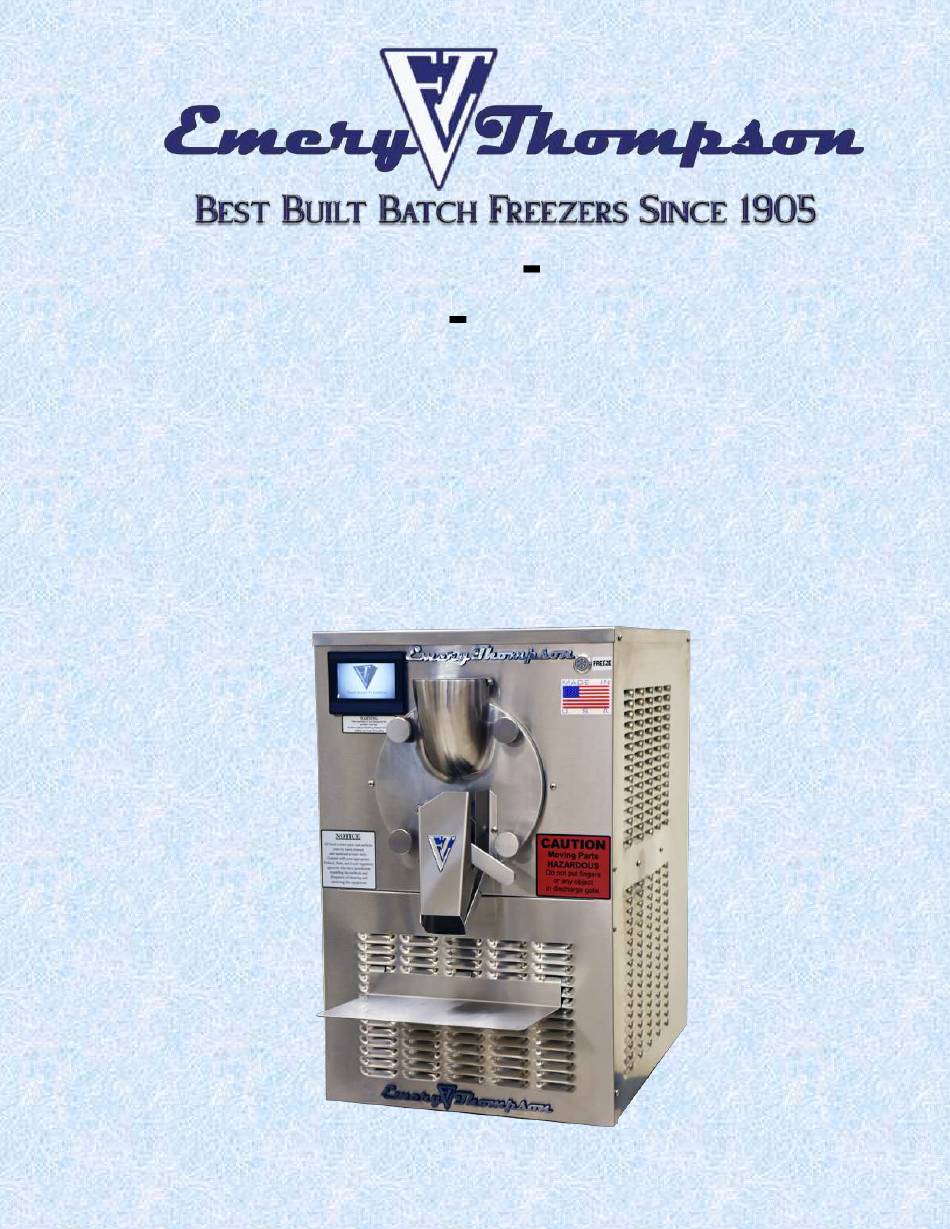

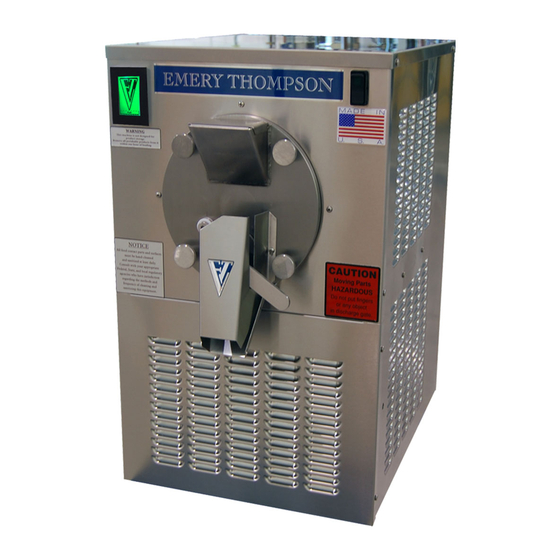

  • Page 1 INSTALLATION OPERATION CLEANING MAINTENANCE CB-350 BATCH FREEZER...
  • Page 2 INSTALL THIS MACHINE WILL VOID YOUR WARRANTY <<< CAUTION >>> CB-350 COUNTERTOP BATCH FREEZER <<< WARNING >>> 1. SECURE ALL PANELS TO THE MACHINE BEFORE TURNING ON THE ELECTRIC. - 1 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...

  • Page 3: Table Of Contents

    Section 9 DESCRIPTION OF FUNCTION Page 27 Section 10 ELECTRICAL DIAGRAM Page 28 Section 11 TROUBLESHOOTING Page 29 Section 12 PARTS DIAGRAMS Page 32 Section 13 RECIPES Page 34 - 2 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...

  • Page 4: Warranty

    Caution: This warranty is valid only if required service is provided by an authorized agent of Emery Thompson Machine and Supply Company or person or persons directly authorized by Emery Thompson to perform the necessary repairs. Emery Thompson can be reached at 718-588-7300-factory, 352-796-0720-fax STEVE@EMERYTHOMPSON.COM electronic mail.
  • Page 5 Purchaser shall not remove, alter or deface the serial number on said machine and there shall be no liability of Emery Thompson Machine and Supply Company if any of same shall occur. Repair or Replacement of Defective Parts.
  • Page 6 THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A RESPECT TO ANY EMERY THOMPSON FREEZER SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE COMPONENTS UNDER THE TERMS OF THIS WARRANTY.

  • Page 7: Safety

    NO DISTRIBUTOR, DEALER OR OTHER PERSON IS AUTHORIZED TO MAKE ANY COMMITMENT OR ASSUME ANY LIABILITY ON BEHALF OF EMERY THOMPSON MACHINE AND SUPPLY COMPANY, INC. BEYOND THIS WARRANTY. THERE ARE NO WARRANTIES, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
  • Page 8 • DO NOT only water in the freezing cylinder. • DO NOT let your product over-freeze during production. This is the most common mistake a new operator makes. - 7 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...

  • Page 9: Unpacking

    Remove all four bolts, and also unscrew one wooden side runner from the pallet. The machine will now be free from the pallet. Save all components; they can be used at a later date to safely move the machine. - 8 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...

  • Page 10: Installation

    NOTE: The protective plastic film on most outer surfaces of the machine protects the finish during shipping. This film MUST be - 9 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 11 IMPORTANT NOTE: This machine will not work if it is connected to a GFCI circuit. If the local electrical code requires that the machine be connected to a GFCI circuit, contact Tech Support at Emery Thompson for further instructions. - 10 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 12 Any of these parts can also be cleaned with liquid dish detergent and hot water, so long as they are thoroughly rinsed. The inside of the cylinder will have to be - 11 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 13 (See Diagram 1B, Page 32.) When the machine is fully assembled, with the door in place, and the four knobs hand tightened (do NOT use any tools), it is ready to be sanitized. - 12 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...

  • Page 14: Operation

    On the upper right of the face of the machine, there is a pushbutton switch. This energizes the refrigeration condensing unit. Push in the button push in on the button for button will illuminate blue. Ensure that the button - 13 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...

  • Page 15: Operating The Touchscreen

    Section 7 OPERATING THE TOUCHSCREEN The CB-350 touchscreen is a powerful device filled with intuitive operating screens and helpful videos. This section will explain how to navigate the screens for safe and proper operation of the machine. 7.1 The SCREEN SAVER After applying power to the machine, the SCREEN SAVER screen displays the rotating ET symbol.
  • Page 16 7.2 The I WANT TO: Screen (Also called the HOME screen) After touching the screen, the I WANT TO:/HOME screen is displayed. You can choose to MAKE ICE CREAM or GET HELP. Press the MAKE ICE CREAM button. - 15 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 17 PREVIOUS RECIPIES button to return to the first CHOOSE RECIPE screen or you can press the HOME button to go back to the I WANT TO:/HOME screen. Press the button that - 16 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 18 START screen for that product. 7.4 The OVERRUN/PRODUCT/SPEED Chart OVERRUN/PRODUCT/SPEED Desired Overrun Product Name Dasher Speed (RPM) Homemade Super Premium Frozen Yogurt Gelato Cream Ice Sherbet Custard - 17 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 19 BLADES STOPPED. The HOME button will take you back to the I WANT TO:/HOME screen and the BACK button will take you back to the CHOOSE RECIPE screen. - 18 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 20 DOWN buttons can be pressed to change the speed of the dasher if desired. Once the FREEZE switch is pressed, the BACK button in the upper right-hand corner of the screen changes to a timer - 19 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 21 PRESSURE 7.7 The GET HELP Screens From the I WANT TO:/HOME screen, press the GET HELP button, which will take you to the SELECT YOUR MACHINE screen. Page 4 - 20 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 22 TROUBLESHOOTING topics. Also, you can press the HOME button to be taken back to the I WANT TO:/HOME screen or the BACK button to go back to the SELECT YOUR MACHINE screen. - 21 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 23 Pressing the REMEDY button will provide information for resolving the - 22 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 24 If the machine stops due to one of these alarms, it is important to take note of the alarm and call Tech Support at Emery Thompson if the alarm persists. If the alarm cannot be cleared by pressing the RESET button, turn off the power to the machine for 60 seconds and turn it back on.
  • Page 25 The SYSTEM screens will appear if you touch the screen in the upper right -hand corner. If - 24 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...

  • Page 26: Care & Maintenance

    Section 8 CARE & MAINTENANCE One of the best features of an Emery Thompson batch freezer is the small amount of maintenance and the ease of care required. The materials we use are the best available for their intended purpose and designed for maximum longevity.
  • Page 27 A stainless-steel cleaner/polish can also be used to keep it bright. Performing regular maintenance on your Emery Thompson batch freezer will keep it running at its peak performance for many years. The maintenance required is based on how frequently you run the machine and how long you run the machine.

  • Page 28: Description Of Function

    (1) CB-200 and CB-350 machines only (2) 12, 24- and 44-quart machines only (3) Water cooled machines only (4) Air cooled machines only If your batch freezer has been stored in an unheated area and is brought into a warmer area for use, allow it to sit for at least 24 hours in the warmer temperature;...
  • Page 29 The purpose of this section is to explain how the CB-350 is supposed work so that anyone working on the machine will have a thorough understanding, which should make troubleshooting easier. Please refer to the electrical drawing on the next page for the reference numbers in parentheses.
  • Page 30 Section 10 Electrical Diagram - 29 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 31 (FREEZING UP YOUR MACHINE) What you did wrong! When our customers first run their new Emery Thompson CB - 350, what we too often hear is how they froze the machine up solid and got an error code on the touchscreen.
  • Page 32 4. YOUR BLEND: You been building and running Emery Thompson Batch Freezes since magazine, cookbook or you made it up will work fine in your home ice cream freezer or a cheap Italian or Chinese machine.
  • Page 33 Rotate dasher and push backward. Machine sways/shakes while Feet or mounting surface running uneven; adjust feet so that each has equal pressure. - 32 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 34 Door is leaking around Door seal O-ring uneven/not edge(s) fully seated in its groove. Remove and reinstall Section 12 PARTS DIAGRAMS - 33 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 35 - 34 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 36 Then turn on the refrigeration and freeze for 8-10 minutes, depending on desired consistency. Store and serve at 16 degrees Coffee Ice Cream - 3 quarts 14% ice cream mix - 1 ounce of vanilla extract - 35 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 37 Mix the sugar with the water in a clean container until the sugar is dissolved. Slowly pour this and the remaining ingredients into the machine; start dasher, then the refrigeration. Freeze for approximately 12 minutes. - 36 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 38 - 37 - v. 3.33 Emery Thompson CB-350 Countertop Batch Freezer...
