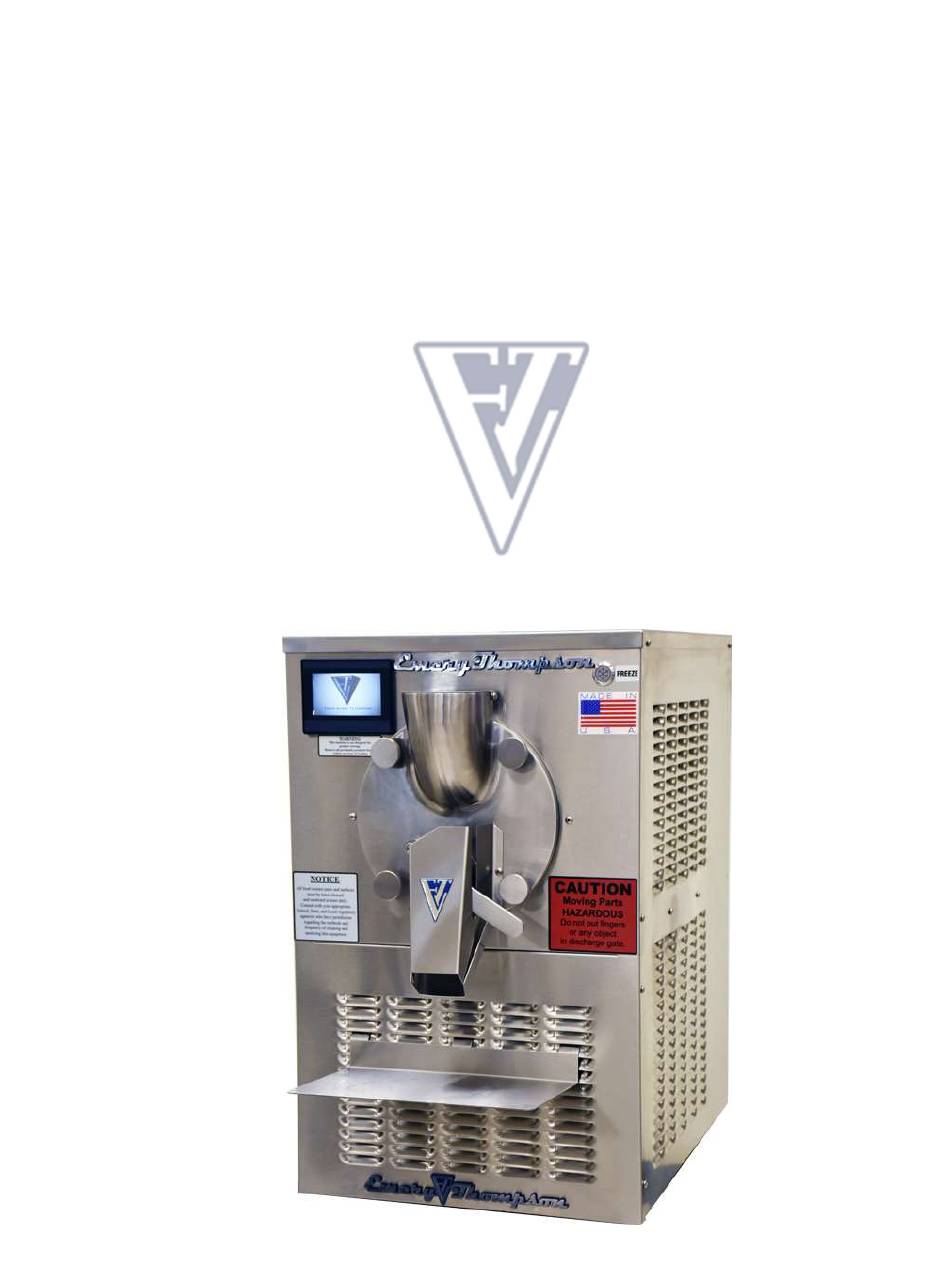

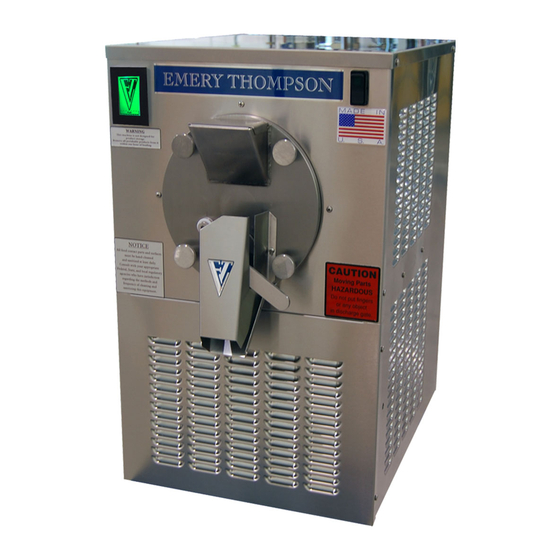

  • Page 1 Emery Thompson INSTALLATION – OPERATION CLEANING – MAINTENANCE CB-350 BATCH FREEZER...
  • Page 2 1. SECURE ALL PANELS TO THE MACHINE BEFORE TURNING ON THE ELECTRIC. 2. THE OCCASIONAL CYCLING OF THE COMPRESSOR ON AND OFF IS NORMAL AND IS DESIGNED TO EXTEND THE LIFE OF THE CONDENSING UNIT. - 1 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 3 Section 9 DESCRIPTION OF FUNCTION Page 25 Section 10 ELECTRICAL DIAGRAM Page 26 Section 11 TROUBLESHOOTING Page 27 Section 12 PARTS DIAGRAMS Page 28 Section 13 RECIPES Page 30 - 2 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 4 Caution: This warranty is valid only if required service is provided by an authorized agent of Emery Thompson Machine and Supply Company or person or persons directly authorized by Emery Thompson to perform the necessary repairs.
  • Page 5 Purchaser shall not remove, alter or deface the serial number on said machine and there shall be no liability of Emery Thompson Machine and Supply Company if any of same shall occur. Repair or Replacement of Defective Parts. The Company’s obligation under this warranty is limited to the repair of defective parts at the Brooksville, Florida plant or replacement from the Company’s own inventory.
  • Page 6 WHAT IS NOT COVERED BY THIS WARRANTY Emery Thompson Machine’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
  • Page 7  DO NOT operate your machine unless it was wired, grounded, and properly fused by a licensed electrician.  DO NOT put fingers, hands or any utensils in either the inlet spout or door outlet. - 6 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 8  DO NOT turn on the machine’s refrigeration switch with only water in the freezing cylinder.  DO NOT let your product over-freeze during production. This is the most common mistake a new operator makes. - 7 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 9 * If your machine was exported outside of North America, it will have an all wood box over it fastened to the runners with removable screws. - 8 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 10 Your electrician can also call us for technical information if necessary, during business hours. - 9 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 11 These two o-rings, and the circumference of the shaft just forward and rearward of the o-rings should have a generous coating of food-grade - 10 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 12 We recommend using a commercially available sanitizer/cleaner made by Purdy Products Company called “Stera Sheen Green Label”, although other brands exist as well. Carefully follow the manufacturer’s instructions on mixing and use of their product. - 11 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 13 The compressor will also start occasionally and run briefly, even if the machine sits idle if there is power connected to it. This is a normal function, and actually helps prolong the life of the compressor. - 12 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 14 Section 7 – OPERATING THE TOUCHSCREEN The CB-350 touchscreen is a powerful device filled with intuitive operating screens and helpful videos. This section will explain how to navigate the screens for safe and proper operation of the machine. 7.1 The SCREEN SAVER After applying power to the machine, the SCREEN SAVER screen displays the rotating ET symbol.
  • Page 15 5.4.) This is the first screen of two CHOOSE RECIPE screens. Press the MORE RECIPIES button to go to the second screen or press the HOME button to go back to the I WANT TO:/HOME screen. - 14 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 16 Desired Overrun Product Name Dasher Speed (RPM) Homemade Super Premium Frozen Yogurt Gelato Cream Ice Sherbet Custard Dairy Free 15 – 17 Italian Ice 15 – 17 Sorbet/Sorbetto Frozen Lemonade - 15 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 17 BLADES STOPPED. The HOME button will take you back to the I WANT TO:/HOME screen and the BACK button will take you back to the CHOOSE RECIPE screen. DOWN - 16 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 18 0:00 when the FREEZE switch is turned off. When the STOP button is pressed, the dasher stops and the screen changes back to the START screen. DOWN - 17 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 19 HELP VIDEOS menu for your machine. If you want to go back to the I WANT TO:/HOME screen, press the HOME button. - 18 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 20 SELECT YOUR MACHINE screen. The rest is self-explanatory and very easy to navigate. Simply choose a topic, press the button for the video of your choice, and watch the video. - 19 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 21 Tech Support at Emery Thompson if the alarm persists. If the alarm cannot be cleared by pressing the RESET button, turn off the power to the machine for 30 seconds and turn it back on.
  • Page 22 RUN screen and cause the audible alarm to stop. If the product is not extracted the WARNING screen will come back on 30 seconds after the ACKNOWLEDGE button was pressed. This will continue to happen until the IOC shuts itself off. - 21 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 23 If the system screen is accidentally displayed, touch the screen anywhere outside the SYSTEM screen area to close the screen, or wait 1 minute and it will go off on its own. - 22 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 24 Section 8 – CARE & MAINTENANCE One of the best features of an Emery Thompson batch freezer is the small amount of maintenance and the ease of care required. The materials we use are the best available for their intended purpose and designed for maximum longevity.
  • Page 25 (1) CB-200 and CB-350 machines only (2) 12, 24- and 44-quart machines only (3) Water cooled machines only (4) Air cooled machines only If your batch freezer has been stored in an unheated area and is brought into a warmer area for use, allow it to sit for at least 24 hours in the warmer temperature;...
  • Page 26 Section 9 – Description of Function The purpose of this section is to explain how the CB-350 is supposed work so that anyone working on the machine will have a thorough understanding, which should make troubleshooting easier. Please refer to the electrical drawing on the next page for the reference numbers in parentheses.
  • Page 27 When the STOP button on the touchscreen is pressed, the dasher motor speed controller stops sending power to the dasher motor and the motor stops. Section 10 – Electrical Diagram - 26 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 28 Door is leaking around edge(s) Door seal O-ring uneven/not fully seated in its groove. Remove and reinstall Also see our online Help Desk at http://www.emerythompson.com/HelpDesk.htm for instant access or call 718-588-7300. - 27 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 29 Section 12 – PARTS DIAGRAMS Diagram - 28 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 30 Diagram - 29 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
  • Page 31 Pour first three ingredients into machine and start dasher. Turn on refrigeration and freeze for 10-12 minutes. Add chocolate syrup approximately one tablespoon at a time to taste (takes away bitterness of coffee). - 30 - v. 3.20 Emery Thompson CB-350 Countertop Batch Freezer...
