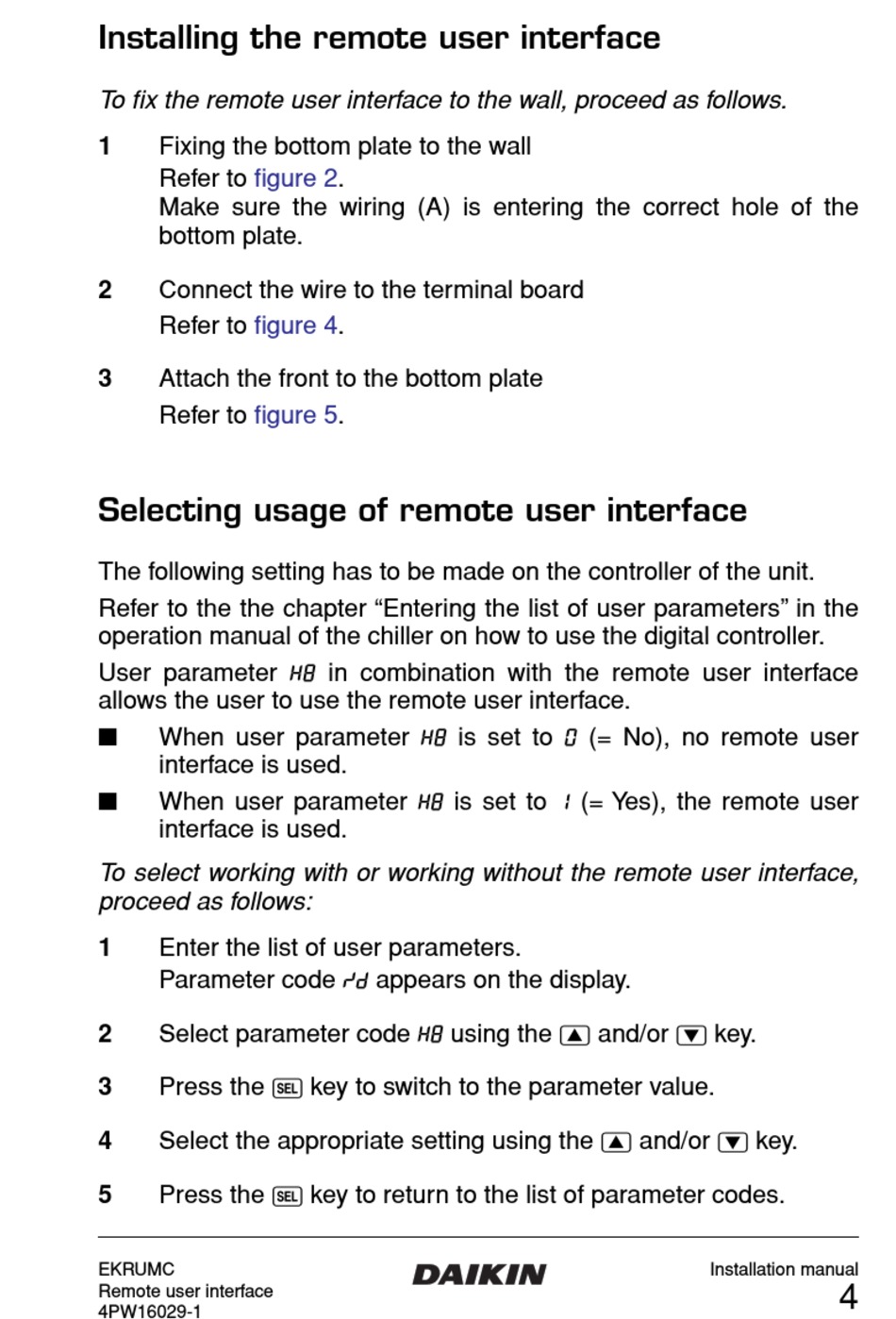

Installing the remote user interface
To fix the remote user interface to the wall, proceed as follows.
1 Fixing the bottom plate to the wall
Refer to figure
Make sure the wiring (A) is entering the correct hole of the
bottom plate.
2 Connect the wire to the terminal board
Refer to figure
3 Attach the front to the bottom plate
Refer to figure
Selecting usage of remote user interface
The following setting has to be made on the controller of the unit.
Refer to the the chapter "Entering the list of user parameters" in the
operation manual of the chiller on how to use the digital controller.
User parameter h8 in combination with the remote user interface
allows the user to use the remote user interface.
When user parameter h8 is set to 0 (= No), no remote user
interface is used.
When user parameter h8 is set to 1 (= Yes), the remote user
interface is used.
To select working with or working without the remote user interface,
proceed as follows:
1 Enter the list of user parameters.
Parameter code :d appears on the display.
2 Select parameter code h8 using the A and/or Z key.
3 Press the R key to switch to the parameter value.
4 Select the appropriate setting using the A and/or Z key.
5 Press the R key to return to the list of parameter codes.
EKRUMC
Remote user interface
4PW16029-1
2.
4.
5.
Installation manual
4
