Nexmosphere XPERIENCE CONTROLLER XN-115 Quick Start Manual

Xperience platform
All of Nexmosphere's controllers are built on the same platform principles. If this is your first time using a Nexmosphere
controller, we recommend to first read
our platform and its terminology.

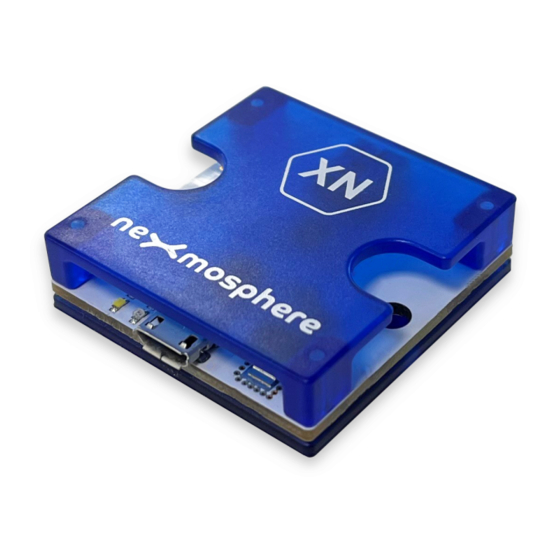

XN-115 Xperience controller

The XN-115 is an Xperience controller with 1 X-talk interface.
It serves as the interface between the sensor and your digital signage player.
1. X-talk interface 001
USB. 5V Power input and API interface (micro-USB connector)
LED. White status LED
XY-240 Presence & Airbutton sensor
The XY-240 Presence & Airbutton sensors can detect if a person is in front of the sensor and - if so - indicate the distance
of that person in relation to the sensor. Next to this, the sensor will provide an Airbutton trigger when a person places their
hand close to the sensor.

Hardware setup

1. Connect the presence sensor to the X-talk interface of the XN-115 controller
2. Connect the micro-USB cable to a 3rd party device (e.g. Digital Signage Player or PC).
3. Wait until the white status LED stops blinking. This lasts about 5 seconds.

Software setup for testing (Terminal)

Typically, the XN-115 controller is connected to a 3rd party device, such as a Digital Signage Player, on which CMS software is installed which has built-in
Functionality for sending and receiving Serial Events. However, if you want to do a first test on a PC or Mac, follow the instructions below:
1. Download a terminal program. For example
2. Open the Terminal program and go to settings. Choose the COM port on which the XN-115 controller enumerated*.
In most cases this is the highest available number in the COM port drop-down setting.
3. Set the COM port settings to the following values
Baudrate
Parity
Data
Stop
4. Set the COM port to "Open". The controller and sensor are now ready for use.
*In case the XN-115 controller is not recognized as a COM port by the 3rd party device, a driver (Prolific PL2303GL) can be downloaded
N e x m o s p h e r e
L e H a v r e 1 3 6
5 6 2 7 S W E i n d h o v e n • T h e N e t h e r l a n d s
https://nexmosphere.com/technology/xperience-platform/
1
Termite or
115200
None
Bits 8
Bits 1
T + 3 1 4 0 2 4 0 7 0 7 0
E s u p p o r t @ n e x m o s p h e r e . c o m
XN-115 XPERIENCE CONTROLLER
WITH XY-240 PRESENCE SENSOR
2
Hercules.
Flow Control None
EOL CR+LF
Protocol ASCII
All content contained herein is subject to change without prior notice
QUICK START GUIDE
to learn the basics about
1
XN
LED
USB
here.
© 2023 Nexmosphere. All rights reserved. v1.0 / 01-23
