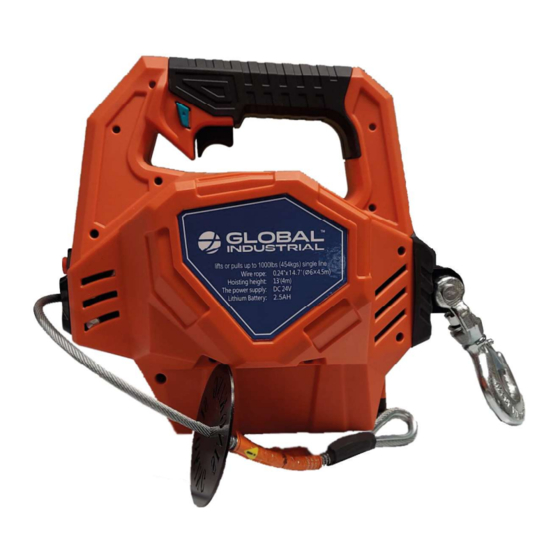

Please read the manual carefully to avoid any risk of injuries.
• Take time to fully read the manual in order to understand your
tool and its operation.
• Always wear gloves and suitable clothes, cover any long hair.
• Always fully inspect the tool and accessories before use.
• Always tightly wind cable onto drum before or during use.
• Never touch cable or hook under load.
• Always check the statuds of the battery before use.
• Always wear gloves when handling cable to avoid injury.
• Always use hook strap (included) whenever pulling cable,
during installation and during operation.
• Always switch the power off when not in use or performing
maintenance.
• Always stand clear of the cable and load and keep others away
while pulling / lifting.
• Always remove any element or obstacle that may interfere with
safe operation of the pulling tool.
• Always check cable wear and ensure the load is stable.
• Always inspect cable, hook and slings before operating pulling
tool. Damaged components must be replaced immediately.
• Always keep cable in tension during operation. Tightly wound
cable reduces chance of binding, protect cable and pulling
tools from damage.
• Never pull out the cable over the red warning mark.
• Always stand clear of winch cable and load while winding. Ask
others to keep away from scenes
• Never operate this machine when under the infl uence of drugs,
alcohol or medication.
• Never operate this pulling tool when you feel tired, sleepiness
pg. 15
pg. 18
or other physical discomfort.
pg. 19
• Tool can be operated only by authorized personnel.
• Always dispose of or recycle battery according to local
ordinances / regulations.
Advertisement
Related Manuals for Global Industrial 298662
Summary of Contents for Global Industrial 298662
- Page 1 • Take time to fully read the manual in order to understand your tool and its operation. • Always wear gloves and suitable clothes, cover any long hair. • Always fully inspect the tool and accessories before use. • Always tightly wind cable onto drum before or during use. •...
- Page 2 Failure to observe these instructions could lead to serious injury or death. To avoid injury: Failure to observe these instructions could lead to serious injury or death. To avoid injury:...
- Page 3 Failure to observe these instructions could lead to serious injury or death. To avoid injury:...
- Page 4 1. Press the power switch (“ON/l”) of pulling tool, the display light will turn on on. Press the direction switch “▲”. "Green Light One" will light up, and the pulling tool is releasing the cable. Press the direction switch “▼”, “Green Light One" will go out and "Green Light Two"...
- Page 5 3.Battery power display The battery indicator light has three colors. 1) When the indicator light is green, battery charge is enough, and pulling tool can be used normally. 2) When the indicator light is yellow, charge it before use. 3) When the indicator is red, the battery power is running out. Please charge as soon as possible.
-
Page 6: Battery Power
During the installation, please confi rm that the power switch is at “OFF /O” position. Battery release button must be at the top, align the contact point of the battery against the corresponding contact point on the battery slot, slide the battery in, and gently press until the battery is locked in place. - Page 7 You need to use the original charger to charge the battery, after the battery loaded into pulling tool, insert the power cord of the charger into power outlet, and then insert the plug of the charger into the charging Failure to observe these instructions could lead to serious injury port of pulling tool: 1.When the red lights on the charger light up, the battery is charging.
- Page 8 Before using this machine to lift or pull a load, you should 1) Insert other electrical equipment and check the voltage familiarize yourself with your machine and it is important of the power outlet. to know how it works. 2) Confi rm the charger voltage is about 29.4VDC. See the This tool is a portable machine for lifting and pulling.
- Page 9 The following situations will cause the system to enter the protection state automatically. a. At 90% of the pulling capacity the overload indicator turns red b. The battery is overheating. Step 1: Put on gloves and attach the strap to the hook. c.
- Page 10 Step 8: Using a damper when pulling. When pulling, put a Step 5: Secure an anchor point. Using the swiveling damper, blanket or other heavy-duty material over the cable. anchor hook to attach the anchor point. Always make sure that the anchor you intend to use is capable of withstan- ding the load.
- Page 11 Snatch Block: change the pulling Gloves: Gloves play an important direction, increase the pulling force role in the installation and opera- of pulling tool, reduce the damage tion of pulling tool. The steel cable of the steel cable. of pulling tool is easy to cause skin damage and bleeding.
- Page 12 2.0Ah Both pulling tool, accessories and cables must be carefully maintained to prevent damage and wear after use. If the cable is damaged, it is recommended not to use it. Replace it as soon as possible. It is dangerous to use damaged cable. Before using, it is best to examine pulling tool and battery parts carefully.
