User's manual
Customer Service
US: 1-800-645-2986
SPECIFICATIONS
Motor:
Capacity:
Speed:
Frequency:
Voltage:
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986

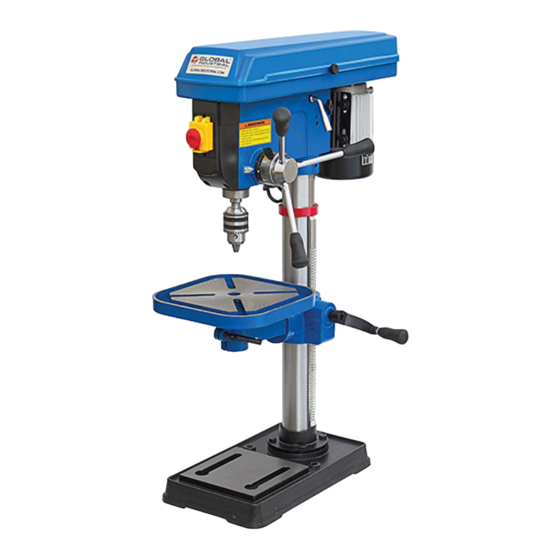

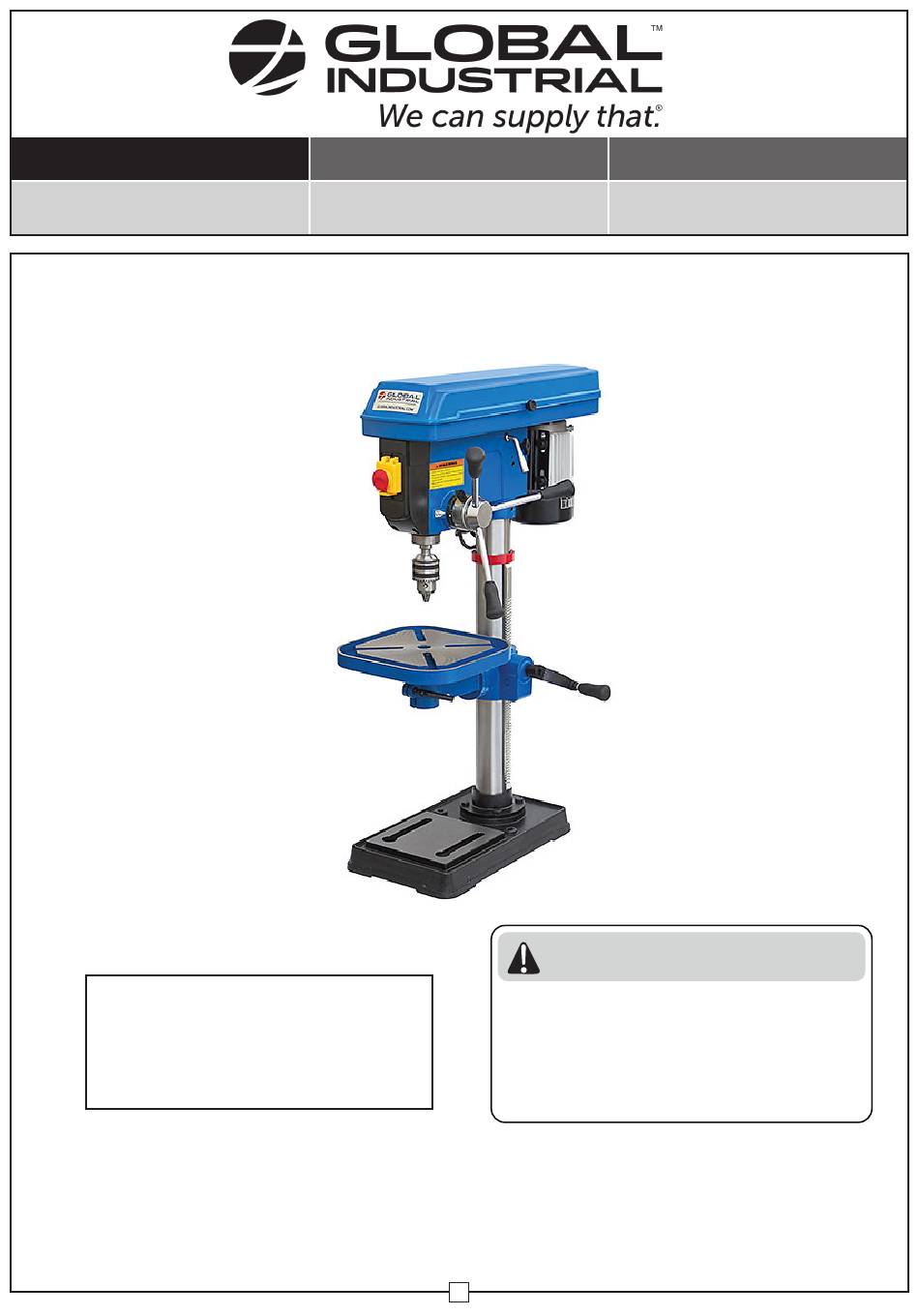

Bench Top Drill Press
Model(s): 257272
550W
16mm
16
60Hz
120V
WARNING
Read and understand all instructions
before operating this machine. Failure
to follow these instructions may result
in electric shock, fire, and/orserious
injury
1
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986
Advertisement
Table of Contents
Related Manuals for Global Industrial 257272
Summary of Contents for Global Industrial 257272
- Page 1 Manuel de l'utilisateur Customer Service Servicio de atención al Cliente Service à la clientèle US: 1-800-645-2986 Canada: 888-645-2986 US: 1-800-645-2986 Bench Top Drill Press Model(s): 257272 WARNING SPECIFICATIONS Motor: 550W Read and understand all instructions Capacity: 16mm before operating this machine. Failure...
-
Page 2: Safety Instructions
Bench Top Drill Press SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS 1. Keep your work area clean and well lit. Always keep the work area free of obstructions, grease, oil, trash, and other debris. 2. Never operate this machine in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. - Page 3 Bench Top Drill Press OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS 1. Install the machine on a flat, level bench top that is sturdy enough to support the weight and vibrations of the drill press. 2. Always wear protective safety glasses or goggles when operating the machine. 3.
- Page 4 Bench Top Drill Press ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Parts List Parts List Note: Note: Confirm that you have all components before beginning assembly CONTENTS CONTENTS Ref. Ref. Qty. Qty. Description Description Ref. Ref. Qty. Qty. Description Description Head Assembly Drill Chuck and Key Table Arbor Base Platform...
- Page 5 Bench Top Drill Press 1. Place the Base Platorm (3) on the bench top and attach the Column Assembly (4) using four hex bolts. 2. Remove top ring and lifting rack from Column Support Assembly (4). Place the rack into the Table Support Assembly (5) and attach to the Column Support Assembly.
-
Page 6: Operation
Bench Top Drill Press 8. Secure upper pulley cover of head assembly by installing locking knob. OPERATION OPERATION Properly adjust Drill Press components before drilling Properly adjust Drill Press components before drilling 1. Set the table to prefered height by undoing the table clamp bolt and turning the lifting crank. - Page 7 Bench Top Drill Press DRILL BIT TYPES DRILL BIT TYPES WARNING Ensure Drill Press is turned OFF and power cord is disconnected before opening belt box and adjusting drill speed. NOTE: Drill bits are not included with drill press Recommended Operating Speeds (in RPMS) Material SOFTWOOD HARDWOOD...
-
Page 8: Maintenance
Bench Top Drill Press 7. Adjust quill spring if return speed is too fast or too slow. Lower table for additional clearance if necessary. See figure for components. a. Hold spring cap (2) in place by jamming a flat head screwdriver in lower front notch (1), then remove outer jam nut (3). -
Page 9: Troubleshooting
Bench Top Drill Press TROUBLE SHOOTING TROUBLE SHOOTING Problem Possible Cause Corrective Action Incorrect belt tension Adjust belt tension lock knob Loose Motor Pulley Tighten motor pulley set screw Noisey Operation Loose Spindle Tighten spindle pulley nut Dry Spindle Lubricate spindle Speed is too high Reduce speed Drill with "pecking"...
