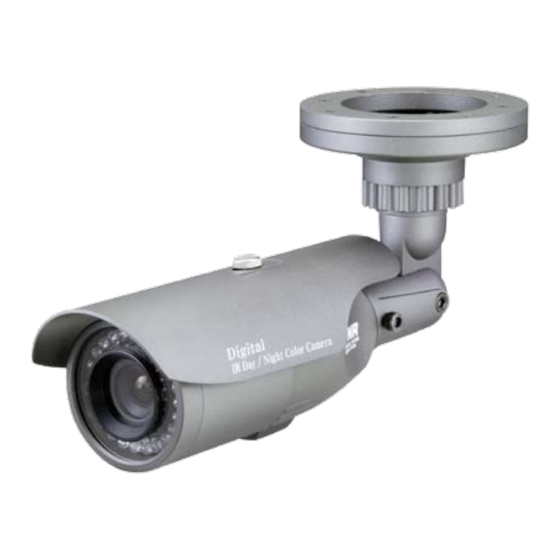

- Page 1 INSTRUCTION MANUAL VARI-FOCAL BULLET DAY/NIGHT COLOR CAMERA MODEL HDC577 Copyright © 2007 Clover Electronics U.S.A. All Rights Reserved.
-
Page 2: Installation
PRECAUTIONS • To avoid electrical shock, do not open the case of this product. • Operate this product using only the supplied AC Power supply. • Do not overload electrical outlets or extension cords; this can result in fire or electric shock. - Page 3 other. Connect the other end (BNC or RCA) of cable to the video devices such as DVR, monitor/TV. Plug the provided AC adapter to the DC jack (red) of the end of 100’ cable.
- Page 4 HOW TO ADJUST ANGLE OF VIEW 1. Vari-focal lens① Easily changeable angle of view: 4 to 9mm 2. Unplug the power supply and remove the sun-visor. Turn the front cover② and ③ counter-clockwise to open and adjust angle of view. Do not stamp your fingerprint on the window, which may affect picture quality.
-
Page 5: Troubleshooting
TROUBLE SHOOTING If the camera does not function properly, check the following points before contacting the service center. Troubles Remedies No video Check the AC adapter and video cable between the camera and a monitor The image on the screen is dark Check the brightness control on the monitor The image on the screen is dim... -
Page 6: Limited 2 Year Warranty
• Operating temperature -10°C to 50°C • Dimensions 100(W) x 120(H) x 255(D) mm • Weight 1.8Kg LIMITED 2 YEAR WARRANTY This warranty gives the original purchaser specific legal rights and you may also have other rights, which vary from state to state. If our products do not function because of any defect in material or workmanship, we will repair free of charges for 2 years on parts and labor from the date of original purchase. - Page 7 1-BNC to RCA Adapter 1-Hardware Accessories Kit 1-Instruction Manual 1-Warranty Registration Card...
