INSTALLATION

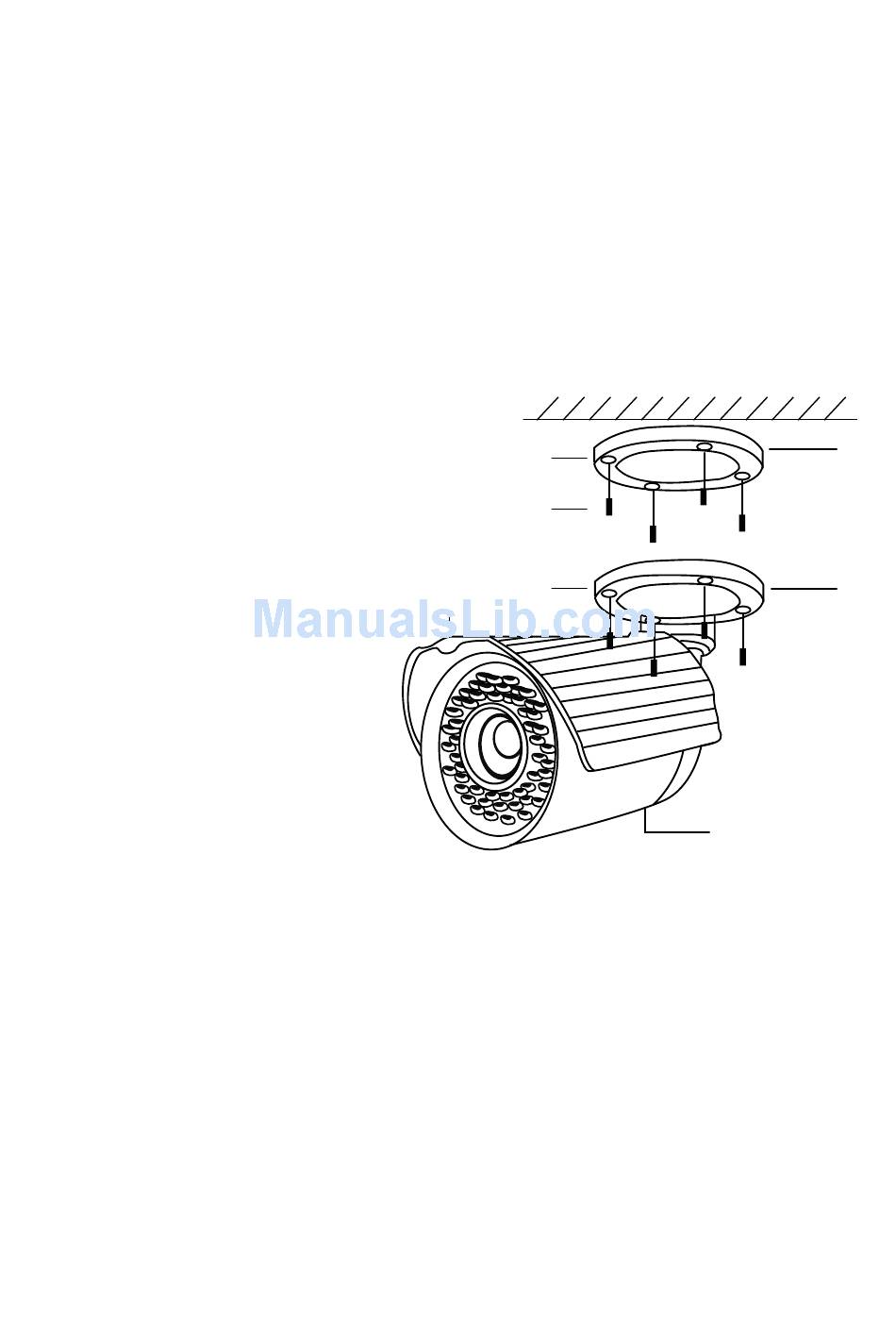

1. Attach the mounting bracket base ring① to the wall or ceiling, wherever you
want to install the camera. Locate a wall stud or ceiling joist and secure the
bracket base ring using the supplied screws. Attach the mounting bracket②
to the base ring① and secure them using the supplied screws.
2. Lock the mounting bracket with the locking ring③.
3. Turn the pivot locking screw④ with the provided hex-head wrench counter-
clockwise to set the
desired angle of camera
toward objects and turn it
clockwise to secure. It
can be used for wall-
mount or ceiling-mount
application depending on
setting this pivot locking
screw.
4. Loosen the locking
screw⑤ with the
provided hex-head
wrench and turn the
camera clockwise or
counter-clockwise to upright images on the screen and turn it clockwise to
secure.
5. Connect the one end of 100' cable (supplied) to the Din jack of 5' cable
attached to the camera. Make sure that two arrows on the top of them should
be aimed at each other. Connect the other end (BNC or RCA) of cable to the
video devices such as DVR, monitor/TV. Plug the provided AC adapter to the
DC jack (red) of the end of 100' cable.
6. Sun-visor⑥: Pull forward or backward to avoid the sunlight or other lighting
sources.
Base Ring
Screw
Backet
Sunshield
1
2
Case
