Clarion BKX-1321-03 Installation Manual

EXAMPLE
Use this hole
Remark: The fi xing position can be different between Audio and Multimedia unit!
2-DIN
Installation manual for:
Audi A4 2002 -->
With Symphony radio
* Mount the plates.
BKX-1321-03

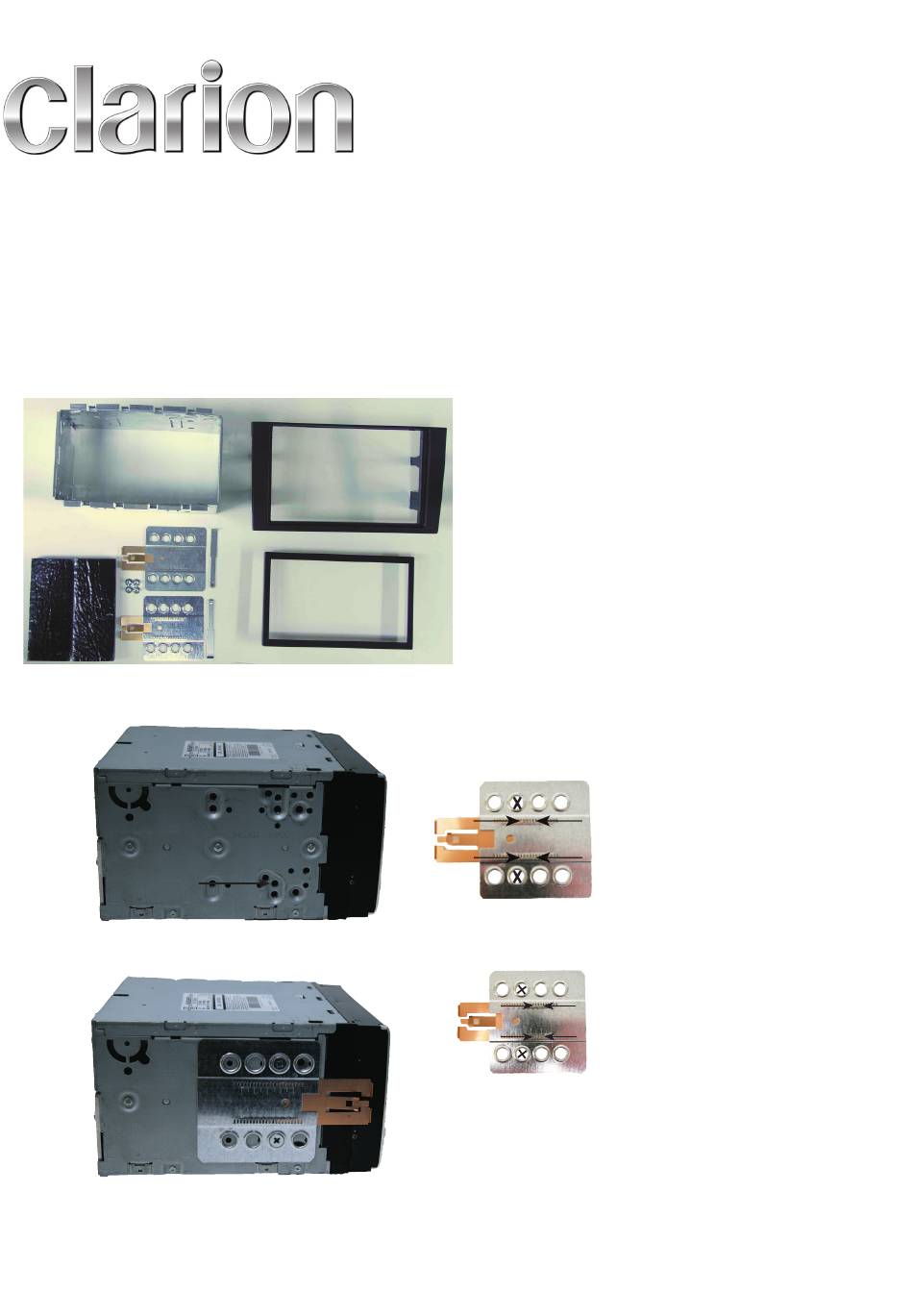

Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion
* 2X Radio keys
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 11 & 13 marked with an arrow.
Measured from left to right.
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 14 & 16 marked with an arrow
Measured from left to right.
