EXAMPLE
Use this hole
Use this hole
Remark: The fi xing position can be different between Audio and Multimedia unit!
2-DIN
Installation manual for:
Fiat Stilo 2005 -->
* Mount the plates.
BKX-1094-02

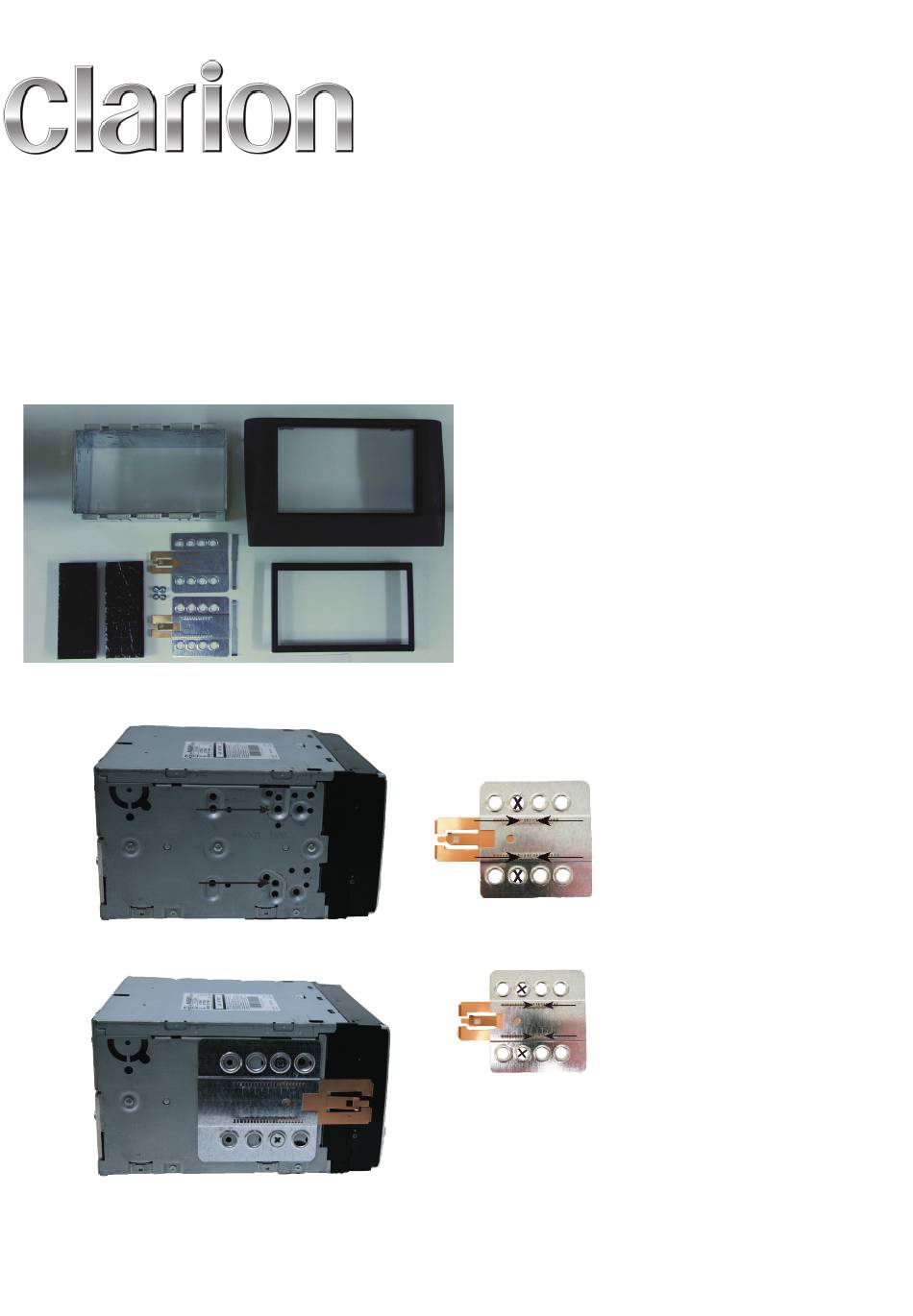

Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 11 & 13 marked with an arrow.
Measured from left to right.
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 14 & 16 marked with an arrow
Measured from left to right.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clarion BKX-1094-02
Summary of Contents for Clarion BKX-1094-02
- Page 1 2-DIN BKX-1094-02 Installation manual for: Fiat Stilo 2005 --> Installation kit includes the following items: * 1X 2-ISO 110 mm. metal bracket * 1X Radio trim * 1X Replacement panel * 2X Mounting plates * 2X Mounting spacers * 2X Radio removal keys...
- Page 2 2-DIN BKX-1094-02 Remove the original bracket this is Remove the orginal radio using Philips tighten by four screws. keys. Place the replacement panel and the 2- Place the headunit. Din metal bracket. Connect all of the needed wiring harnesses and check the connections carefully.
