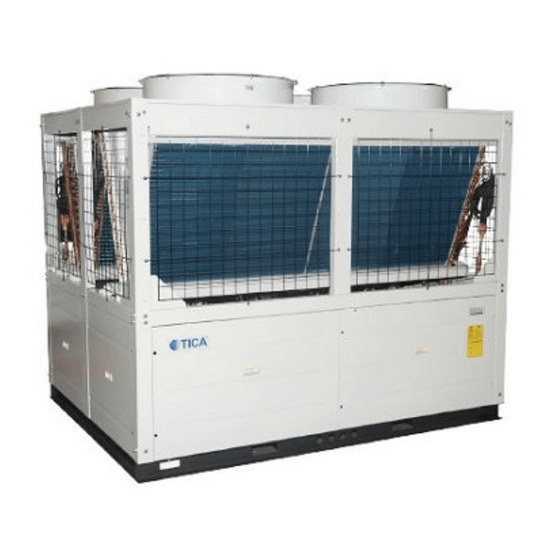

- Page 1 AIR-COOLED SCROLL-TYPE CHILLER INSTALLATION& OPERATION MANUAL Installation&Operation Manual Air-cooled Scroll-type Chiller Model: TAS-AH series、 TAS-BH series、 TAS-BHA series、TAS-BCA series...
-
Page 2: Table Of Contents
AIR-COOLED SCROLL-TYPE CHILLER Contents I. Overview ............................. 4 II. Safety Precautions ........................6 III. Unit Description ........................8 1. Scope of Application, Purposes and Characteristics ............8 2. Standard Compliance ......................9 IV. Specifications ........................10 1. Model Nomenclature ......................10 2. - Page 3 AIR-COOLED SCROLL-TYPE CHILLER 6. Environmental Protection Description ................. 59...
-
Page 4: Overview
AIR-COOLED SCROLL-TYPE CHILLER I. Overview This manual is the customer's property and should be used together with the unit. After work, put the manual back in the technical documentation bag and keep it properly. Please read through this manual carefully before installing the air conditioning unit, and install and maintain the unit according to the manual, ensuring normal and reliable operation of the unit. - Page 5 AIR-COOLED SCROLL-TYPE CHILLER Warning Do not use unqualified refrigerant, refrigerant substitute or refrigerant additive. Incorrect using method or using unqualified refrigerant, refrigerant substitute or refrigerant additive will lead to unit damage and various safety hazards. Please select qualified refrigerant. All the technicians operating refrigerant must have acquired qualification certificates, and know very well and strictly observe the technical requirements, laws and regulations related to refrigerant use, handling, recovery, and recycling.
-
Page 6: Safety Precautions
AIR-COOLED SCROLL-TYPE CHILLER II. Safety Precautions ◆ Before operating the unit, read all the items in "Safety Precautions" carefully. ◆ "Safety Precautions" lists all important items related to safety. To prevent electric shocks, fire and other possible injuries, be sure to bear in mind and strictly abide by the following rules: ... - Page 7 AIR-COOLED SCROLL-TYPE CHILLER implementing automatic anti-freezing protection of the air conditioning water system. The purpose is to protect facilities such as the unit and water pipeline against damage caused by freezing of water in the pipeline of the air conditioning water system.
-
Page 8: Unit Description
AIR-COOLED SCROLL-TYPE CHILLER III. Unit Description Scope of Application, Purposes and Characteristics Air-cooled scroll-type chiller uses the innovative modular design. The entire unit is composed of one or more modules, each of which consists of three or four independent cooling systems. The electric controllers of modules are independent of each other and modules are connected through communication cables to form a control network. -
Page 9: Standard Compliance
AIR-COOLED SCROLL-TYPE CHILLER have this function. Multi-protection design The modular design allows starting the unit in a hierarchical way, reducing the impact of the startup current on the power grid. The unit is equipped with multiple types of protection, including compressor overload protection, water shortage... -
Page 10: Specifications
AIR-COOLED SCROLL-TYPE CHILLER IV. Specifications Model Nomenclature T A S 165 A H Feature: heat pump type-H; all year heat hump-HA; all year cooling only-CA Design SN: A、 B (scroll-type,shell-type,R410A refrigerant) Model: 165, 260 ,340 or 460 Name code: air-cooled scroll-type chiller (heat pump) Technical Specifications Note: The performance parameters on the unit nameplate shall prevail if the following performance parameters differ from those on the nameplate. -
Page 11: Structure Diagrams
AIR-COOLED SCROLL-TYPE CHILLER installation shall be considered for the cooling (heating) capacity in actual application. Units of model are not allowed to run in cooling mode at an ambient temperature lower than 5° C. The specifications are subject to change due to product improvement without a prior notice;... - Page 12 AIR-COOLED SCROLL-TYPE CHILLER TAS460BH、TAS460BHA ↑ ↑ 地 脚 螺 栓 TAS260BCA DN8 0wat er inlet DN8 0wat er o utl e t ( Vi c taulic co upli n g) ( Vi c taulic co upli n g )
-
Page 13: Unit Installation
AIR-COOLED SCROLL-TYPE CHILLER V. Unit Installation 1. Key Points for Installation Acceptance After receiving units, a customer shall carefully check whether the unit casings and internal components are in good condition. If a unit is damaged, record it in the delivery note and notify the carrier and local sales office of the damage in written form within three days. - Page 14 AIR-COOLED SCROLL-TYPE CHILLER precast using cement. The unit can be supported by a bracket made of angle steel, with shockproof rubber pads. It can be also placed on the ground or flat roof. The base surface must be flat and horizontal. The figure below shows the foundation for modular combination installation of the TAS165AH,TAS260AH, TAS260BCA units.
- Page 15 AIR-COOLED SCROLL-TYPE CHILLER TAS460BH、TAS460BHA Notes: a indicates the number of modules of different models. For the values of m and n, see the table in the installation foundation diagrams. The foundation is made of reinforced concrete or channel steel frame, and is capable of bearing the weight of no less than 500 kg/m²...
- Page 16 Installation Spacing (mm) Model AIR-COOLED SCROLL-TYPE CHILLER ≥1000 TCA501XH 1720 ≥1000 TCA801XH 2400 ≥1800 ≥1800 ≥3000 Inlet/outlet pipe Unit height Side view Inlet/outlet pipe Top view The figure below shows the installation space of the TAS460BH、TAS460BHA units. ≥1800 ≥1800 1000 ≥5000 1000 1000...
- Page 17 AIR-COOLED SCROLL-TYPE CHILLER d. Install sewage valves and drain valves at the lowest positions of the main water inlet and outlet pipes and reserve drains around the unit. (3) Monsoon Area In the region of Monsoon, if air side heat exchanger is installed against monsoon, please install wind cap as request in case strong wind may affect air flow of the unit, meanwhile avoid snow accumulation when snowing.
- Page 18 AIR-COOLED SCROLL-TYPE CHILLER Snow cover Monsoon Snow cover 1.5m 1.5m Installation diagram of freezing area: Steel beam Reinforced concrete Underground drain Caution Anti-freezing and ice-melting engineering installation for heating unit used in North: A: For the unit to be used for northern heating, foundation must be prepared and cannot be made into a platform.
-
Page 19: Unit Installation
AIR-COOLED SCROLL-TYPE CHILLER supported at a height at least 1 m. The foundation of each unit must be independent to facilitate drainage. Never connect the supports of a row of units together. B: It is not recommended to install more than two rows of units. Otherwise, the ambient temperature of the units located in the middle position will be 5°... - Page 20 AIR-COOLED SCROLL-TYPE CHILLER allowed to stand below or near the unit for the sake of safety. Select the round steel, rope, and crane based on the weight of the unit. C: Use protection pads in places where steel ropes contact the unit, to prevent scratches or unit deformation.
-
Page 21: Installation Of The Water System
AIR-COOLED SCROLL-TYPE CHILLER TAS460BH(TAS340BH、TAS340BHA、TAS460BHA is similar with it) 4. Installation of the Water System Refer to the following table for the diameters of the main water inlet and outlet pipes of the unit. Cooling capacity 20 - 40 50 - 60 80 - 160 160 - 240 240 - 500... - Page 22 AIR-COOLED SCROLL-TYPE CHILLER Water flow switches have been installed inside the unit and they do not need to be installed on site. The water system of the unit shall ensure that water flow is evenly distributed between units. The water flow of the unit shall not be smaller than the value specified on the nameplate at any time as long as the unit is running.
- Page 23 AIR-COOLED SCROLL-TYPE CHILLER Water pumps must be selected based on the flow and the required head. The water pump is generally installed on the main water inlet pipe of the unit. When the outlet pressure of the water pump is greater than 0.8 MPa, it is recommended to install the water pump on the main water outlet pipe to prevent high pressure from damaging the unit.
- Page 24 AIR-COOLED SCROLL-TYPE CHILLER Install an energy storage water tank on the main return water pipe of the unit and calculate the water volume as per the method described in this manual. The energy storage water tank is used to adjust the capacity of the unit, reduce frequent compressor startup and shutdown due to load changes of the air-conditioning system, improve the operation efficiency of the system, and prolong the service life of the unit.
- Page 25 AIR-COOLED SCROLL-TYPE CHILLER Treatment or other relevant standards. Company will not bear any liabilities for the unit damage caused by water quality problems or improper processing of water quality. (4) Pressure Testing and Flushing The strength test pressure of the whole metal pipe network water system should be 1.5 times the design work pressure, but should not be smaller than 0.6 MPa.
- Page 26 AIR-COOLED SCROLL-TYPE CHILLER to be added for general sites, and baffle plates need to be installed in the water tank, to prevent short water flow. The figure below shows the general installation of baffle plates. Poor Poor Recommended Recommended Caution For occasions with a small water capacity, an energy storage water tank must be installed to ensure stable operation of the unit.
- Page 27 AIR-COOLED SCROLL-TYPE CHILLER 3-way ¼ 3-way Flow £ Bolt Flow guiding rod Horizontal pipeline Bolt Horizontal pipeline guiding rod Gasket ¾ Gasket £ Flow direction ≥ ≥ Flow direction ≥ ≥ 1" Flow The value of A must be counted from the nearest elbow, valve, 2"...
- Page 28 AIR-COOLED SCROLL-TYPE CHILLER drainage in winter. Other pipes: The pipeline installation directly affects the use effect of air-conditioning units. Only qualified installation team is allowed to install pipelines and the installation must comply with industrial standards. The following are some suggestions on pipeline installation: a.
- Page 29 AIR-COOLED SCROLL-TYPE CHILLER (10) Pipe Diameter Caution The pipe diameter affects the system operation resistance at the same flow rate. Choose pipes with a larger diameter when the condition permits, to reduce the system operation resistance and pump head. The following table lists the recommended ideal diameter design values for reference. Ideal flow rate of water in pipes (m/s) Water Pump Water Pump...
-
Page 30: Electrical Installation
AIR-COOLED SCROLL-TYPE CHILLER valve is installed, the number of installed 2-way valves cannot exceed 50% of the total number of air-side devices. The purpose is to prevent an excessive number of closed 2-way valves under partial load operating conditions. Otherwise, the water resistance is too large, the pump is overloaded and damaged, and the unit cannot work properly. - Page 31 AIR-COOLED SCROLL-TYPE CHILLER The distance (i.e., the voltage drop) between the chiller installation position and the power distribution cabinet and the current size should be considered for the conducting wire diameter. Then, decide the power distribution line path and the main switch capacity to ensure normal operation of the unit.
- Page 32 AIR-COOLED SCROLL-TYPE CHILLER L1 L2 L3 N PE Main power supply nut Copper bar Bolt fixing hole Copper bar installation diagram Tin-plated copper bar (AXB) Bottom Insulator 8-Ø10 copper rod fixing hole To power wire of each module To master unit To slave unit 1 To slave unit 2 Caution:...
- Page 33 The selected phase sequence protector must be able to reset automatically. Recommended model: DPB52CM44; brand: CARLO GAVAZZI (which can be procured from TICA) For a set of parallel master/slave units, it is sufficient to add a phase sequence protector.
- Page 34 AIR-COOLED SCROLL-TYPE CHILLER (5) Unit Interconnection Schematic Diagram Caution The following circuit diagrams are applicable to standard units. The circuit diagram in the manual may differ from the actual circuit diagram pasted to the unit due to product innovation and improvement. The circuit diagram pasted to the unit shall prevail.
- Page 35 AIR-COOLED SCROLL-TYPE CHILLER (6) Description of the DIP Switch on the Main Board A. Functions of the S1 DIP Switches S1-1 S1-2 S1-3 S1-4 Master Pressure unit sensor Reserved Reserved Pressure Slave unit switch S1(5678)(Master unit: number of slave units; slave unit: address of slave unit) S1-5 S1-6 S1-7...
- Page 36 AIR-COOLED SCROLL-TYPE CHILLER Functions of the S3 DIP Switch S3-1 S3-2 S3-3 S3-4 Compressors TAS165 in parallel connection Single TAS260 compressor TAS340/460 D. Description of unit configuration Model Refrigerant Pressure sensor type Fan system Water system TAS165AH、TAS260AH、 R410A Pressure switch Shared air Shared water TAS260BCA...
- Page 37 AIR-COOLED SCROLL-TYPE CHILLER failure too high. Inner coil 2# temperature Failure 22 Failure 30 An unrecoverable failure occurs. failure The domestic water outlet Failure 23 System 1# high pressure Failure 31 temperature is too high Failure 24 System 2# high pressure Failure 32 Low voltage failure Air discharge temperature...
-
Page 38: Unit Commissioning And Operation Description
AIR-COOLED SCROLL-TYPE CHILLER VI. Unit Commissioning and Operation Description Caution Be sure to check the entire air conditioning unit system before powering on for trial operation. Pay attention to the following aspects: Checking the air-side devices of the air conditioner ... - Page 39 AIR-COOLED SCROLL-TYPE CHILLER sensed accurately. 4. Checking the unit Check whether the appearance of the unit and the piping system inside the unit are in good condition after transportation and handling. Check whether the electrical lines of the unit are correct, whether the water flow switch is installed and connected to the control loop, whether the pump contactor is interlocked with the control loop, and whether the main water outlet temperature probe of the unit is connected to a correct position.
-
Page 40: Operation Description Of The Unit Controller
AIR-COOLED SCROLL-TYPE CHILLER VII. Operation Description of the Unit Controller 1. Safety Precautions Caution The controller of the air-cooled chiller is a precise assembly. Be sure to read through this controller manual carefully before performing any operation. Any misoperation may damage the unit or cause personal injury. Pay attention to the following points during installation and use: Installation precautions ●... -
Page 41: Application Scope
AIR-COOLED SCROLL-TYPE CHILLER ● When the controller is faulty, uses are not allowed to repair it at discretion but contact the manufacturer in a timely manner. ● The unit can be maintained and repaired only when the unit is powered off and the power supply is cut off. -
Page 42: Unit Operation Description
AIR-COOLED SCROLL-TYPE CHILLER Unit Operation Description (1) Wired controller instructions (A) Output of 120 touch-type wired controller: (120 touch-type wired controller dimensions: 120mm*120mm, Bottom mounting hole spacing: 60mm) Icon Name Function Query 1) Query errors on the main interface. 1) Tap Menu to enter the function menu on the default interface. Menu 2) Tap Menu to return to the preceding level of menu on the setting interface or query interface. - Page 43 AIR-COOLED SCROLL-TYPE CHILLER Main interface Jan. 1, 2019, 12:00:00 The display screen displays current time information in the first line, Unit status: Cooling the current water inlet and outlet temperatures and set values of the Air conditioner water outlet: unit in the second and third lines respectively, and the ambient 30.5°...
- Page 44 AIR-COOLED SCROLL-TYPE CHILLER 1) Temperature sensor values, including ambient temperature, discharge temperature, suction temperature, coil temperature, water inlet/outlet temperature and return air temperature, etc. Unit Port Status 2) Pressure sensor value 3) Operating current of unit 4) EXV steps 1) Operating mode settings, including mode and temperature. 2) Configuration parameter settings, including centralized control parameter Modify User Parameters...
- Page 45 AIR-COOLED SCROLL-TYPE CHILLER Interface Function Description Page Note 1. Homepage is the initial page after the touch screen is powered on and reset. 2. Water temperature set values and actual values are displayed. Homepage 3. Temperatures can be set. 4. The unit operating status, touch screen communication and fault can be observed;...
-
Page 46: Viiiunit Maintenance
AIR-COOLED SCROLL-TYPE CHILLER VIII Unit Maintenance Air-cooled chillers are highly automated devices. Therefore, check the operation status periodically. Long-term and effective maintenance can greatly enhance the operation reliability of the unit and prolong the unit's service life. Pay attention to the following points during maintenance and servicing: (1) Clean the water filter installed outside the unit periodically to ensure the cleanliness of water in the system and prevent unit damage caused by clogging of the filter. - Page 47 AIR-COOLED SCROLL-TYPE CHILLER next time. If the water quality is bad, replace the water and clean the filter. (10) Check the system pipeline. Check whether proper measures are taken to prevent leakage, rust, and corrosion, ensure the pipeline is airtight, and check whether there is any risk of soaking or rust if the unit is stopped for a long period of time.
-
Page 48: Common Fault Analysis Of The Unit And Handling Methods
AIR-COOLED SCROLL-TYPE CHILLER IX. Common Fault Analysis of the Unit and Handling Methods The unit may get faulty to different degrees during use. The table below provides some common faults and their handling methods. If the unit gets faulty, the user needs to contact an authorized distributor or branch company of company and cannot try to repair it independently. - Page 49 AIR-COOLED SCROLL-TYPE CHILLER Common Fault Cause Solution ☆ Insufficient refrigerant, insufficient ☆ Repair leaking points and add cooling capacity and low refrigerant ☆ Strengthen thermal insulation evaporation temperature ☆ The thermal insulation of the of the pipeline and expansion The cooling water system is poor water tank capacity is...
- Page 50 AIR-COOLED SCROLL-TYPE CHILLER Common Cause Solution Fault ☆ The operating conditions of ☆ Check whether the operating air-conditioning are improperly conditions of air-conditioning The unit cools selected are improperly selected ☆ The four-way valve has loosened ☆ Repair the four-way reversing properly but does not heat wires or burned or stuck coils...
-
Page 51: After-Sales Service
AIR-COOLED SCROLL-TYPE CHILLER X. After-sales Service Caution Improper maintenance or repair may cause water leakage, electric shocks or fire. Ask authorized seller or service personnel for help when the unit needs to be moved or re-installed. Warranty Warranty details are subject to the order contract. -
Page 52: Other Information
AIR-COOLED SCROLL-TYPE CHILLER XI. Other Information A separate "control accessory box" contains a remote controller, a remote controller communication cable, temperature sensor blind pipe, main water temperature sensor, installation operation manual, and other components. Trial operation can be carried out only after correct installation on site. - Page 53 AIR-COOLED SCROLL-TYPE CHILLER M4× 25 screws 5. Install the wired controller body back to the backplane (in the opposite direction of removing). Note: User needs to purchase a 86mm× 86mm exposed junction box for installation. 2) Installation of 7" touch screen: When the remote controller is installed inside the control cabinet in the equipment room, remove the control box of the remote controller and install the remote controller as follows:...
-
Page 54: Auxiliary Electric Heater
AIR-COOLED SCROLL-TYPE CHILLER When the remote controller needs to be installed on the wall, install it as follows: Step 1: Select a proper position for installation, open a hole on the wall or installation Step 2: board as shown in the figure below, install the M6 fastening bolts, and tighten the Align the large holes of installation holes on the rear side bolts. - Page 55 AIR-COOLED SCROLL-TYPE CHILLER Temperature ° C 0.15 0.25 0.35 0.45 0.15 0.25 0.35 0.45 0.15 0.25 0.35 0.15 0.25 Remarks: a. Auxiliary electric heaters are not required for cells left blank in the table in terms of energy balance. However, in order to ensure smooth operation of the chiller and prolong the service life of the chiller, it is recommended that auxiliary electric heaters be configured when the outdoor atmospheric temperature is lower than or equal to 2°...
- Page 56 AIR-COOLED SCROLL-TYPE CHILLER (2) Installation and Use Description When the air-cooled chiller runs in heating mode in winter, its heating capacity declines with the drop of the outdoor ambient temperature. Auxiliary electric heaters are installed to facilitate the operation of the air-cooled chiller. An auxiliary electric heater is connected to the water outlet pipeline in parallel during engineering project.
-
Page 57: Interlock Controller
AIR-COOLED SCROLL-TYPE CHILLER 3. Interlock Controller A standard unit is equipped with an interlock control interface at delivery. Customers can select an interlock controller and connect wires correctly to implement interlock control between indoor air-side devices and the chiller. A single interlock controller can control 8 air-side devices in an interlocked manner, two interlock controllers can accommodate 15 air-side devices, and so on. -
Page 58: Description Of The Connection Between The Temperature Sensing Probe/Water Pump And The Chiller
AIR-COOLED SCROLL-TYPE CHILLER pipe on site, so as to truly reflect the water outlet temperature of the unit and make the unit work properly. The following provides details of installing a water outlet temperature sensing probe. The main water outlet temperature sensing probe of the unit is in the control accessory box. Take the probe out of the box and install it correctly. - Page 59 The service life is specified by TICA. The environmental protection service life is not equivalent to the service life of safe use.
- Page 60 The actual configuration of sold products should prevail. Warning The copyright of this manual belongs to Nanjing TICA Climate Solutions. Anyone without consent or authorization shall not copy, reproduce or extract this manual without permission. TICA reserves the right to sue.
- Page 61 +7 915 650 85 85, +7 969 190 85 85 E-mail: info@tica.pro www.tica.pro Note: Due to constant improvement and innovation of TICA's products, the product models, specifications and parameters contained in this document are subject to change without prior notice.
Need help?
Do you have a question about the TAS-AH Series and is the answer not in the manual?
Questions and answers

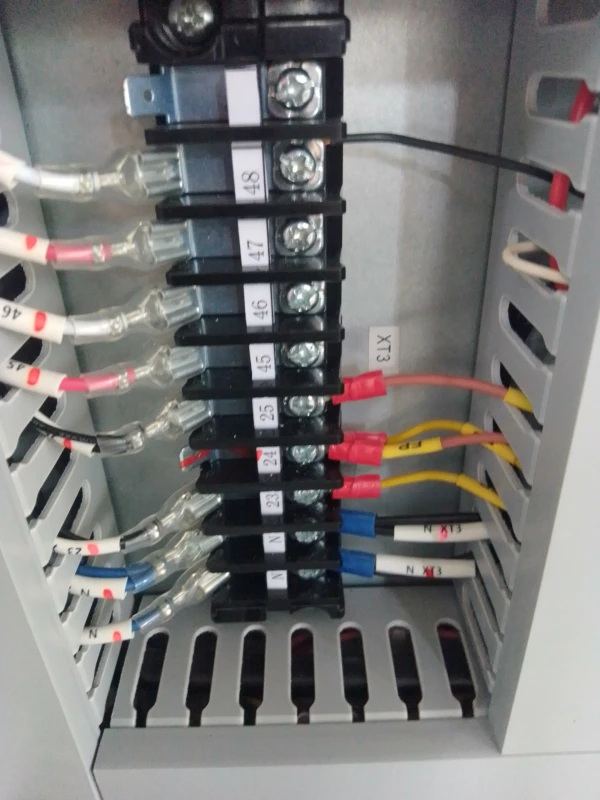

Go no power output on terminal 47 and 48 for the water pump contactor
The possible causes of no power output on terminal 47 and 48 for the TICA TAS-AH Series water pump contactor could include:
1. Main Controller Power Supply Issue – The main controller must use the same power supply as the unit. If the power supply is incorrect or unstable, the terminal may not output power.
2. Incorrect Wiring or Loose Connections – Check the wiring between the main power supply, controller, and terminals 47 and 48 to ensure proper connections.
3. Breaker or Fuse Issue – A tripped circuit breaker or blown fuse could prevent power from reaching the terminals.
4. External Interlocking Failure (Failure Code 02) – If there is an external interlocking fault, the system may prevent power output to the water pump contactor.
5. Communication Error with Master Unit (Failure Code 04) – If the communication between the master and slave units fails, power output may be affected.
6. System Overload (Failure Code 15 or 16) – If the system detects an overload condition, it may shut down power to certain components, including the water pump contactor.
7. Faulty Water Flow Detection (Failure Code 01 or 08) – If the system detects insufficient water flow, it may disable power output to the pump to prevent damage.
Checking these potential issues should help identify and resolve the problem.
