Iiyama OMK4-1 User Manual

Mounting Kits OMK4-1 / OMK4-2
For ProLite TF3239MSC, ProLite TF4339MSC, ProLite TF4939UHSC, ProLite TF5539UHSC, ProLite TF6539UHSC

CHECKING THE CONTENTS OF THE PACKAGE

The following parts are included in the package and make sure you have all of them. If anything is missing or damaged, please contact
your local iiyama dealer or regional iiyama office.
Mounting Kits Monitor
ProLite TF3239MSC
OMK4-1
ProLite TF4339MSC
ProLite TF4939UHSC
OMK4-2 ProLite TF5539UHSC
ProLite TF6539UHSC

SPECIAL NOTES

Specified L-Brackets and M6 Screws are necessary to mount an open frame monitor.
CAUTION ■ The L-Brackets are designed to be mounted to specific wall types and hardware, in accordance with the user
manual supplied with the Mounting Kits.
■ Using L-brackets and screws other than those specified in the user manual may damage the monitor.

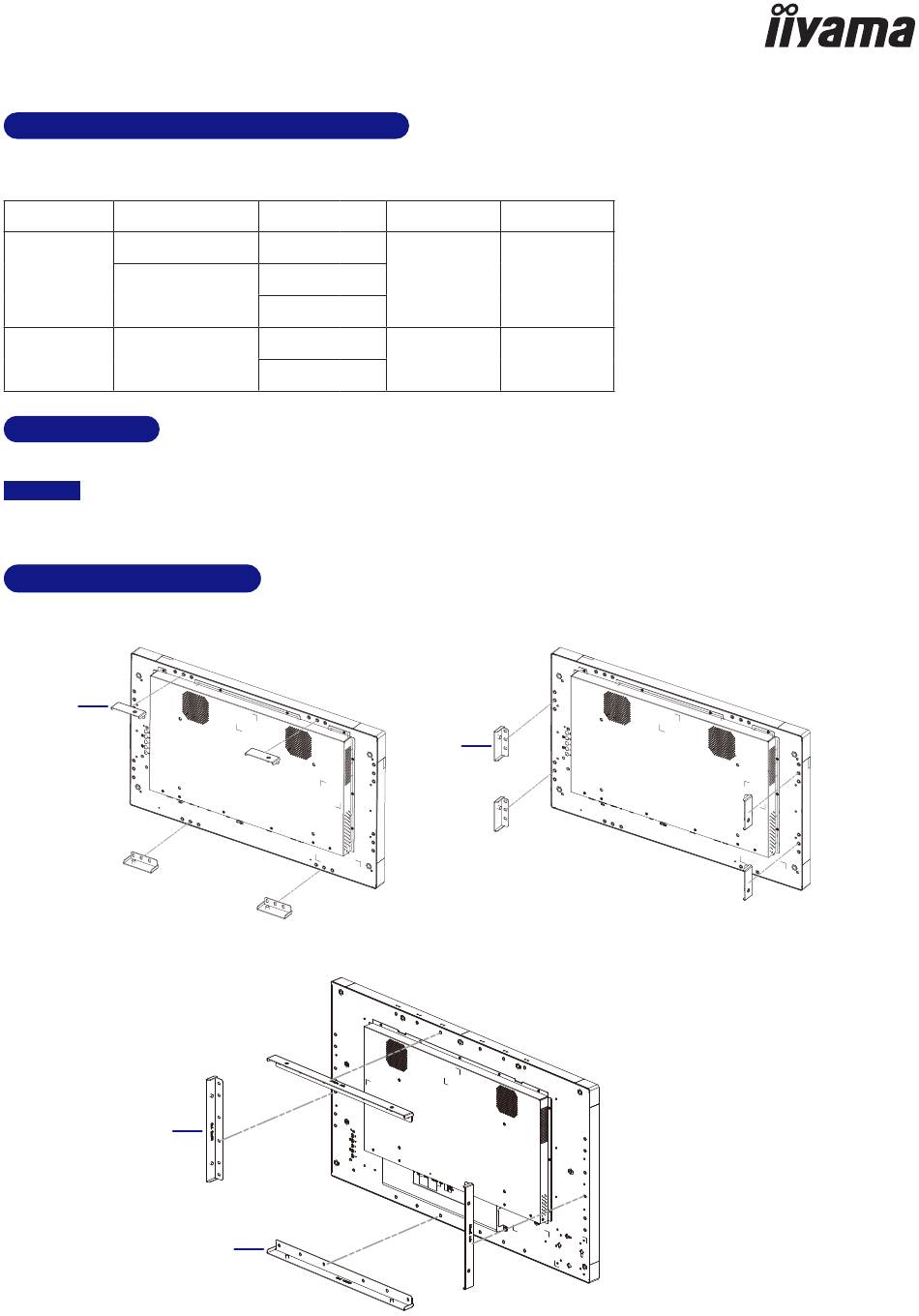

ATTACHING THE L-BRACKETS

 ProLite TF3239MSC
EP32TF3
 ProLite TF4339MSC
OPT 200
L-Bracket (Q'ty)
EP32TF3 (4pcs)
OPT 200 (2pcs)
OPT 400 (2pcs)
OPT 200 (4pcs)
OPT 400 (2pcs)
Depending on the monitor orientation (portrait or landscape) you choose, attach the L-Brackets to the
left and right hand sides or the upper and lower sides of the monitor with the 12pcs of M6 Screw as shown
below.
Attach the L-Brackets to the monitor with the 24pcs of M6 Screw as shown below.
OPT 400
User manual
M6 Screw User Manual
(L=6mm) (this document)
24pcs 1pc
36pcs 1pc
EP32TF3
M099A10
