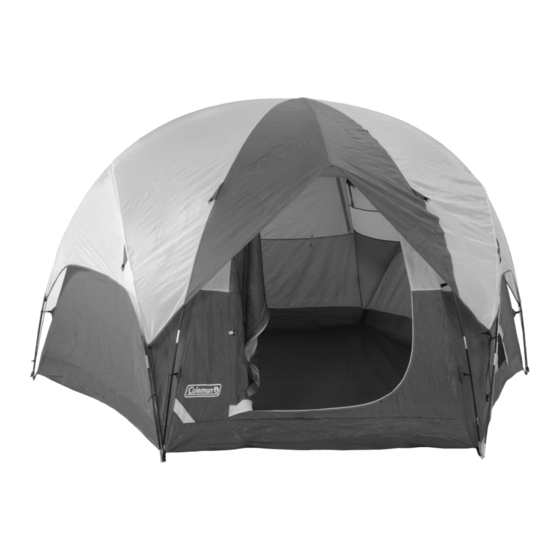

Coleman RANGEVIEW 5 9230-110 User Manual

Before you begin
Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard
or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees.
• For best results in windy conditions, position end of tent into
the wind.
• Enlist the help of at least one other person to assist you when
it is time to assemble the tent.
Parts and Components
Description
Main Poles, Black (2)
Side Poles, Gray (2)
Long, Side-to-Side Pole, Black (1)
Rainfly Pole, Black with Plastic Tips (1)
Rainfly
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the
door facing the desired direction. Unzip door.
2. Stretch six corners of tent until
floor is taut then hammer stakes
through loops to secure. (Fig.1)
3. Assemble all interlocking shock-
corded, black and gray tent poles,
separate by size and set aside.
4. Insert black & gray poles through
sleeves in top of tent as shown. (Fig. 2)
Black Main Poles
Long, Side-to-Side,
Black Pole
Front Door of tent
5. Insert one end of each diagonal
black pole into pins in rear corners
of tent. (Fig. 3)
6. Go to opposite end of each pole
and gradually apply pressure to the
pole forming an arch. Insert the pin
into the pole
end at the tent
corners. Repeat
with remaining
Gray Side Poles
and long, Side-
to-Side Black
Pole. (Fig. 4)
Fig. 4
RANGEVIEW
Part Number
9230-1151
9230-1161
9230-1171
9230-1181
9230-1191
(diagonally)
Gray Side Poles
(front to back)
Fig. 3
5
TM
MODEL 9230-110
To Set Up Tent
7. Attach frame clips along edges
of tent to all gray and black
frame poles (Fig. 5)
To Attach Rainfly
1. Open rainfly and lay out flat
with seams and small pockets
facing up.
2. Insert plastic tip of black rainfly
pole into first pocket on rainfly.
(Fig. 6)
3. Insert other plastic tipped end
of rainfly pole into pocket on opposite side of rainfly.
4. Turn rainfly over and drape over tent making sure rainfly pole
is centered over the door. (Fig. 7)
NOTE: When positioned properly, seams on rainfly will
always align with
poles on tent.
Fig. 1
Fig. 2
5. Secure rainfly to tent poles
with hook & loop fasteners
located on underside of rain-
fly. (Fig. 8)
6. Hook clips on elastic
loops of rainfly onto rings
on all corners of the tent.
(Fig. 9 & 10)
Fig. 10
(continued)
Fig. 5
Fig. 7
(continued on other side)
Fig. 6
Fig. 8
Fig. 9
