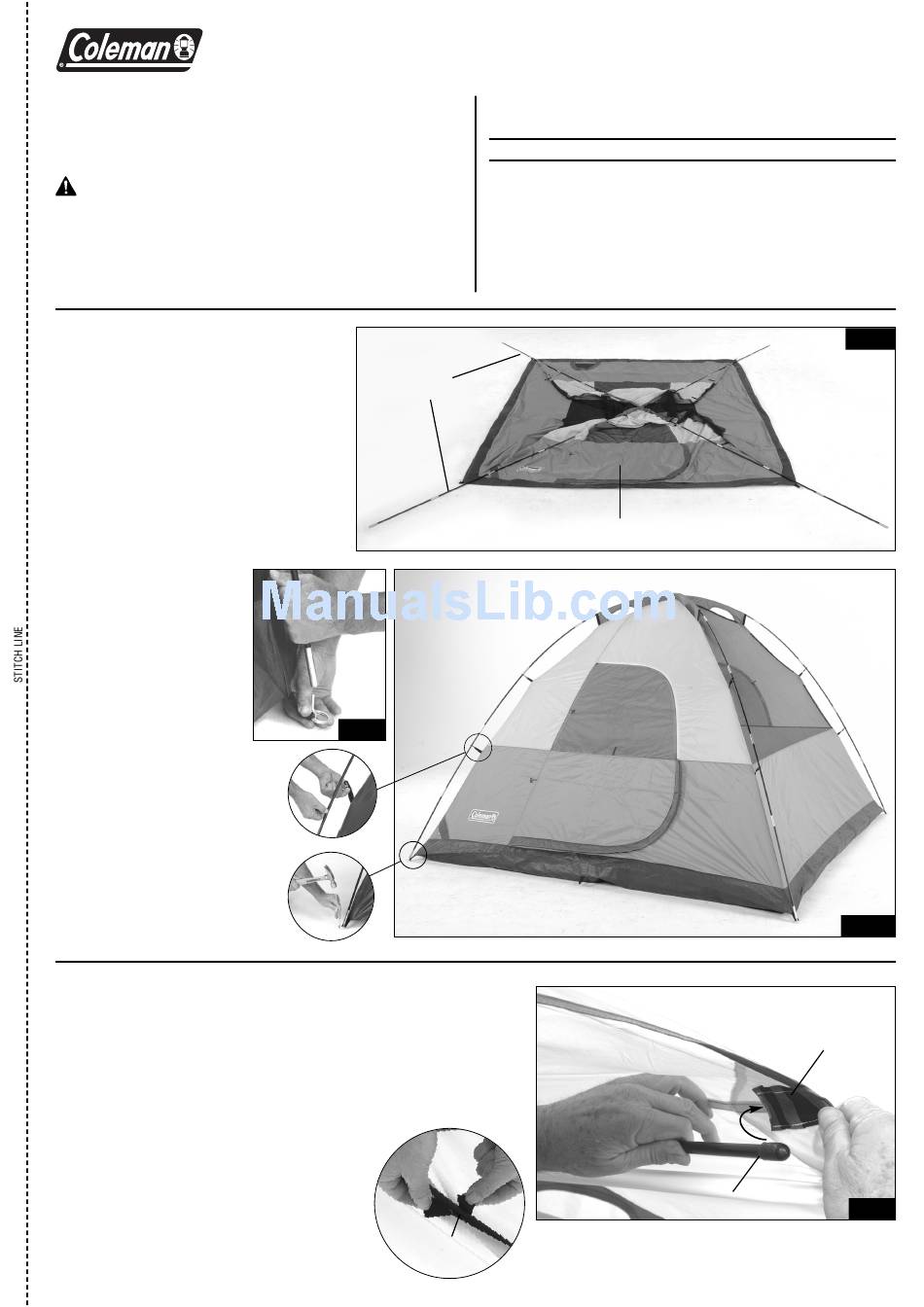

Coleman MEADOW FALLS 2000001390 Installation Instructions

Before you begin
Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard
or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees.
• For best results in windy conditions, position end of tent into
the wind.
• Enlist the help of at least one other person to assist you when
it is time to assemble the tent.
To Set Up Tent
1. Unfold tent and spread out on a clean,
level surface with the door facing the
desired direction. (Fig. 1)
2. Assemble two main tent poles by inter-
locking the longer, black shock-corded,
poles.
3. Insert both, long, black poles through
sleeves in top of tent as shown. (Fig. 1)
4. Insert one end of each
black pole into pins in
front corners of tent.
(Fig. 2)
5. Go to opposite end of
each pole and gradually
apply pressure to the pole
forming an arch. Insert
the pin into the pole end
at the corners of tent.
(Fig. 3)
6. Attach frame clips along
edgesof tent to black
main poles. (Fig. 3A)
7. Stretch corners and sides
of tent until floor is taut
then hammer stakes
through loops to secure.
(Fig. 3B)
To Attach Rainfly
1. Assemble the black interlocking shock-corded ridge pole with
rubber tips.
2. Unfold rainfly. Locate the web pockets on front and back of rainfly,
and the hook & loop fasteners on the underside of rainfly.
3. Insert rubber-tipped ends of ridge pole into web pockets located
on both sides of underside of the rainfly. (Fig. 4)
4. Locate hook & loop fasteners on the rainfly
and wrap around black ridge pole to secure.
(Fig. 4A)
(continued on other side)
MEADOW FALLS
Long, Black,
Shock-corded
Main Poles
Fig. 2
3A
3B
Black Ridge
TM
LONG FLY 10' X 10'
MODEL 2000001390
Parts and Components
Description
Main Poles, Long, Black (2)
Ridge Pole w/rubber tips, Black (1)
Rainfly
4A
Pole
Door
Black Ridge Pole
Part Number
5010000380
5010000381
5010000490
Fig. 1
Fig. 3
Web
Pocket
Fig. 4
