Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear safety
instructions
footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or
9
replacement of damaged parts. Use recommended parts only. The use of improper parts may be
dangerous and will invalidate the warranty.
Locate the jack in an adequate, well lit working area for its function.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place wedges under wheels of vehicle (but ensure wheels of jack can move freely ).
9
Ensure the vehicle handbrake is engaged (or in "PARKED" mode), and switch the engine off.
9
Ensure minimum distance of 0.5m between vehicle tilt & static objects such as doors, walls, etc.
9
Ensure all non essential persons keep a safe distance whilst the jack is in use.
9
Ensure there are no passengers in the vehicle to be jacked up.
9
Place jack under vehicle manufacturer's recommended lifting points (see vehicle hand book).
9
Check that the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
WARNING: The jack is a lifting device only.
To support the load always use axle stands (available from your Sealey stockist).
9
Ensure there are no persons or obstruction beneath the vehicle before lowering.
9
Use a qualified person to lubricate and maintain the jack.
9
Use only hydraulic jack oil.
9
When not in use store jack in a safe, dry, child proof area in the lowered position.
9
DO NOT jack vehicle which may result in spillage of fuel, battery acid, or dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT operate the jack if damaged.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT use the jack for purposes other than which it is intended.
8
DO NOT top up the hydraulic unit with brake fluid. Use hydraulic oil only.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT allow the vehicle to move whist lifting or lowering.
8
DO NOT use the jack to move vehicle.
8
DO NOT adjust the safety overload valve.
8
2. INTRODUCTION
Twin piston rocket lift brings the lifting arm straight into contact with the jacking point in a minimal amount of
strokes. Universal joint release mechanism allows safer and more controlled lowering of the jack. Profiled lifting
arm gives low entry height of just 70mm, making this unit suitable for sports and custom cars. Heavy-duty chassis
with strengthening flanges along the side, for extra torsional rigidity under load. One-piece hydraulic unit, heavy-
duty pump-through action preventing handle locking at maximum ram extension. Overload safety valve prevents
maximum weight capacity being exceeded and white saddle with rubber jack pad, aids secure positioning under
vehicle. Foam Jack Handle Sleeve to prevent damage to the vehicle's bodywork.
3. SPECIFICATION
Model No: ............................................................... 1500SLR
Applicable Standards: ....................... EN1494:2000+A1:2008
Capacity: .................................................................. 1.5tonne
Consumable Parts: .... Replacement Rubber Jack Pad - JP11
Length: ....................................................................... 915mm
Maximum Chassis Height: ......................................... 150mm
Maximum Saddle Height: ........................................... 610mm
Minimum Saddle Height: .............................................. 70mm
© Jack Sealey Limited

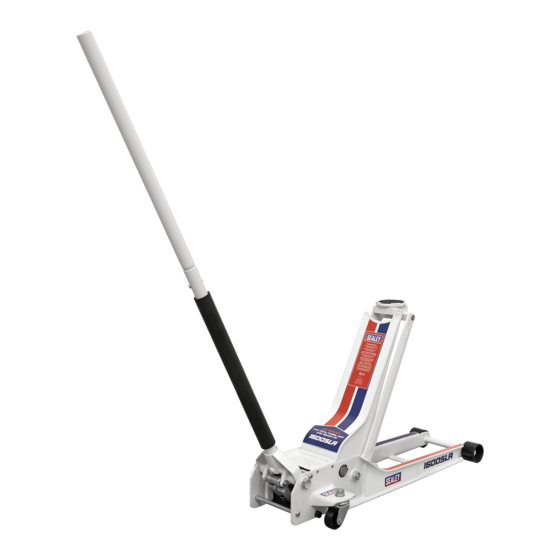

SEALEY TROLLEY JACK 1.5 TONNE LOW
PROFILE ROCKET LIFT
1500SLR
MODEL NO:
Original Language Version
TJL3
Apply
h ndbr ke
1 3 5
2 4 R
Use on
h rd level floor
Chock
wheels
j ck c p city
Close
Lower
OR
Lift & twist
to lower
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
1500LR
Issue 2 (H)
11/04/2023
Never
exceed
R ise
R ise
