Read all the following information and instructions prior to installing and operating the equipment.
Failure to comply with these instructions could result in bodily injury or property damage.
IOM
Controls 04/2020
Eaton Filtration LLC,
44 Apple
Street, Tinton Falls,
Installation, Operation & Maintenance Manual
Control Panels for Automatic Self-Cleaning Strainers
REV B.
NJ
07724
www.eaton.com/filtration

TABLE OF CONTENTS

Introduction ...................................................................... 1
Receiving, Handling, and Inspection ................................. 2
Storage .............................................................................. 2
Operating Modes .............................................................. 2
Continuous Backwash .......................................... 2
Automatic Backwash (Timed Cycle) .................... 2
Valves ................................................................................ 2
Valve Selection ..................................................... 2
Backwash/Blow-Down/Drain Valve ..................... 3
Electric Actuators ................................................. 3
Pneumatic Actuators ............................................ 3
Differential Pressure Switches .......................................... 4
Switch Description................................................ 4
Mounting, Piping and Wiring ............................... 4
Adjustment........................................................... 4
Control Panel ..................................................................... 5
Description ........................................................... 5
Cycle Time Sequence............................................ 5
Standard Features ................................................ 5
Operating Modes.................................................................... 6
Changing Backwash Timer Settings..................................... 6
SmartWire-DT Error Messages............................................. 7
System Error Messages......................................................... 7
Electrical Schematic Diagram ........................................... 8
Typical Installation ........................................................... 9

INTRODUCTION

An automatic, self-cleaning strainer requires a control
system to provide flexibility and optimize performance of
the straining operation. A number of standard options
are available or specify a custom designed control
system.
This manual will define the installation requirement,
operation, and maintenance of the Eaton control system.
Phone:
732-212-4700
Model 596 and Model 2596
Page
1
of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 596 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton 596

  • Page 1: Table Of Contents

    A number of standard options are available or specify a custom designed control system. This manual will define the installation requirement, operation, and maintenance of the Eaton control system. Page of 9 Controls 04/2020 REV B.
  • Page 2: Receiving, Handling And Inspection

    Store all components in an indoor, clean, and dry environment. Protect from temperature Eaton provides a control panel, containing all necessary relays, extremes. Mark cartons to protect from handling abuse. timers, lights, switches, etc. This will initiate and monitor the intermittent backwash cycles.
  • Page 3: Backwash/Blow-Down/Drain Valve

    Installation, Operation & Maintenance Manual Control Panels for Automatic Self-Cleaning Strainers Model 596 and Model 2596 PNEUMATIC ACTUATORS STRAINER MODE OF OPERATION CONTINUOUS BACKWASH A double-acting piston design that uses a clean air supply Several valves are required for various applications. Ball valves of 40-125 psi pressure, powers the actuator properly.
  • Page 4: Differential Pressure Switches

    Installation, Operation & Maintenance Manual Control Panels for Automatic Self-Cleaning Strainers Model 596 and Model 2596 DIFFERENTIAL PRESSURE SWITCHES DIFFERENTIAL SWITCH ADJUSTMENT SWITCH DESCRIPTION While it is possible to use other equipment than what is (SINGLE OR DUAL ELEMENT) described below, any installation should have the items A diaphragm type differential control with single switch is described here.
  • Page 5: Control Panel

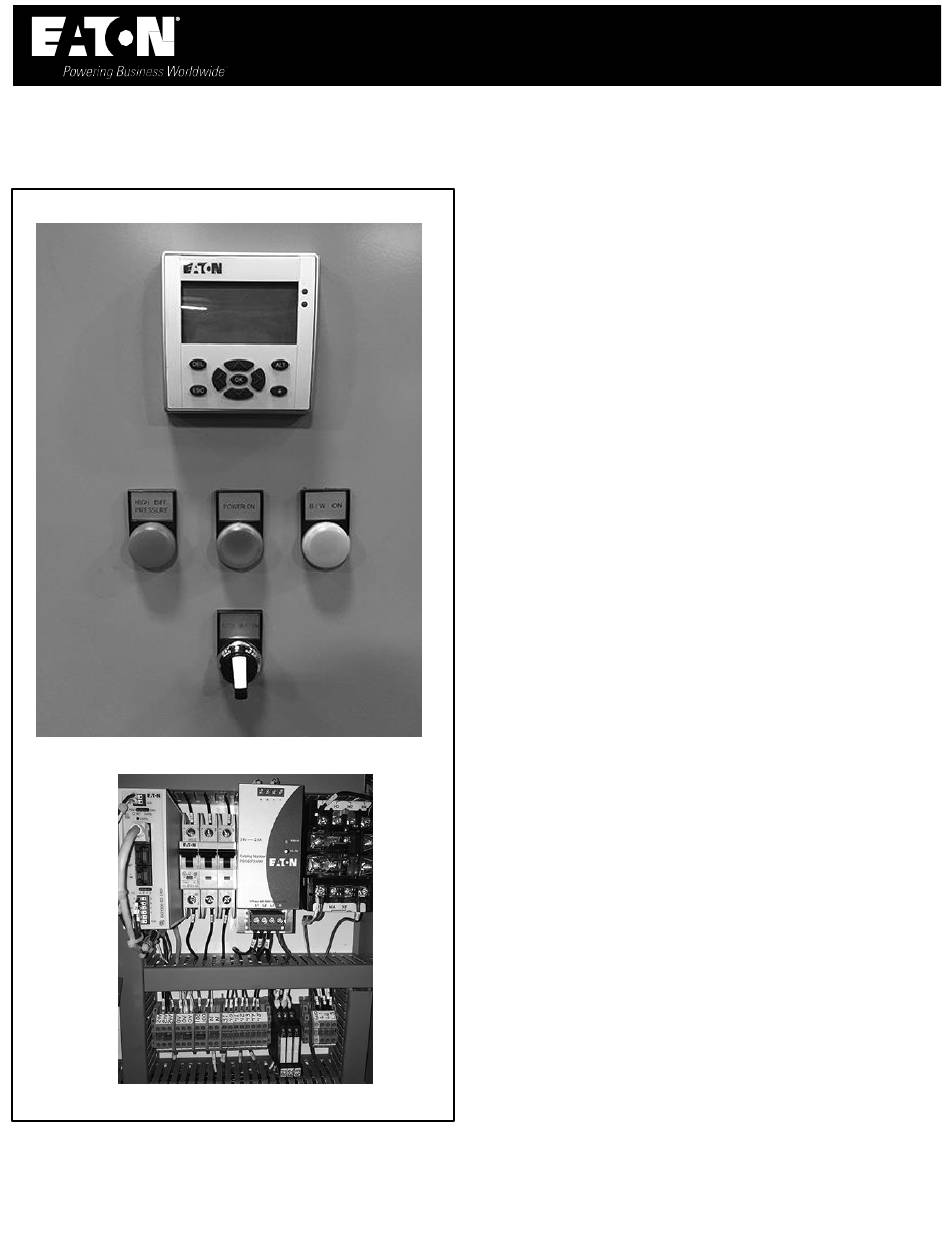

    Installation, Operation & Maintenance Manual Control Panels for Automatic Self-Cleaning Strainers Model 596 and Model 2596 CONTROL PANEL DESCRIPTION The ACS Series Control Panel is a rugged electro-mechanical unit made with industrial grade components and suitable of outdoor (NEMA 4) installation. The enclosure houses all...
