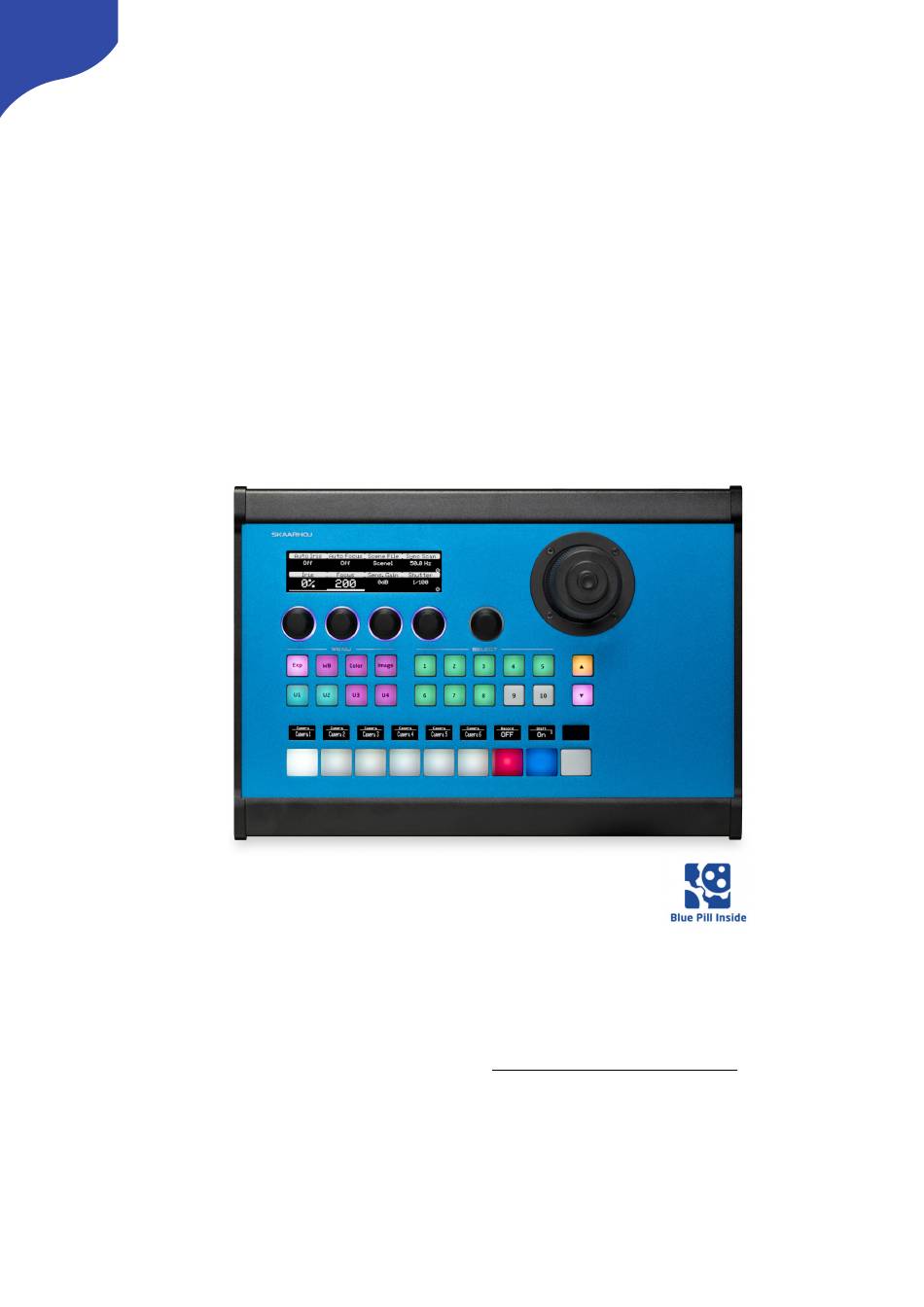

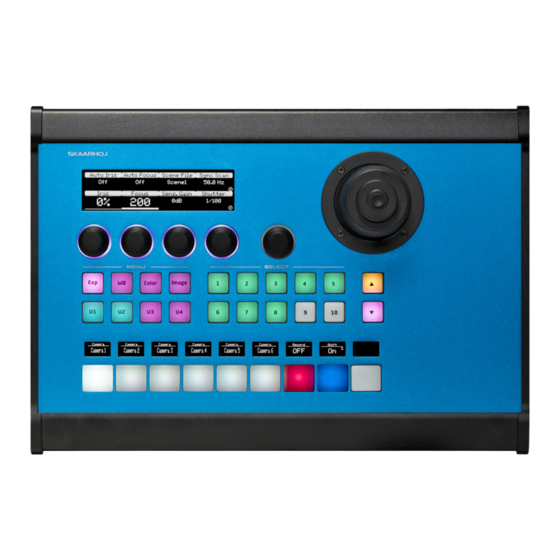

- Page 1 SKAARHOJ PTZ Pro v2B Canon PTZ USER GUIDE | June 2022 Get the latest version of this User Guide at: https://www.skaarhoj.com/support...
-
Page 2: Table Of Contents
Network Interface Details Power over Ethernet (PoE) Specifications Accessing Blue Pill DHCP or Static IP Wi-Fi Access Point Link from SKAARHOJ Firmware Updater SKAARHOJ Firmware Updater and Micro USB Select Mapping Adding Devices Auto Discover Manually Added Device Details Populate Constant Sets... -
Page 3: Important Information
Important Information Legal Notice • Do not use organic solvents, such as benzene or ethanol when cleaning the surface of the Attention: controller The content and instructions of this document are subject to change without prior notice. Updates will be added to the manual. Regulatory Compliance Best effort have been conducted to verify the For private households: Information on... -
Page 4: What's In The Box
What’s In the Box • Image Stabilisation • Presets 1 x SKAARHOJ PTZ Pro v2B Controller • Preset Speed 1 x Power Adaptor including power plug • Preset Time 1 x 2m CAT.5E Ethernet cable • Preset Store Mode • NR Mode Overview •... -
Page 5: Controller Diagram
Controller Diagram 1. Large display with 8 tiles. Functions associated with encoders from group 2 and buttons in groups 4 and 5 2. 5 rotary encoders with RGB backlight for function identification 3. 3 point joystick for pan/tilt/zoom and top button home function 4. -
Page 6: Backside
For IP Control and 5W-30W PoE (+) /PoE Standard: IEEE 802.3af/t 3. Status LED For monitoring and debugging 4. Reset Use only under the guidance of SKAARHOJ support 5. Config Button To enable WiFi Access Point 6. 12V DC Power Supply Connect the supplied DC Power adaptor 7. -
Page 7: System Configuration
System Configuration Connection The SKAARHOJ PTZ Pro v2B communicates to The layout of the configuration for the PTZ Pro v2B camera(s) via a networked IP connection. This is is expandable to handle multiple connected the supported case. No video signal processing is cameras with a camera select row of buttons. -
Page 8: Network Interface Details
-5W-30W PoE (+) -PoE Standard: IEEE 802.3af/t Remember a SKAARHOJ controller and client must be on the same subnet (192.168.10.* or one defined for the local network used by the controller). With multiple SKAARHOJ units connected to the same network they need to have different IP addresses! Power over Ethernet (PoE) Specifications... -
Page 9: Wi-Fi Access Point
Link from SKAARHOJ Firmware Updater If the SKAARHOJ Firmware Updater open on a computer running on the same subnet as the Blue Pill, the Blue Pill should appear below the main controller access buttons of the updater. Clicking on Configure next to the panel’s information will open the web interface directly. -
Page 10: Skaarhoj Firmware Updater And Micro Usb
SKAARHOJ Firmware Updater and Micro USB If a network connection to the Blue Pill in not available, the IP address can be set using a Micro USB cable. In this case the Blue Pill will appear in the “Select Device” dropdown and the “IP Config” tab in the Firmware Updater can be used to set the IP address (same procedure from UniSketch): In this case it was identified as “/dev/tty.usbmodem4430361”... -
Page 11: Adding Devices
Adding Devices There are two main ways a device can be added to a new Blue Pill, Auto Discover and Manually. Auto Discover Searching on the network for devices will find many types by a combination of mDNS look-ups and other methods. -
Page 12: Device Details
Device Details Panels have their status displayed clearly in the overviews on the Home screen. Clicking on a device name in the Devices section will open up the details. Here the name, ID number, Active status, and IP address of the device can be changed. By default the device name will be the same as the model name, the ID will be auto generated in order, and the status will be active. -
Page 13: Populate Constant Sets
filled out for standard operation. FrameLink Window Sets the FrameLink Window value associated with the FrameLink device core for use with FrameLink compatible devices. See https://wiki.skaarhoj.com/ for more information. This column does not need to be filled out for standard operation. -
Page 14: Controller Use
Controller Use Overall the controller have eight menus. To change between the menus press M1-M8. The camera select row is dynamic to the number of cameras connected. Joystick Tilt Rotate Zoom Top Button Home M1-M8 B1-B12 D1-D8 Exposure Selected Menu Preset Select Camera Select B1-10... -
Page 15: Dimensions
-Check that Reactor is running in the Packages section. If it is not, restart it. from web interface Can’t find IP address -Connect the the controller to the computer via USB and use the Skaarhoj Firmware Updater to identify the IP address or set a static IP address. https://www.skaarhoj.com/support/firmware-updater... -
Page 16: Contact Support
Contact Support You are always welcome to contact us for support questions - write an email to support@skaarhoj.com and we will do our best to accommodate your request. In order for us to provide the best support please state: • Which SKAARHOJ unit it is about •...
