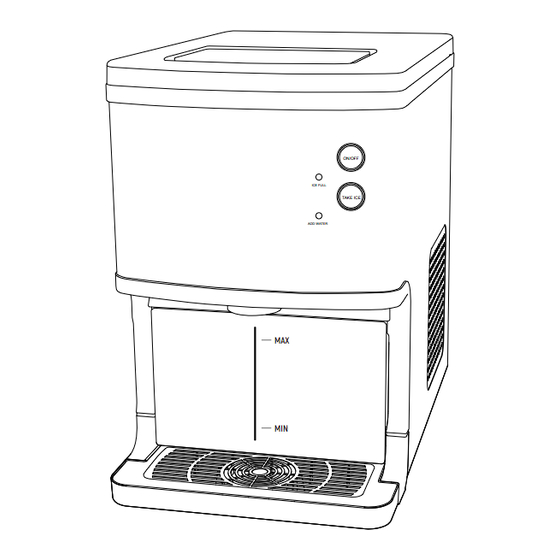

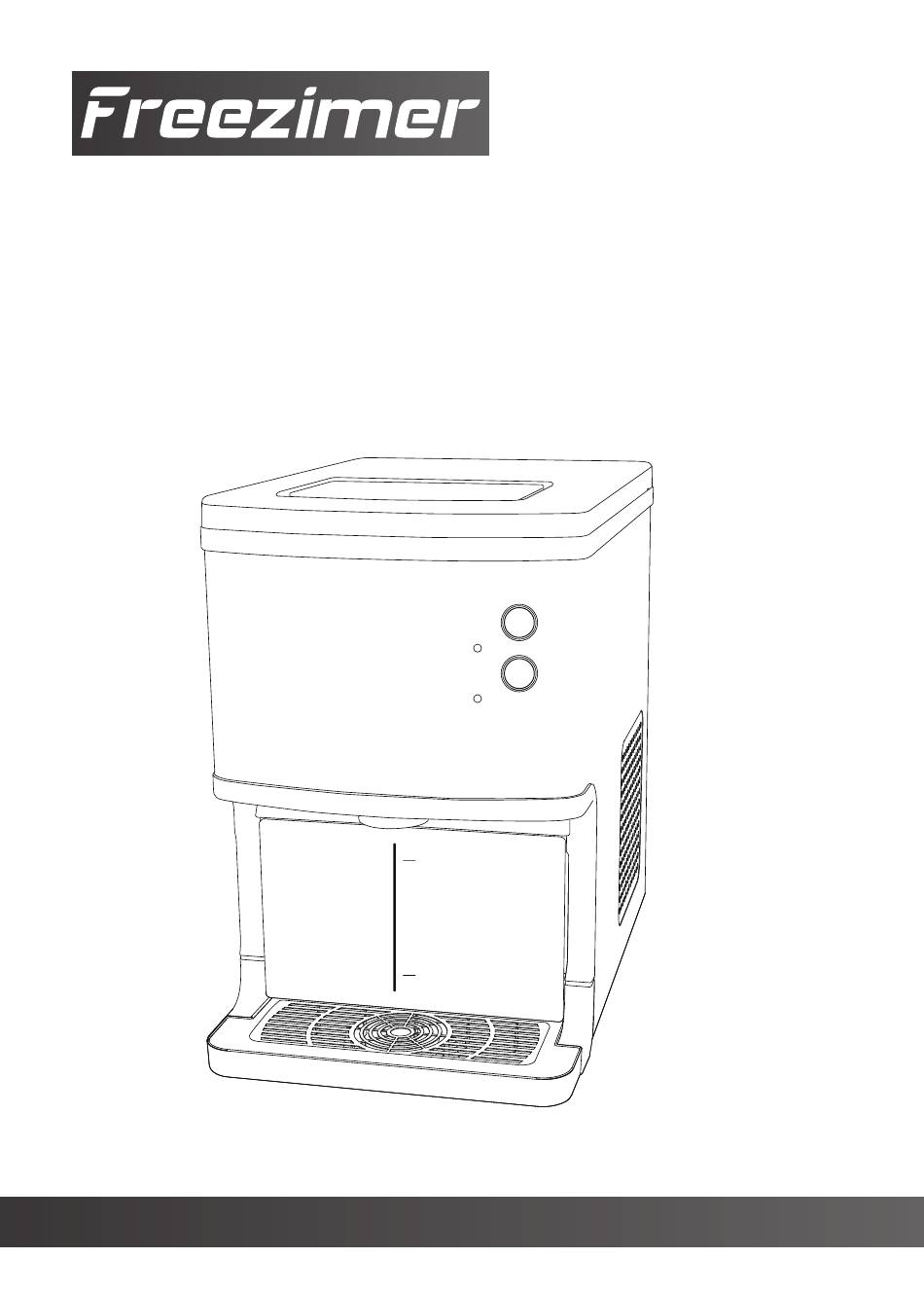

  • Page 1 Ice Maker Instruction Manual To ensure proper use and for your safety, please read the following instructions completely before operating the appliance. ON/OFF ICE FULL TAKE ICE ADD WATER DIM-30A www.freezimer.com...
  • Page 3 Traslade el hielo sobrante a un congelador para almacenarlo a largo plazo (más de 6 horas) si desea conservarlo. El hielo que quede en la cubeta se derretirá con el tiempo. www.freezimer.com...
  • Page 4 Thank you for purchasing this Freezimer product. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and Freezimer.

  • Page 5: Table Of Contents

    CONNECTING YOUR ICE MAKER ................8 CONTROL PANEL AND INDICATOR LIGHTS HOW TO CLEAN ......................9 CARE AND MAINTENANCE ..................10 USING YOUR ICE MAKER ..................11 30A ICE MAKER APP OPERATION ................12-17 TROUBLESHOOTING ....................18-19 Limited Warranty ….…………………………………………………………………....…….. 20-25 www.freezimer.com...

  • Page 6: Before Putting Into Use

    ● Clean your unit thoroughly before putting into use.（See“How to Clean”） ● Use the parts diagram on page 6 to insure proper positioning of internal components. SPECIFICATIONS Type DIM-30A Voltage 100V-120V Frequency 60Hz Current 2.6A...
  • Page 7 6. Unplug the ice maker before cleaning or making repairs. 7. Exercise caution and use reasonable supervision when appliance is used near children. 8. Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion. 9. Do not tip over. www.freezimer.com...
  • Page 8 This is not a defect. After several times, the smell will disappear. We suggest you use an ice maker cleaning agent or citric acid to clean it before you use. Please do not use the ice cubes with an odor to avoid physical discomfort or other diseases. www.freezimer.com...

  • Page 9: Name Of The Parts

    Pull-tab top caps can be easily inserted and removed for quick filter changes. 4. 1PACK Water Dispenser: Water filter can effectively filter the water of fluoride, chlorine, lead, dirt, harmful metals and other substances in the www.freezimer.com...

  • Page 10: Unpacking Your Ice Maker

    (i.e.:stove,furnace,radiator). Place the ice maker on a level surface. Maker sure that there is at least 5 inches of space between the back and sides of your ice maker and the wall. 4. The appliance must be positioned so that the plug is accessible. www.freezimer.com...

  • Page 11: Connecting Your Ice Maker

    * Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged please email our customer service at service@freezimer.com 1. This unit should be properly grounded for your safety. The power cord of...

  • Page 12: Control Panel And Indicator Lights

    If you want to stop the cleaning mode in the middle, please press and hold the ON/OFF button again for 3 seconds, and the machine will return to the standby mode. www.freezimer.com...

  • Page 13: How To Clean

    ● 6. If the machine has not been used for a long time, please clean it before use. If it is used frequently, please clean it automatically every half month. www.freezimer.com...

  • Page 14: Care And Maintenance

    Tip: When the machine is not in use, open the drain to allow the water to drain completely from the tank. Always use fresh water before starting any ice production, either at initial installation or after a long shut-off period. www.freezimer.com...

  • Page 15: Using Your Ice Maker

    6. The minimum water level is 1.3 inches and the maximum water level is 4.5 inches. When the water level is low, the "ADD WATER" indicator will light up. Please add water, be sure to turn off the machine before adding water. www.freezimer.com...

  • Page 16: 30A Ice Maker App Operation

    3. Device Network Connection Step 1: Connect the ice maker to the power supply; Enter the App Store and Google Play Store with your mobile phone to search for “SMART LIFE” or scan the QR code below to download the APP program; www.freezimer.com...
  • Page 17 Step 2: Please ensure that the mobile phone turns on Bluetooth mode and connected to the WIFI network; Step 3: Press the button and the button of the ice maker at the ON/OFF TAKE ICE same time, the two buttons flash alternately, and enter the automatic network connection;...
  • Page 18 Select the WIFI network, enter the password, the ice maker will enter the network configuration state (as shown in Figure 5). After the network distribution is successful, click the icon in the upper right corner (as shown in Figure 6) to enter the APP operation interface (as shown in Figure 7), www.freezimer.com...
  • Page 19 In the APP interface： Area A is the operation area, which can operate ice making, cleaning, and timing functions. Area B is the function prompt area, which cannot be operated by keys; (Figure 5) (Figure 6) (Figure 7) www.freezimer.com...
  • Page 20 After the machine is turned on, press the button to start the ice-making, and press it again to cancel the ice-making; The button turns blue in an ice-making state, and the button turns white when stops making ice. www.freezimer.com...
  • Page 21 After the button stops flashing, the ice maker can be operated normally. Function setting button: Click to enter the function option setting content including sharing device, software upgrade, checking network, etc. www.freezimer.com...

  • Page 22: Troubleshooting

    89 F. The location of the ice Move the ice maker near Ice is full but maker’s light is too a darker location. the light is off. strong and it effects the infrared detection. www.freezimer.com...
  • Page 23 Note: The noises are normal when operating this ice maker: a click sound when the machine was turned on or off; a boiling, gurgling, or knocking sound when refrigerant is circulating through the pipes; loud click sound when ice falls into the bucket. www.freezimer.com...
  • Page 24 CIRCUIT DIAGRAM www.freezimer.com...
  • Page 25 www.freezimer.com...
  • Page 26 46. Water tank 21. Backboard 47. Water tank cap 22. Drain connection 48. Water sensor 23. Drain pipe 49. Water pipe 24. Drain plug 50. Infrared ray 25. Overlay for drip tray 51. Small rubber plug 26. Filtered water tank www.freezimer.com...
  • Page 27 This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. www.freezimer.com...
  • Page 28 To make a warranty claim, do not return this appliance to the store. Please visit: www.freezimer.com in the U.S. For faster service, locate the model, type, and series number is on your appliance. ENVIRONMENT FRIENDLY DISPOSAL Do not dispose of this product in the usual househould garbage at the end of its life cycle;...
  • Page 29 Qishi Town Dongguan, Guangdong Province, China Freezimer is a registered trademark of Freezimer International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
