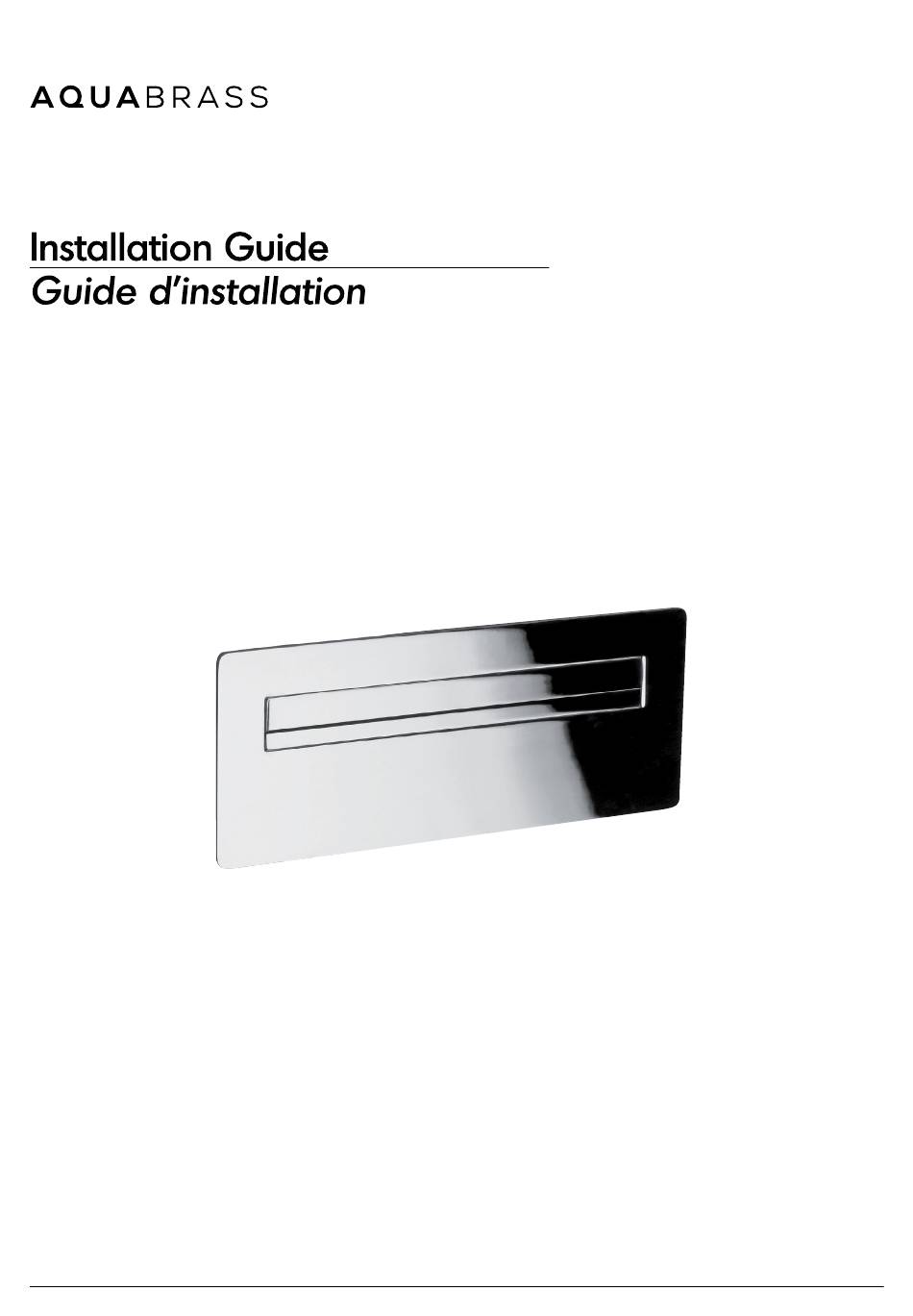

- Page 1 77347 recessed wallmount cascading chute chute d’eau murale encastrée aquabrass.com last revision: 30/06/2016...
- Page 2 77347 recessed wallmount cascading chute chute d’eau murale encastrée Service Parts / Schéma des pièces Item Code English Français Item Code English Français Trim plate Plaque décorative Spacer Bloc de fixation ABSC77357 ABSC77366 ABWA77381 Seal gasket Join adhésif ABVI77350 Wood screws (x4) Vis à...
- Page 3 77347 recessed wallmount cascading chute chute d’eau murale encastrée General Dimensions / Dimensions générales Finished wall Mur de finition [250.00] 10” [200.00] 7 7/8” [24.00] 1” [90] [100.00] 4” 3 1/2” [240.00] 9 7/16” [26.00] 1/2” G 1” Fig.1 CAUTION: FOR BEST RESULTS, WE STRONGLY RECOMMEND THE INSTALLATION OF THIS PRODUCT BE DONE BY A LICENSED PROFESSIONAL PLUMBER.
- Page 4 77347 recessed wallmount cascading chute chute d’eau murale encastrée Install the Mounting Plate Install the Chute Unit Prepare the Connection Installation de la plaque Installation de la chute de montage d’eau Préparation de la connection 1” max Mounting plate...
- Page 5 77347 recessed wallmount cascading chute chute d’eau murale encastrée Installing the Trim Plate Wall Openning Installation de la plaque Ouverture du mur décorative 8” 63.50 2-1/2” Finished wall Mur de finition Fig.4 Fig.5 For an easy maintenace of the chute fol-...
-
Page 6: Entretien
Care Entretien To clean your Aquabrass faucet or accessory, wash with a wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on a regular basis. DO NOT USE ANY ABRASIVE, CHEMICAL OR CORROSIVE, POWDER OR ANY OTHER STRONG CLEANERS INCLUDING DETERGENTS, WINDOW CLEANERS AND DISINFECTANTS ON YOUR Aquabrass PRODUCT as they will destroy the finish and therefore VOID THE WARRANTY. -
Page 7: Garantie Limitée À Vie
- Aquabrass polished chrome and brushed nickel finishes are warranted for the life of the product to the original purchaser. All other finishes will be war- ranted for five years (Satin Nickel Natural [#210] is designed to develop a patina over time). Raw Brass (#400) is a living finish for which there is no warranty Normal wear and tear is not covered by this warranty.
