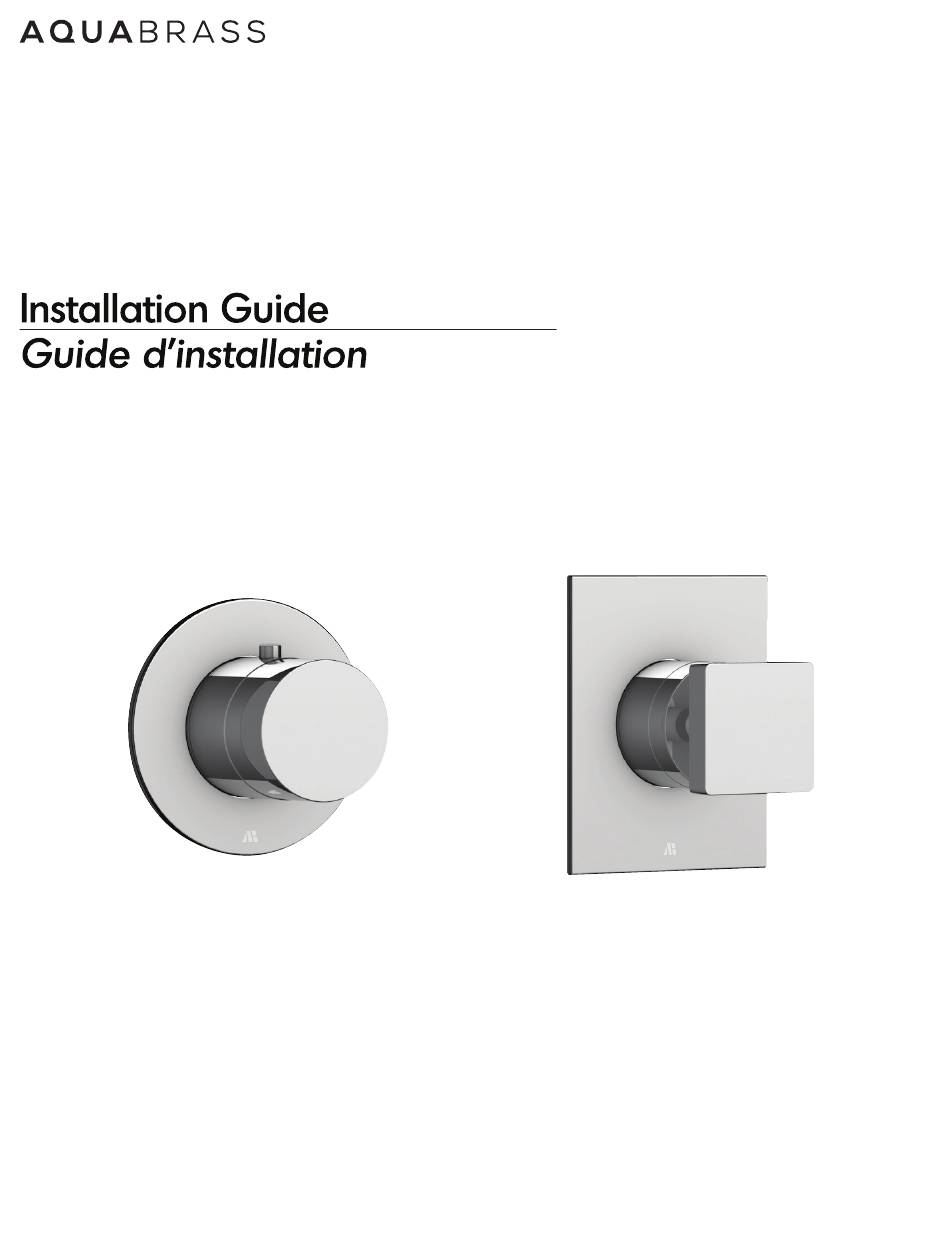

- Page 1 R0695 / S0695 1/2” & 3/4” volume handle trim Contrôle de volume 1/2“ & 3/4” Last revision: 29/06/2018 aquabrass.com...
- Page 2 R0695 / S0695 1/2” & 3/4” volume handle trim Contrôle de volume 1/2“ & 3/4” Service Parts / Schéma des pièces Item Code English Français ABVI00541 screw for shut-off valve handle vis pour l’adaptateur de la poignée de la valve adapter d’arrêt...
- Page 3 R0695 / S0695 1/2” & 3/4” volume handle trim Contrôle de volume 1/2“ & 3/4” General Dimensions / Dimensions générales [38.30] ø [82.55] 1 1/2” 82.55 3 1/4” 3 1/4" ø [45.00] 105.03 1 3/4” 4 1/8" R0695 S0695 ø [86.70] 3 3/8”...
-
Page 4: Installation De La Poignée
R0695 / S0695 1/2” & 3/4” volume handle trim Contrôle de volume 1/2“ & 3/4” Installation Installing the Trim Installation de la plaque décorative Before installing the trim (2), thread on the cylinder (1) to shut-off valve as shown (fig.1). -
Page 5: Maintenance / Entretien
R0695 / S0695 1/2” & 3/4” volume handle trim Contrôle de volume 1/2“ & 3/4” Maintenance / Entretien Servicing the shut-off valve Remplacement de la valve d’arrêt Shut off your main water supply. Release the remaining water pressure by opening the shut-off valve. -
Page 6: Entretien
Care Entretien To clean your Aquabrass faucet or accessory, wash with a wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on a regular basis. DO NOT USE ANY ABRASIVE, CHEMICAL OR CORROSIVE, POWDER OR ANY OTHER STRONG CLEANERS INCLUDING DETERGENTS, WINDOW CLEANERS AND DISINFECTANTS ON YOUR Aquabrass PRODUCT as they will destroy the finish and therefore VOID THE WARRANTY. -
Page 7: Garantie Limitée À Vie
- Aquabrass polished chrome and brushed nickel finishes are warranted for the life of the product to the original purchaser. All other finishes will be warranted for five years (Satin Nickel Natural [#210] is designed to develop a patina over time). Raw Brass (#400) is a living finish for which there is no warranty Normal wear and tear is not covered by this warranty.
