Artemide TOLOMEO, TOLOMEO MINI / VIDEO / BRACCIO LUNGO Manual

Introduction

Note:
Prior to any work on the fixture always switch off the mains.
Only use bulbsof the type and wattage indicated on the rating plate.

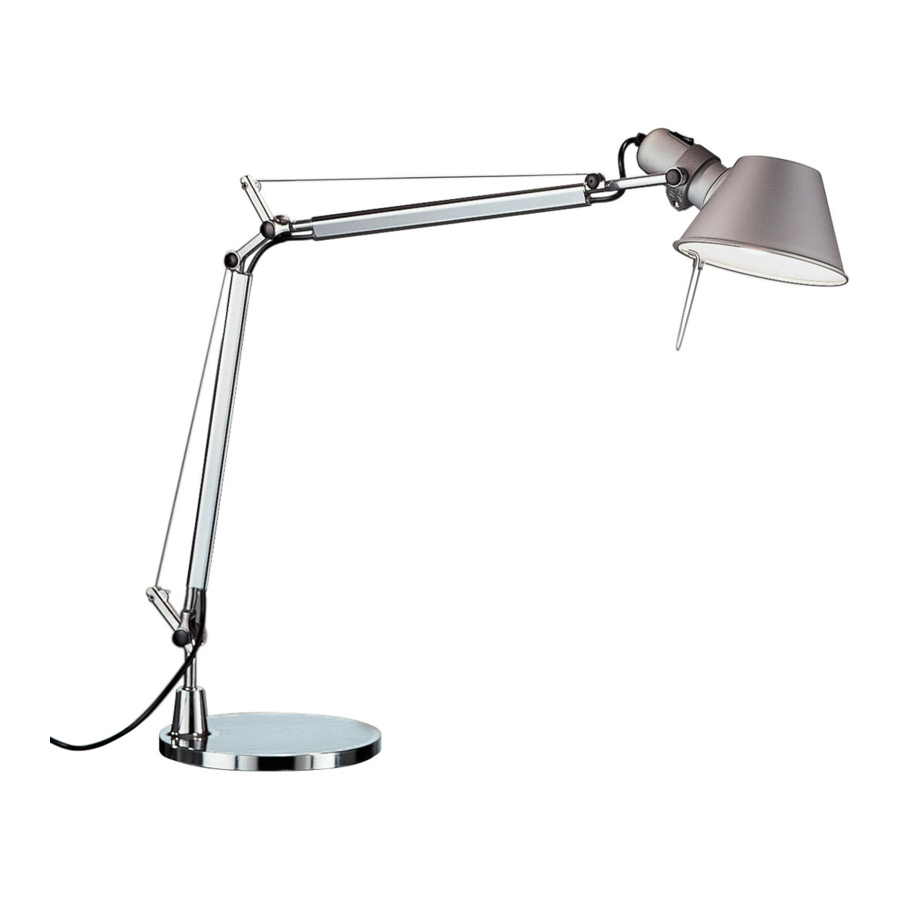

Table base

(Fig. 1)

Insert the lamp body A in the base B seat by rotating and pushing downwards. After inserting the lamp, place the bushing C and the flat washer D and tighten the screw E.

Wall

(Fig. 2)

Install the support F on the wall. Insert the lamp body A in the seat by rotating and pushing downwards.

Terminal

(Fig. 3)

Anchor the terminal G by means of the screw H. Insert the lamp body A in the seat by rotating and pushing downwards.

Fixed table

(Fig. 4)

Drill a 19 mm hole on the selected surface. Insert the support L and tighten the lock ring M. Insert the lamp body A in the seat by rotating and pushing downwards.

Floor

(Fig. 5)

Insert the bar N in the base O and block it by means of the washer and screw P. Place the three wire holders Q on the bar N. Insert the lamp body A in the seat by rotating and pushing downwards. Route the power supply cable through the wire holders Q.

Table

(Fig. 6)

The table shown in Fig. 6 lists the possible combinationsof theTOLOMEO modelswith the accessories supplied by ARTEMIDE.
Carefully follow the instructions for use contained in the table.

FOR U.S.A. ONLY:
Max 1 x 100W E26
13W GX23—2
50W 12V TYPE GY6,35
TOLOMEO VIDEO:
11W G23

Bulb:
Max 1 x 100W IAA E27
13W FSQ G24d—1

Max 1x50W 12V HSGGY6,35
Use low pressure lamps only.
class III

TOLOMEO VIDEO:
11W FSD G23
