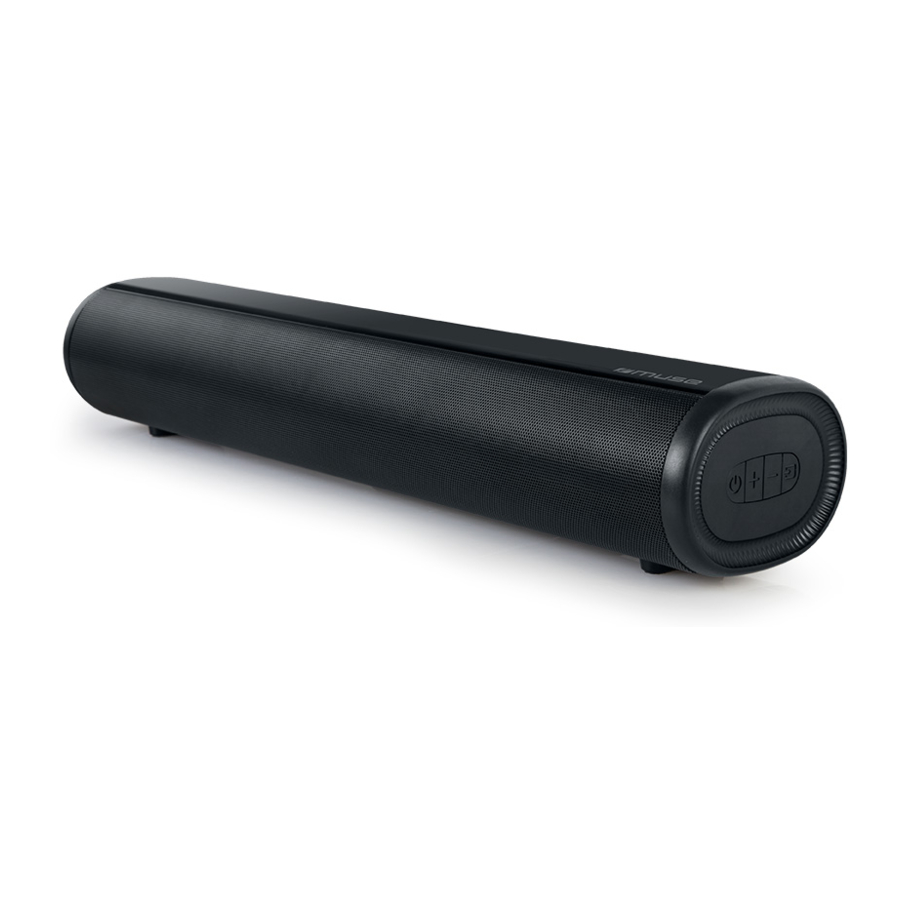

Muse M-1580 SBT - Soundbar Manual

LOCATION OF CONTROLS

Read the instructions carefully before operating the unit.

1. - To turn unit on/off.
2. - Long press to increase the volume;
   Short press to skip to next track
3. - Long press to decrease the volume;
   Short press to skip to previous track.
4. - To select desired function mode: Bluetooth, Optical, Coaxial, ARC, AUX or USB.
5. Speakers
6. Remote sensor
7. Function LED indicator
8. Wall Mounting brackets
9. HDMI ARC input jack (HD-ARC)
10. Coaxial jack (COAX)
11. Optical in jack
12. AUX IN jack
13. USB port allowing MP3 playback
14. DC IN jack

Remote control

R1. - To turn unit on/off.
R2. MUTE - To mute or restore sound.
R3. VOL +/- - To adjust the volume level.
R4. - To skip to previous track
R5. - To skip to next track
R6. - Play/ pause
R7. TREB+/- - To adjust the treble level.
R8. MUSIC/ MOVIE/ DIALOG - To select desired sound effects: music, movie, dialog.
R9. BASS+/- - To adjust the bass level.
R10. BT - To select Bluetooth mode.
R11. OPT - To select optical mode.
R12. USB - To select USB mode.
R13. AUX - To select aux in mode.
R14. COAX - To select coaxial mode.
R15. ARC - To select ARC mode.

The remote control operates on 1pc "CR2025" lithium battery (included). To power up the remote control, remove the insulation tab from the back of unit.

REPLACING BATTERY FOR THE REMOTE CONTROL

1. Push the button toward right.
2. Pull the battery loader out.
3. Insert one "CR2025" size battery with the positive side (+) facing up.
4. Replace the cover.


Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES:

• Never recharge the batteries, apply heat to them or take them apart.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) This product contains a coin/ button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

ACCESSORIES

Remote control x1
AC adaptor x1
Aux in cable x1

WALL MOUNTING INSTRUCTION

1. Drill 2 holes (diameter 6mm) with a spacing of 320mm on the wall.
2. Insert the wall plug (not supplied) into the hole until it is flush with the wall surface.
3. Insert the screw (not supplied) into the wall plug and tighten the screw approx. 4mm away from the wall.
4. Hang the unit to the screws as indicated below. Make sure it's firm and stable.


Notes:

• Before you drill, make sure that there no hidden pipes or wires, or hazards behind the wall in your chosen mounting location. If you are not sure about this, perhaps you should consider having the unit mounted by someone with the necessary experience.
• Check the wall strength before mounting the unit to the wall. If this is not clear, then consult relevant qualified personnel.

POWER SUPPLY

The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 20 minutes, the unit will automatically switch to Standby mode.

TURNING UNIT ON/OFF

Press button to turn on the unit. Press again on remote control or long press on unit to turn off the unit.

SELECTING FUNCTION

The function mode is selected by pressing button on unit repeatedly, or pressing BT, OPT, COAX, ARC, AUX or USB button on remote control respectively.

Observe the color of function LED indicator for different mode:
Red: Standby
Blue: Bluetooth
White: Optical
Green: Coaxial
Cyan: ARC
Yellow: AUX
Purple: USB

Notes:

• Once insert the USB device to the USB port of unit, it will switch to USB mode automatically.
• USB mode can be selected by button on unit or USB button on remote control only when the USB device is connected to the unit.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, press button on unit repeatedly until the function LED indicator becomes blue, or press BT button on remote control to select Bluetooth mode directly. The function LED indicator will blink fast indicating it's in pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "MUSE M-1580 SBT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. You will hear an indication sound when pairing is successful. The function LED indicator will blink slowly.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, press and hold BT button to disconnect the current device, and then follow the steps above to make a new connection.

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1580 SBT's speakers.
2. Press button on remote control to pause playback. Press again to resume playback.
3. Short press on unit or on remote control to select desired track.
4. A djust the volume using the Volume buttons. You can also adjust the volume on the device to which you are paired.

Note: The function LED indicator will stay lit during playback.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1580 SBT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

CONNECTING WITH EXTERNAL DEVICES

To OPTICAL IN jack

Connect your audio source to the OPTICAL jack on unit with a digital optical audio cable (cable not included)

1. Press button on unit repeatedly or press OPT button on remote control to select optical mode. The function LED indicator will become white.
2. Start playback from your audio source.
3. Adjust the volume to desired level.
4. To stop playback, disconnect your audio source from this unit.

Note: OPTICAL IN is for PCM format only.

To coaxial jack

Use the coaxial cable (not included) to connect the soundbar to the coaxial input jack on your TV or amplifier. Press button on unit repeatedly until the function LED indicator becomes green, or press COAX button on remote control to select coaxial mode directly.

To HDMI ARC in jack

The high definition sound can be transferred from the TV to the sound bar. Use the HDMI cable (not included ) to connect the sound bar to the external TV which has HDMI output jack. Press button on unit repeatedly until the function LED indicator becomes cyan, or press ARC button on remote control to select ARC mode directly.

Note: HDMI ARC function needs HDMI ARC jack on your TV. If your TV does not have HDMI ARC jack, you can connect your sound bar with optical jack or Aux in jack.

To AUX IN jack

1. Connect your auxiliary source (e. g. mp3 player) to the AUX jack on the unit (cable not included).
2. Press button on unit repeatedly until the function LED indicator becomes yellow, or press AUX button on remote control to select AUX mode directly.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX jack.

Note: Remove the auxiliary cable from AUX jack when finish listening. Don't forget to switch off the power on your external device as well.

USB PLAYBACK

1. C onnect an USB device to the USB port on unit. It will switch to USB mode and start playback automatically. The function LED indicator will become purple.
2. Short press on unit or on remote control to select desired track.

Notes:

• USB mode can be selected bybutton on unit or USB button on remote control only when the USB device is connected to the unit.
• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

TECHNICAL SPECIFICATION

POWER SUPPLY:
AC ADAPTOR:
Input: AC 100-240V ~50/60Hz
Output: DC 19.0V 1.26A 24.0W

BLUETOOTH
Bluetooth Version: V5.0
Bluetooth: 2.402-2.480GHz
RF Output Power: 5.2 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)
Remote working distance: Up to 8 meters, +/- 30 degree

• Specifications are subject to change without notice.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
