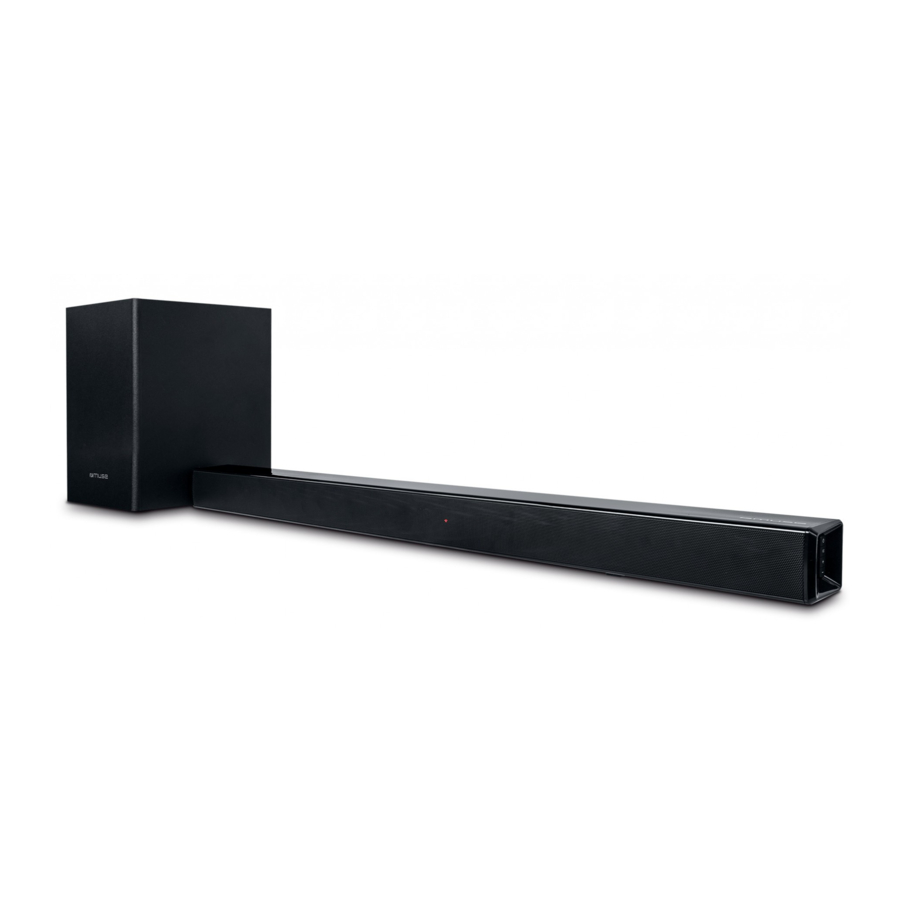

Muse M-1750 SBT - Soundbar With Wireless Subwoofer Manual

Locations and controls

Unit

1. Indicator
2. Remote sensor
3. STANDBY button
4. SOURCE button
5. Vol + button
6. Vol - button
7. Wall Mounting brackets
8. OPTICAL IN jack
9. Upgrade service socket
10. LINE IN jack
11. AC socket
12. PAIR indicator
13. PAIR button

Remote cotrol

1. STANDBY button
2. LINE IN button
3. Vol + buttons
4. button
5. PLAY/PAUSE button
6. Vol - buttons
7. EQ button
8. MUTE button
9. BT button
10. button
11. OPT button (Optical)

Installing Battery

Insert one "AAA/ UM4" battery to the remote control prior to use. Make sure to match their polarities (+/-) to the markings inside the compartment.

Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES

• Never recharge the batteries, apply heat to them or take them apart.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WALL MOUNTING INSTRUCTION

1. Drill 2 holes on wall with a powerful electric drill.
2. Insert the fixing plug into the holes.
3. Secure the screws into the fixing plugs and leave approx. 4mm length to hook the sound bar.
4. Put the soundbar onto the mounting screws. Make sure they are firm and stable.

POWER SUPPLY

This set operates on AC 100-240V 50/60Hz. Connect the power cord to a convenient AC wall outlet.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 15 minutes, the unit will automatically switch to Standby mode.

TURNING UNIT ON/OFF

Press button to turn on the unit. Press this button again to turn off the unit.

SELECTING FUNCTION

The function (BLUETOOTH/ LINE IN/ OPTICAL) is selected by pressing SOURCE button repeatedly. The corresponding color of indicator light will be displayed.

AUDIO CONTROLS

VOLUME

Press Vol + / - to adjust the sound to comfortable level.

MUTE

To cut off the sound from the speakers temporarily, press MUTE button on remote control. Press MUTE button again to cancel mute mode and restore the sound from the speakers.

EQ

Press EQ button on remote control to toggle among the different sound effects.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The indicator will blink blue rapidly indicating it is in Pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "M-1750SBT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use"0000". Some Bluetooth devices will ask you to accept the connection. You will hear an indication sound when pairing is successful.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.
If the pairing fails, perform the following:
Press and hold button until the indicator blink blue rapidly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-1750SBT" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1750SBT's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with . .
4. Adjust the volume using the Volume buttons. You can also adjust the volume on the device to which you are paired.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1750 SBT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

SUBWOOFER CONNECTION

1. When the soundbar is ON, press and hold the SOURCE button until the indicator blink green rapidly.
2. Then power on the subwoofer, the PAIR indicator on the subwoofer will blink red and blue rapidly indicating it is in Pairing mode.
3. When pairing is successful, the PAIR indicator stops blinking and stays blue lit.

Note: When the unit is turned on again, it will repair automatically between soundbar and subwoofer.

In case the subwoofer cannot be linked with the soundbar. Please follow the following procedure for Pairing:

1. Unplug the power cord of the subwoofer and soundbar.
2. Press and hold the PAIR button on the subwoofer, at the same time, replug the AC power cord of the subwoofer to an electrical outlet. The PAIR indicator will turn red, wait for 5 seconds, then release the button, the indicator light will flash for once (red/blue) and then unplug the power cord of the subwoofer again.
3. Follow procedures 1 to 3 in SUBWOOFER CONNECTION section.

CONNECTING WITH EXTERNAL DEVICES

To LINE IN jack

1. Connect your audio source (e.g. DVD player) to the LINE IN jacks on unit with the supplied 3.5mm to RCA audio cable.
2. Connect your audio source (e.g. mp3 player) to the LINE IN jack on unit (cable not included).

To OPTICAL IN jack

Connect your audio source to the OPTICAL jack on unit with a digital optical audio cable (cable not included)

1. Press SOURCE repeatedly to select desired mode: LINE IN, OPTICAL. (Green for Line in, yellow for Optical).
2. Start playback from your audio source.
3. Adjust the volume to desired level.
4. To stop playback, disconnect your audio source from this unit.

Note: OPTICAL IN is for PCM format only.

TECHNICAL SPECIFICATION

GENERAL

Input: 100-240V 50/60 Hz
Power output: 2x20W + 40W

BLUETOOTH

Bluetooth Version: V5.0
Bluetooth: 2.402-2.480GHz

Frequency range: 20Hz~20kHz
RF Output Power: 5.39 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Remote working distance: Up to 8 meters, +/- 30 degree

Specifications are subject to change without notice.

SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside the unit. Refer all servicing to qualify personnel.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The Caution mark is located at the back of the device.

• The marking plate is located at the back of the device.
• The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The use of apparatus in moderate climates.
• The apparatus should not be exposed to dripping or splashing.
• Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• Mains plug is used as the disconnect device and it shall remain readily operable. To be completely disconnected the power input, the mains plug of the apparatus shall be disconnected from the mains completely. The mains plug should not be obstructed or should be easily accessed during intended use.
• Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• The normal function of the product may be disturbed by strong ElectroMagnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.(Waste Electrical and Electronic Equipment Directive)

Note: Design and specification are subject to change without notice.
