Muse M-1850 SBT - Soundbar With Wireless Subwoofer Manual

LOCATION OF CONTROLS

OVERVIEW

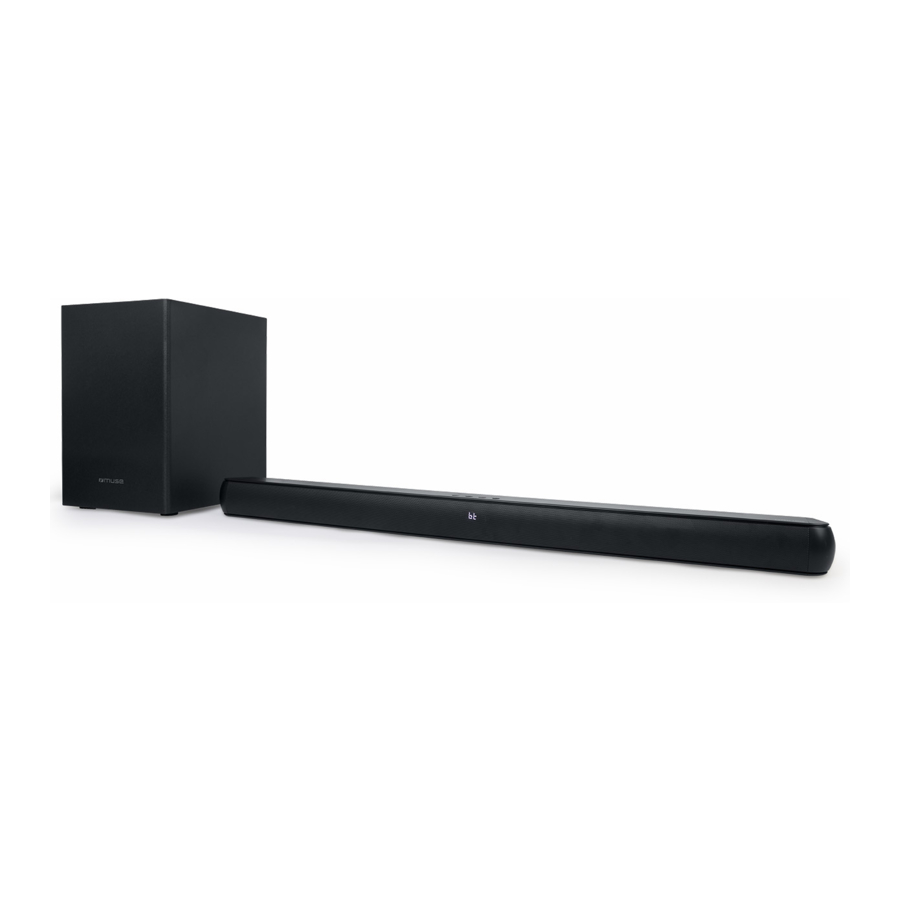

Main unit & subwoofer

  1. : To turn unit on/off
  2. : To select desired function mode: BT, AUX, ARC, OPT or USB; Long press to connect or disconnect the subwoofer
  3. Volume : To decrease volume
  4. Volume : To increase volume
  5. Speakers
  6. LED display
  7. Remote sensor
  8. Wall Mounting brackets
  9. AC socket ( AC IN)
  10. AUX IN jack (LINE/ AUX)
  11. Optical in jack (OPT)
  12. USB port allowing MP3 playback
  13. HDMI ARC input jack (ARC)
  14. PAIR: To connect or disconnect the subwoofer
  15. Pair indicator
  16. AC socket ( AC IN)

Remote control
R1. : To turn unit on/off
R2. : To mute or restore sound
R3. : To skip to previous track
R4. : To skip to next track
R5. Volume : To adjust the volume level
R6. : Play/ pause; Long press to disconnect or reconnect the current Bluetooth device
R7. : To select desired function mode: BT, AUX, ARC, OPT or USB. Long press to connect or disconnect the subwoofer
R8. (Bluetooth): To switch to Bluetooth mode directly
R9. EQ: To select desired sound effects: music, movie, TV
R10. TREBLE: Press TREBLE button first, then press button to adjust the treble level
R11. BASS: Press BASS button first, then press button to adjust the bass level

Installing Battery
Insert 2 "AAA/ UM4" batteries to the remote control prior to use. Make sure to match their polarities (+/-) to the markings inside the compartment.


Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES:

  • Never recharge the batteries, apply heat to them or take them apart.
  • If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
  • Attention should be drawn to the environmental aspects of battery disposal.
  • Do not throw batteries in fire!
  • Battery shall not be exposed to excessive heat such as sunshine, fire or the like.


Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

ACCESSORIES

Remote control x1
AC power cord x2
Aux in cable x1
Wall plug & screw x2 (for wall mounting use)

WALL MOUNTING INSTRUCTION

WALL MOUNTING INSTRUCTION

  1. Drill 2 holes (diameter 6mm) with a spacing of 600mm on the wall.
  2. Insert the wall plug (supplied) into the hole until it is flush with the wall surface.
  3. Insert the screw (supplied) into the wall plug and tighten the screw approx. 4mm away from the wall.
  4. Hang the unit to the screws as indicated below. Make sure it's firm and stable.

Notes:

  • Before you drill, make sure that there no hidden pipes or wires, or hazards behind the wall in your chosen mounting location. If you are not sure about this, perhaps you should consider having the unit mounted by someone with the necessary experience.
  • Check the wall strength before mounting the unit to the wall. If this is not clear, then consult relevant qualified personnel.

POWER SUPPLY

This set operates on AC 100-240V 50/60Hz. Connect the detachable power cord (included) to the AC socket on the main unit and subwoofer respectively. Insert the plug of power cord into a convenient standard AC wall outlet.
POWER SUPPLY
In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 15 minutes, the unit will automatically switch to Standby mode.

TURNING UNIT ON/OFF

Press button to turn on the unit. Press this button again to turn off the unit.

SELECTING FUNCTION

The function (BT/ AUX/ ARC/ OPT/ USB) is selected by pressing button repeatedly.

Notes:

  • Once insert the USB device to the USB port of unit, it will switch to USB mode automatically.
  • USB mode can be selected by button only when the USB device is connected to the unit.

CONNECTING WITH SUBWOOFER

Connect the power cords of the main unit and subwoofer to the mains socket outlet. When the unit is turned on, the subwoofer will pair with the unit automatically.

Disconnecting or reconnecting the subwoofer
To disconnect the subwoofer from the main unit, press and hold PAIR button on subwoofer for 2 seconds until the pair indicator blinks blue and red rapidly. To reconnect the subwoofer to the main unit, press PAIR button once, wait for 7 seconds, then the subwoofer will reconnect with the main unit.
Or, press and hold on the main unit or remote control to disconnect or reconnect the subwoofer.

Observe the pair indicator color for the subwoofer condition:

  • Standby mode: Pair indicator stays lit in red color
  • Pairing successful: Pair indicator stays lit in blue color
  • Pairing not successful OR disconnected from the main unit: Pair indicator blinks blue and red rapidly

Note: In case the subwoofer cannot pair with the main unit successfully, unplug the power cords of the main unit and subwoofer from the mains socket outlet. Wait for about 20 seconds and reconnect the power cords to the mains socket outlet again.

BLUETOOTH FUNCTION

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

  1. When the unit is ON, press button repeatedly to select Bluetooth mode. "" will blink slowly indicating it's in pairing mode.
  2. On the Bluetooth device, enable Bluetooth and select "MUSE M-1850 SBT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. You will hear an indication sound when pairing is successful.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, press and hold button to disconnect the current device, and then follow the steps above to make a new connection.

  • On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
  • Pairing remains intact when the unit and/ or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
  • When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

  1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1850 SBT's speakers.
  2. Press button on remote control to pause playback. Press again to resume playback.
  3. Select desired track with on remote control.
  4. Adjust the volume using the Volume buttons. You can also adjust the volume on the device to which you are paired.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1850 SBT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

USB PLAYBACK

  1. Connect an USB device to the USB port on unit. It will switch to USB mode and start playback automatically.
  2. Select desired track with on remote control.

Notes:

  • USB mode can be selected by button only when the USB device is connected to the unit.
  • The total number of MP3 files on the USB device should not exceed 999.
  • The device may not contain more than 99 directories.
  • The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
  • Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
  • The USB socket must not be connected to the computer directly, for that may damage the unit.
  • There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

CONNECTING WITH EXTERNAL DEVICES

To AUX IN jack

  1. Plug one end (3.5mm jack) of the auxiliary cable into the LINE/AUX jack on the unit and the other end of the cable to the L/R audio jacks on the external device.
  2. Press button repeatedly to select AUX mode. The display will show "".
  3. Start playback from your auxiliary source.
  4. Adjust the volume to desired level.
  5. To stop playback, disconnect your auxiliary source from the LINE/AUX jack.

Note: Remove the auxiliary cable from LINE/AUX jack when finish listening. Don't forget to switch off the power on your external device as well.

To OPTICAL IN jack
Connect your audio source to the OPT jack on unit with a digital optical audio cable (cable not included)

  1. Press button repeatedly to select OPT mode. The display will show "".
  2. Start playback from your audio source.
  3. Adjust the volume to desired level.
  4. To stop playback, disconnect your audio source from this unit.

Note: OPTICAL IN is for PCM format only.

To HDMI ARC in jack
The high definition sound can be transferred from the TV to the sound bar. Use the HDMI cable (not included ) to connect the sound bar to the external TV which has HDMI output jack. Press repeatedly to select ARC mode. The display will show " ". Then enable HDMI output signal on your TV.

Note: HDMI ARC function needs HDMI ARC jack on your TV. If your TV does not have HDMI ARC jack, you can connect your sound bar with optical jack or Aux in jack.

TECHNICAL SPECIFICATION

POWER SUPPLY:
Main unit:
AC 100-240V 50/60Hz 60W consumption
Subwoofer: AC 100-240V 50/60Hz 90W consumption

BLUETOOTH
Bluetooth Version: V5.0
Bluetooth: 2.402-2.480GHz
RF Output Power: 2.28 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)
Remote working distance: Up to 8 meters, +/- 30 degree Specifications are subject to change without notice.

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
