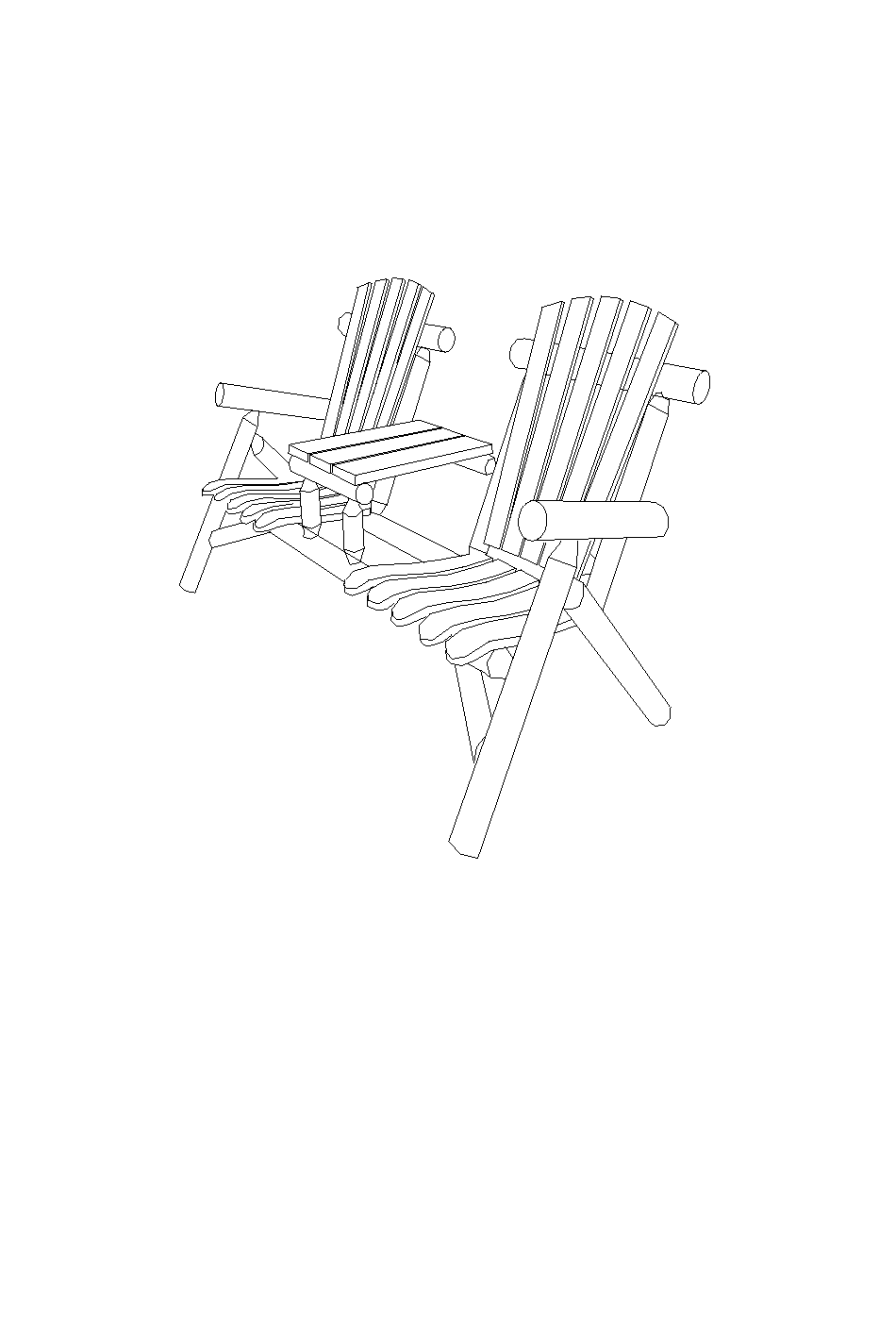

Assembly Instructions
D-DNC485PWD
WARNING:
Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically
check all bolted connections on your product to make sure they are tight and secure. Keep
these instructions for future reference.
Some parts may contain sharp edges. Wear protective gloves as necessary.
Set it up on the level ground.
Attention: There are pre-crack slots on the back side of the log, this is not inferior,
the slot is pre-drilled and intended produced, this is to allow the wood to naturally
shrink and expand.
Advertisement
Table of Contents
Related Manuals for Sunjoy D-DNC485PWD
Summary of Contents for Sunjoy D-DNC485PWD
- Page 1 Assembly Instructions D-DNC485PWD WARNING: Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically check all bolted connections on your product to make sure they are tight and secure. Keep these instructions for future reference. Some parts may contain sharp edges. Wear protective gloves as necessary.
- Page 2 Qty. Part Description Front Leg Back Leg Armrest Back 1 Back 2 Table Plate Chair Support bar Table Support bar Seat M4*40 Screw M8*100 Screw M8 Washer Step 1: Insert Back Leg (B) into Front Leg (A), insert Front Leg (A) into Armrest(C). Don’t use screw now.
- Page 3 Step 3: Fasten Back Leg (B) and Front Leg (A) with Screw AA (see Fig1). Fasten Seat (H) and Front Leg (A) and Back Leg (B) with Screw AA (see Fig2). Attach Chair Support bar (F) to Front Leg (A) and Seat (H) with Screw AA (see Fig3). Step 4: Insert Back 1 (D1) into Seat (H), then fasten them with Screw AA.
- Page 4 Step 5: Insert Table Support bar (G) into Seat (H) with Screw AA, insert Table Plate (E) into Back 1 (D1) and Table Support bar (G) with Screw AA. Step 6 Attach Back 2 (D2) to Seat (H) with Screw AA. Armrest (C) to Back (D1 &D2) with Screw BB and Washer CC.
- Page 5 Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of six (6) months.
