KSR5305
Installation Sheet
Read these instructions before commencing installation. Please give these instructions to the owner/occupier after
installation to retain for future reference/maintainence.
IP65
240VAC~50Hz
These fittings are Class I and must be Earthed
Important Information
It is recommended that these luminaires are installed and fitted by a qualified electrician
ensuring the installation complies with current IEE wiring regulations & local building
control. These products are designed for connection to a 240VAC~50Hz supply.
Any faulty, broken or damaged luminaires should be replaced immediately.
KSR will not accept responsibility for any claims arising from a poor installation.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer, end user or any third party
to exercise caution to protect any covered product or part from outside damage, humidity conditions, fluctuations in the electrical system or
physical abuse as well as failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before installing/servicing.
Please note this luminaire is Non Dimmable.
At the end of life the luminaire is classed as WEEE under directive 2014/30/EU and should be disposed of in accordance with local legislation.
General Maintenance
General maintenance and cleaning should be performed at least quarterly.
Clean product outer using a damp cloth, the glass can be cleaned with hot soapy water, dried and buffed to a shine.
To protect the paintwork we recommend the use of a good quality car wax.
After any maintenance remember to check all seals are intact.
Grease screws and nuts with a suitable waterproof repellent to ensure trouble free operation in the future.
Installation Procedure
Familiarize yourself with the luminaire and ensure the power is safely isolated before installing.
Locate a suitable location to mount the luminaire.
Using the mounting bracket as a template for location for the fixing holes.
Drill the fixing holes.
Secure the bracket into position using suitable fixings for the substrate.
Prepare wiring, using suitable cable for the application noting that the cable needs to be round cable between 6mm-8mm outer diameter.
Please remember to allow enough cable to tilt the luminaire to its final position. Never allow the mains wiring to become strained.
Remove the terminal cover from the back of the fitting by removing and retaining the 4 screws.
Terminate the wiring as per fig.1. This is a Class I Product so this luminaire must be earthed.
Reinstall the terminal cover ensuring the seal is undamaged, clean and seated correctly.
DO NOT use power drivers to tighten the terminal cover screws as this can cause damage to the terminal cover and invalidate the
warranty!
Adjust the angle of tilt to the required position and tighten bolts. Remove the luminaire label from the glass.
Turn mains supply on and test luminaire. Pass on these instruction sheets to the owner/occupier.
Adjust the settings you require on the PIR see overleaf.

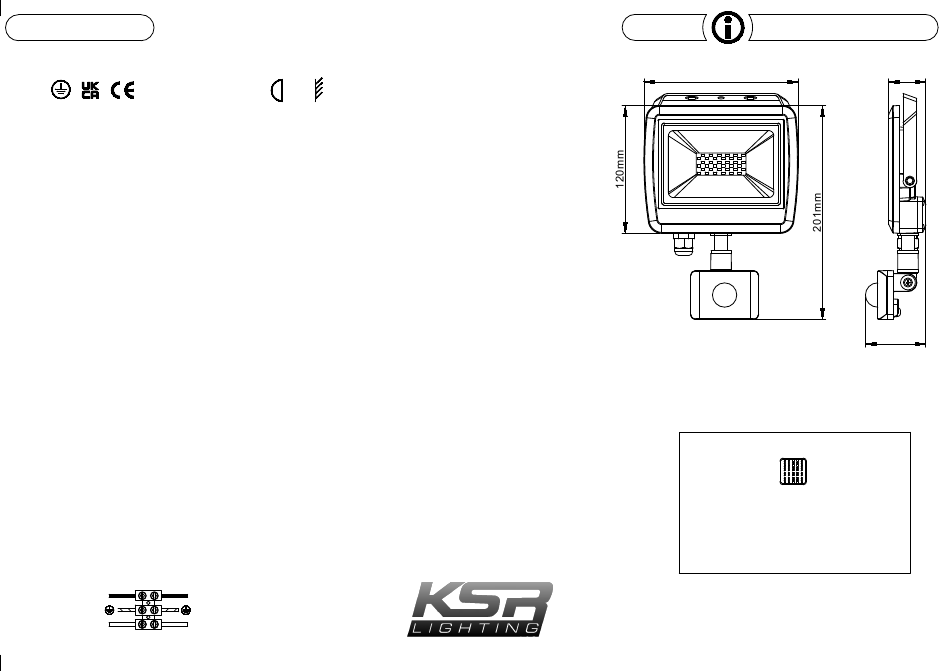

Fig.1
Luminaire
Brown (L)
Green/Yellow (E)
Blue (N)
12.12.2022-PJL
30W LED
0.5m
Mains Supply
Brown - Live
Green/Yellow - Earth
Blue - Neutral
KSR Lighting Ltd, Optimum House, Beeding Close, Southern Cross Trading Estate,
Bognor Regis, West Sussex, PO22 9TS.
Siena Cr
LED Floodlight with PIR
Available finish:- Black
145mm
Lamp Details
Lamp: 30W 4000K
Lumen Output: 2775 lumens
CRI: >Ra84
The light source of this luminaire is not
replaceable; when the light source reaches its
end of life the whole luminaire shall be
replaced.
This product contains a light source of energy efficiency class F
KSR Lighting Aftersales: 023 92 674343
E-mail: aftersales@ksrlighting.com
35mm
57mm
Drg No. KSR5305-IS-C
