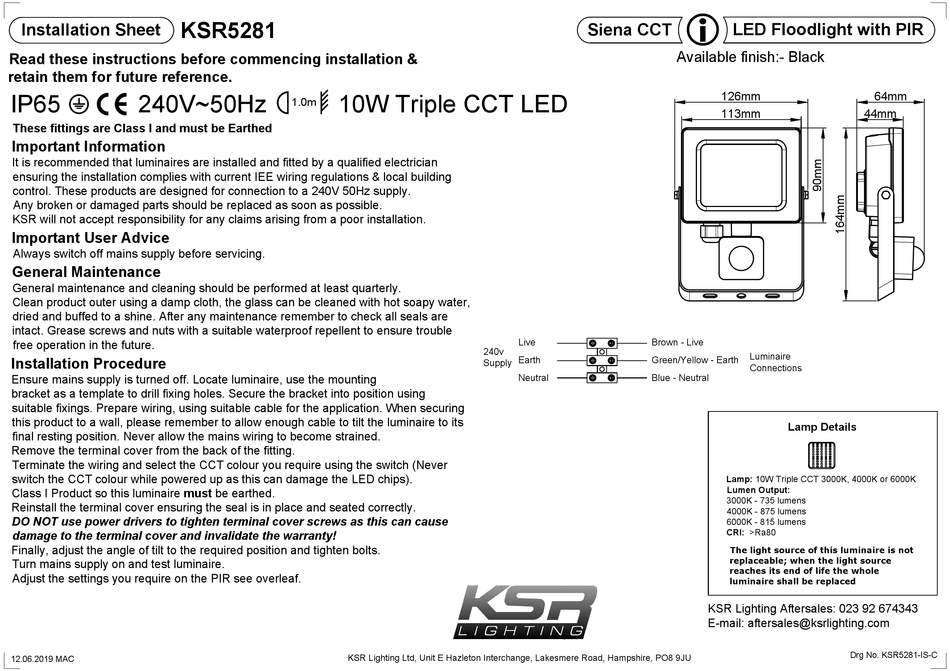

KSR5281
Installation Sheet
Read these instructions before commencing installation &
retain them for future reference.
IP65
240V~50Hz
These fittings are Class I and must be Earthed

Important Information

It is recommended that luminaires are installed and fitted by a qualified electrician
ensuring the installation complies with current IEE wiring regulations & local building
control. These products are designed for connection to a 240V 50Hz supply.
Any broken or damaged parts should be replaced as soon as possible.
KSR will not accept responsibility for any claims arising from a poor installation.

Important User Advice

Always switch off mains supply before servicing.

General Maintenance

General maintenance and cleaning should be performed at least quarterly.
Clean product outer using a damp cloth, the glass can be cleaned with hot soapy water,
dried and buffed to a shine. After any maintenance remember to check all seals are
intact. Grease screws and nuts with a suitable waterproof repellent to ensure trouble
free operation in the future.

Installation Procedure

Ensure mains supply is turned off. Locate luminaire, use the mounting
bracket as a template to drill fixing holes. Secure the bracket into position using
suitable fixings. Prepare wiring, using suitable cable for the application. When securing
this product to a wall, please remember to allow enough cable to tilt the luminaire to its
final resting position. Never allow the mains wiring to become strained.
Remove the terminal cover from the back of the fitting.
Terminate the wiring and select the CCT colour you require using the switch (Never
switch the CCT colour while powered up as this can damage the LED chips).
Class I Product so this luminaire must be earthed.
Reinstall the terminal cover ensuring the seal is in place and seated correctly.
DO NOT use power drivers to tighten terminal cover screws as this can cause
damage to the terminal cover and invalidate the warranty!
Finally, adjust the angle of tilt to the required position and tighten bolts.
Turn mains supply on and test luminaire.
Adjust the settings you require on the PIR see overleaf.
12.06.2019 MAC
10W Triple CCT LED
1.0m
KSR Lighting Ltd, Unit E Hazleton Interchange, Lakesmere Road, Hampshire, PO8 9JU
Siena CCT
Live
Brown - Live
240v
Earth
Green/Yellow - Earth
Supply
Neutral
Blue - Neutral
i
LED Floodlight with PIR
Available finish:- Black
126mm
113mm
Luminaire
Connections

Lamp Details

Lamp: 10W Triple CCT 3000K, 4000K or 6000K
Lumen Output:
3000K - 735 lumens
4000K - 875 lumens
6000K - 815 lumens
CRI: >Ra80
The light source of this luminaire is not
replaceable; when the light source
reaches its end of life the whole
luminaire shall be replaced
KSR Lighting Aftersales: 023 92 674343
E-mail: aftersales@ksrlighting.com
Drg No. KSR5281-IS-C
64mm
44mm
