KSR KSR5287 Installation Sheet

KSR5287
Installation Sheet
Read these instructions before commencing installation. Please give these instructions to the owner/occupier after
installation to retain for future reference/maintainence.
IP65
0.5m
These fittings are Class I and must be Earthed
Important Information
It is recommended that these luminaires are installed and fitted by a qualified electrician
ensuring the installation complies with current IEE wiring regulations & local building
control. These products are designed for connection to a 240VAC~50Hz supply.
Any faulty, broken or damaged luminaires should be replaced immediately.
KSR will not accept responsibility for any claims arising from a poor installation.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer, end user or any third party
to exercise caution to protect any covered product or part from outside damage, humidity conditions, fluctuations in the electrical system or
physical abuse as well as failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before installing/servicing.
Please note this luminaire is Non Dimmable.
At the end of life the luminaire is classed as WEEE under directive 2014/30/EU and should be disposed of in accordance with local legislation.
General Maintenance
General maintenance and cleaning should be performed at least quarterly.
Clean product outer using a damp cloth, the glass can be cleaned with hot soapy water, dried and buffed to a shine.
To protect the paintwork we recommend the use of a good quality car wax.
After any maintenance remember to check all seals are intact.
Grease screws and nuts with a suitable waterproof repellent to ensure trouble free operation in the future.
Installation Procedure
Familiarize yourself with the luminaire and ensure the power is safely isolated before installing.
Locate a suitable location for the luminaire, use the mounting bracket as a template to drill fixing holes.
Secure the bracket into position using suitable fixings.
Prepare wiring, using suitable cable for the application. When securing this product to a wall, please remember to allow enough cable to tilt the
luminaire to its final resting position. Never allow the mains wiring to become strained.
Remove the terminal cover from the back of the fitting.
Terminate the wiring and select the CCT colour you require using the switch (Never switch the CCT colour while powered up as this can damage
the LED chips).
Class I Product so this luminaire must be earthed.
Reinstall the terminal cover ensuring the seal is in place, seated correctly and undamaged.
DO NOT use power drivers to tighten terminal cover screws as this can cause damage to the terminal cover and invalidate the warranty!
Finally, adjust the angle of tilt to the required position and tighten bolts. Remove the luminaire label from the glass.
Turn mains supply on and test luminaire. Pass on these instruction sheets to the owner/occupier.
Adjust the settings you require on the PIR see overleaf.
Wiring Details ( Class I )
Luminaire
Brown (L)
Green/Yellow (E)
Blue (N)
24.10.2024MAC
240VAC~50Hz 50W Triple CCT LED
Mains Supply
Brown - Live
Green/Yellow - Earth
Blue - Neutral
KSR Lighting Ltd, Optimum House, Beeding Close, Southern Cross Trading Estate,
Bognor Regis, West Sussex, PO22 9TS.

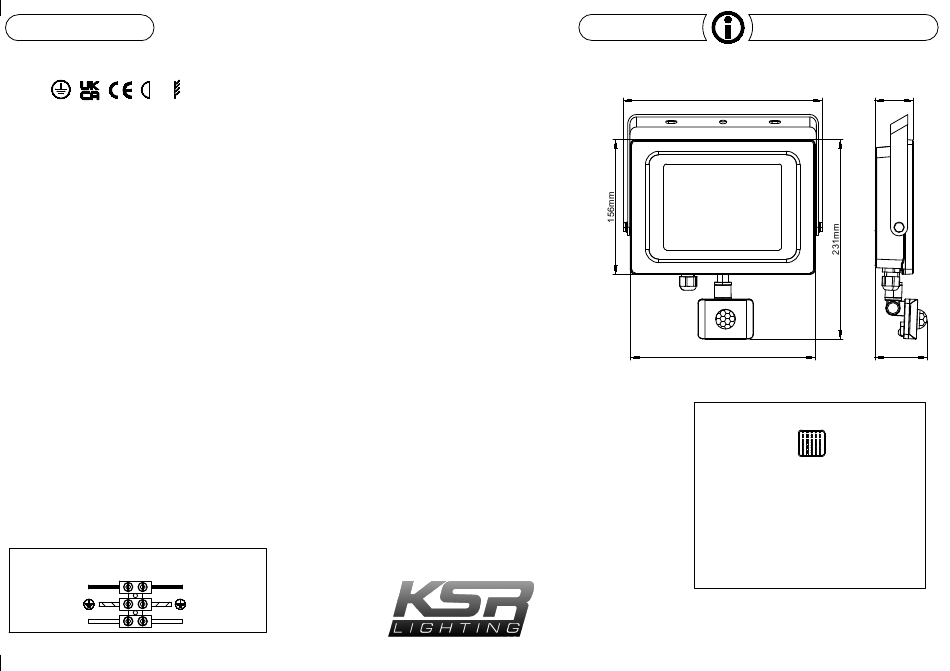

Siena CCT LED LED Floodlight with PIR
Available finish:- Black
231mm
214mm
Lamp: 50W Triple CCT 3000K, 4000K or 6000K
Lumen Output:
3000K - 5685 lumens
4000K - 6240 lumens
6000K - 5910 lumens
CRI: >Ra82
The light source of this luminaire is not
replaceable; when the light source
reaches its end of life the whole
luminaire shall be replaced
This product contains a light source of energy efficiency class E
KSR Lighting Aftersales: 023 92 674343
E-mail: aftersales@ksrlighting.com
44mm
60mm
Lamp Details
Drg No. KSR5287-IS-F
