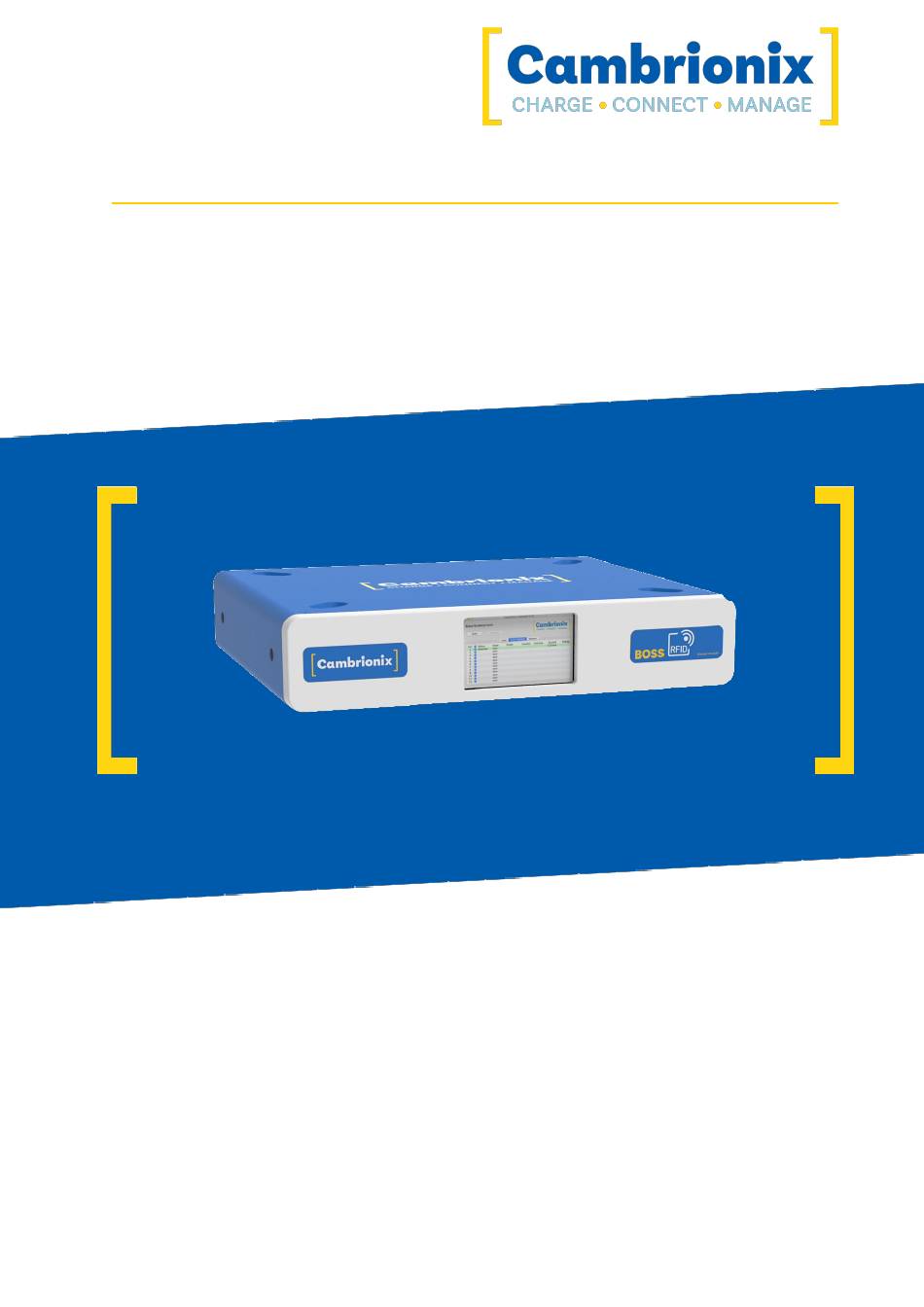

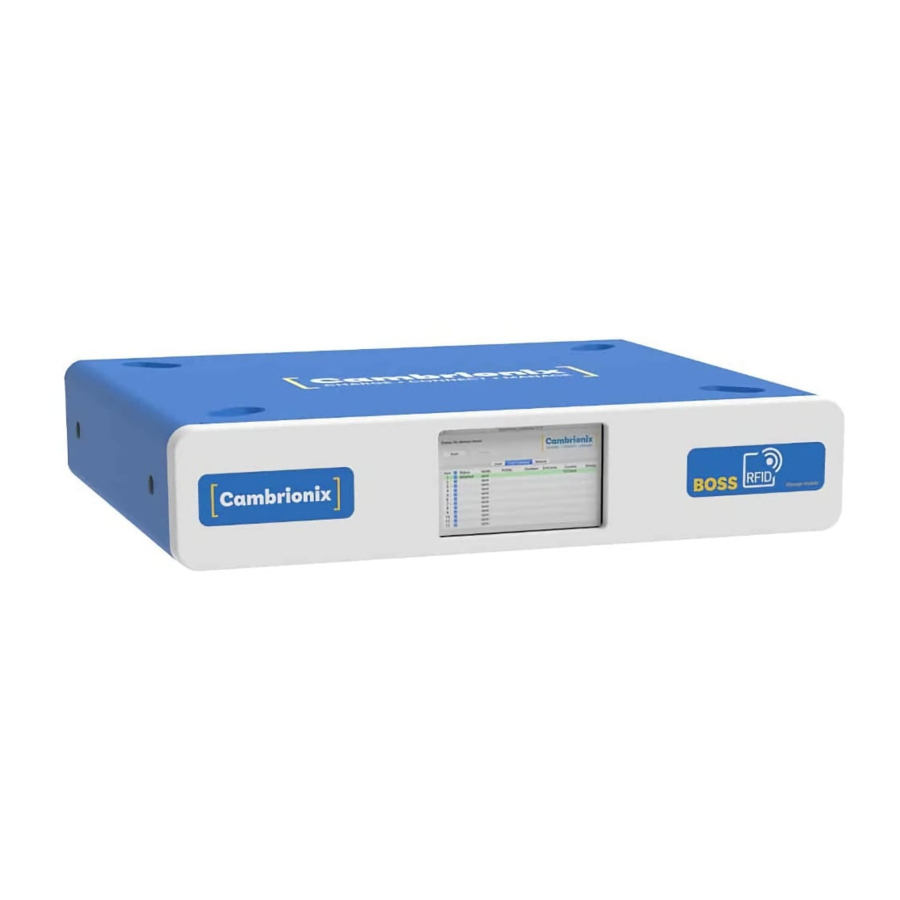

- Page 1 ModIT-Boss User Manual © 2023-02 Cambrionix Ltd. All rights reserved.
-
Page 2: Table Of Contents
3.1. Unpacking your product 3.2. What's Included 3.3. Connecting to the mains 3.4. Charging 3.5. Cables 3.6. Registration 3.7. Cleaning your ModIT-Boss 3.8. Help and Support 4. Installing Host System 5. Product Specifications 5.1. Input Power Requirements 5.2. Rail value limits 5.3. -
Page 3: Safety
To avoid injuries and damage, observe the safety instructions in the user manual. This manual has been arranged to follow the IEC/ICEE 82079-1 standard. This is to facilitate the easier understanding and location of information relating to the ModIT-Boss. Any errors or omissions can be reported using our support ticket system (seeHelp and Support). -
Page 4: Safety Alert Symbol
Mandatory regulation 2.4. Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and international safety regulations. Modifications to the product could affect safety and render the product non-compliant with relevant safety standards, resulting in injury or damage to the product. -
Page 5: Power Supply
Do not bend or pull the power cord with excessive force. Do not use a power supply that exceeds the power supply specifications within this manual 2.6. Storage and Installation This section describes safety precautions you must follow when installing and storing your ModIT- Boss. ModIT-Boss Page 5 of 23... - Page 6 Do not place the power cord near heat sources. Connect the plug only to an earthed socket. CAUTION Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range.
-
Page 7: Getting Started
As well as a guide for product safety-related information. The ModIT-Boss is intended to be used in an indoor static environment in which the environment falls within the tested specifications to provide charge, sync and management functionality. Please see the physical specifications section of this manual for information on the environment specifications. -
Page 8: Connecting To The Mains
A whilst transferring data. 3.4. Charging Your ModIT-Boss will allow your device to charge at the maximum rate possible up to A. The way that charging takes place is the ModIT-Boss will provide the device with a capability to charge and the devices USB charging controller will determine the maximum amount of charge it wants to draw down. -
Page 9: Cleaning Your Modit-Boss
3.7. Cleaning your ModIT-Boss Cleaning the product is generally not required, although in some instances it may be necessary if excess dirt/ dust/ hair has accumulated, or if minor liquid spillages have occurred on the module during operation or storage. -
Page 10: Installing Host System
The image below demonstrates how the product should look at this stage. Notice the highlighted yellow screws, which should all have been removed at this point With a spanner, undo the highlighted nut below. Once removed, it will allow you to slide the lid off fully. ModIT-Boss Page 10 of 23... - Page 11 (highlighted in yellow), to remove the Mac mini chassis. Once you have removed the Mac mini chassis place your Mac mini on the circular mat (outsides highlighted below). You can then attach the Mac mini to the three wires on the left. ModIT-Boss Page 11 of 23...
- Page 12 Once the Mac mini is secure, reattach the Mac mini chassis, and the side panels in the same order that they were removed. ModIT-Boss Page 12 of 23...
-
Page 13: Product Specifications
Boxed Dimensions WxDxH (m) 0.57 x 0.19 x 0.57 m 5.5. Consumables and Placing Orders Below is a list of any Consumable products you may require for your ModIT-Boss including the cables you will require to connect devices to the hub. Fuses T3.15A 250... - Page 14 These can be ordered from the reseller or solution partner you purchased your ModIT-Boss from, or from Cambrionix directly. To find one of our partners local to you please visit www.cambrionix.com/partners where you can learn about the local vendors and distributors that can assist you and find their contact information.
- Page 15 ModIT-Boss Page 15 of 23...
-
Page 16: Disposal
August 12, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection facilities in the disposition of this product and otherwise observe all applicable requirements. Cambrionix PRN (Producer Registration Number) For the UK is "WEE/BH191TT". ModIT-Boss Page 16 of 23... -
Page 17: Returns And Damaged Products
7.2. What happens after I have requested a Return? If you have not purchased the Product(s) direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process. -
Page 18: Compliance And Standards
CB Certificate Complies with EN60950 safety requirements for IT equipment FCC Part 15 Tested and marked Housed within a UL94-VO specification fire enclosure RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 ModIT-Boss Page 18 of 23... -
Page 19: Terms And Conditions
9. Terms and Conditions The use of Cambrionix hubs is subject to the Cambrionix Terms and Conditions, the document can be downloaded and viewed using the following link. https://downloads.cambrionix.com/documentation/en/Cambrionix-Terms-and-Conditions.pdf ModIT-Boss Page 19 of 23... - Page 20 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 21 Cambrionix Patents Application Title Link Grant Number Number Syncing and Charging Port GB2489429 1105081.2 2489429 CAMBRIONIX UK00002646615 2646615 00002646615 CAMBRIONIX VERY UK00002646617 2646617 00002646617 INTELLIGENT... MOD IT DS GB2591233 6089600 6089600 MOD IT eSearch 007918669 007918669 MOD IT 90079186690001 007918669-0001...
- Page 22 MOD IT STACK 29/735,475 D936,000 MOD IT DS LUGS 6089601 6089601 6089601 MOD IT MM 6089602 6089602 6089602 MOD IT DS LUGS 6089603 6089603 6089603 MOD IT STACK 6089604 6089604 6089604 MOD IT 6089605 6089605 6089605 ModIT-Boss Page 22 of 23...
