Clevetronics L10 LUBPRO UPS Series Quick Start Manual

DALI EM Option
Fittings with part numbers containing -DALI are fitted with DALI modules (nodes) that facilitate connection
rd
and integration to 3 Party Lighting Control Systems. The
into the control system by the Lighting Control System Commissioning Technicians and not Clevertronics.
State
Commissioned/ Un-commissioned
"IDENTIFY COMMAND"
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
To confirm operation of the fitting the Lighting Control System can only use the status query type
command. To "test" the sign this status query will need to be synchronised with the formal test of the
UPS from its battery source. The sign will report a fault if the LED lamp bar is not illuminated.
DO NOT
run a Start Function Test or Start Duration Test command.
run, the fitting will go into test mode and the fitting will switch off as it will be internally disconnected
from main power and there is no battery, so the LED lamp bar won't run – the unit will report a failed
test. This condition cannot be rectified, and the fitting will report this forever as it can never pass a test
of this type.
–DALI fitting
will be addressed and configured
LED Operation
LED on Solid (Green)
Fitting goes off for 10 seconds
If either of these is

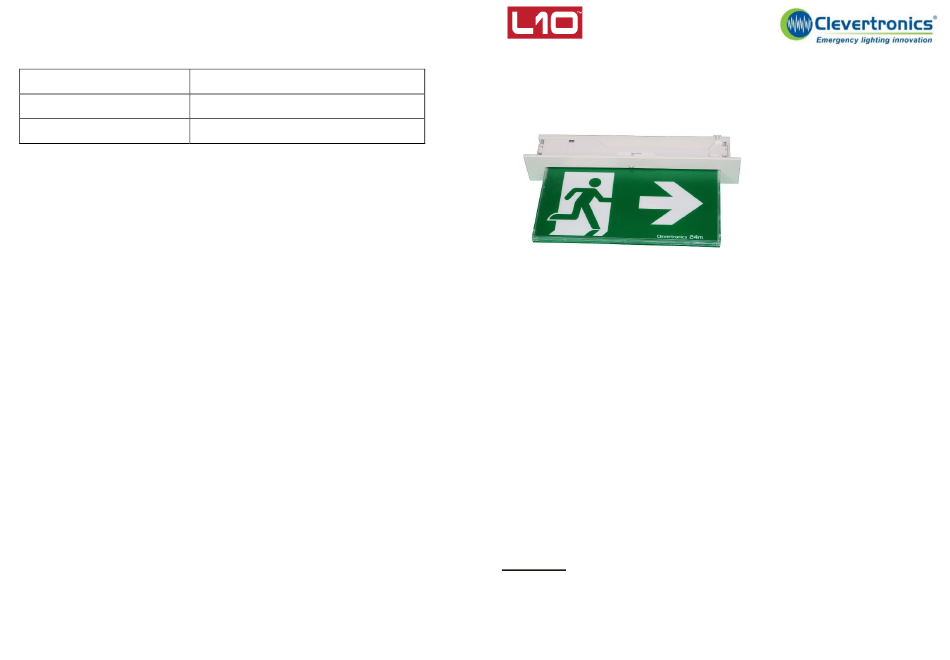

L10™ Ultrablade Pro LED Exit - UPS
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements of
AS2293.3: 2005 and AS/NZS CISPR15: 2011
Models: LUBPRO-xx-ss-UPS
Testing:
Manual Test xx = Blank
DALI xx = DALI
Spare Parts:
8002178 PCA: UBP LED strip PCB Assy
LUBPRO-CKIT Ultrablade Pro Control Only, L10
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
