Aritech ACL870FL-PB Installation Sheet

Flush mount rte push button

ACL870FL-PB Flush Mount RTE Push Button

Installation Sheet

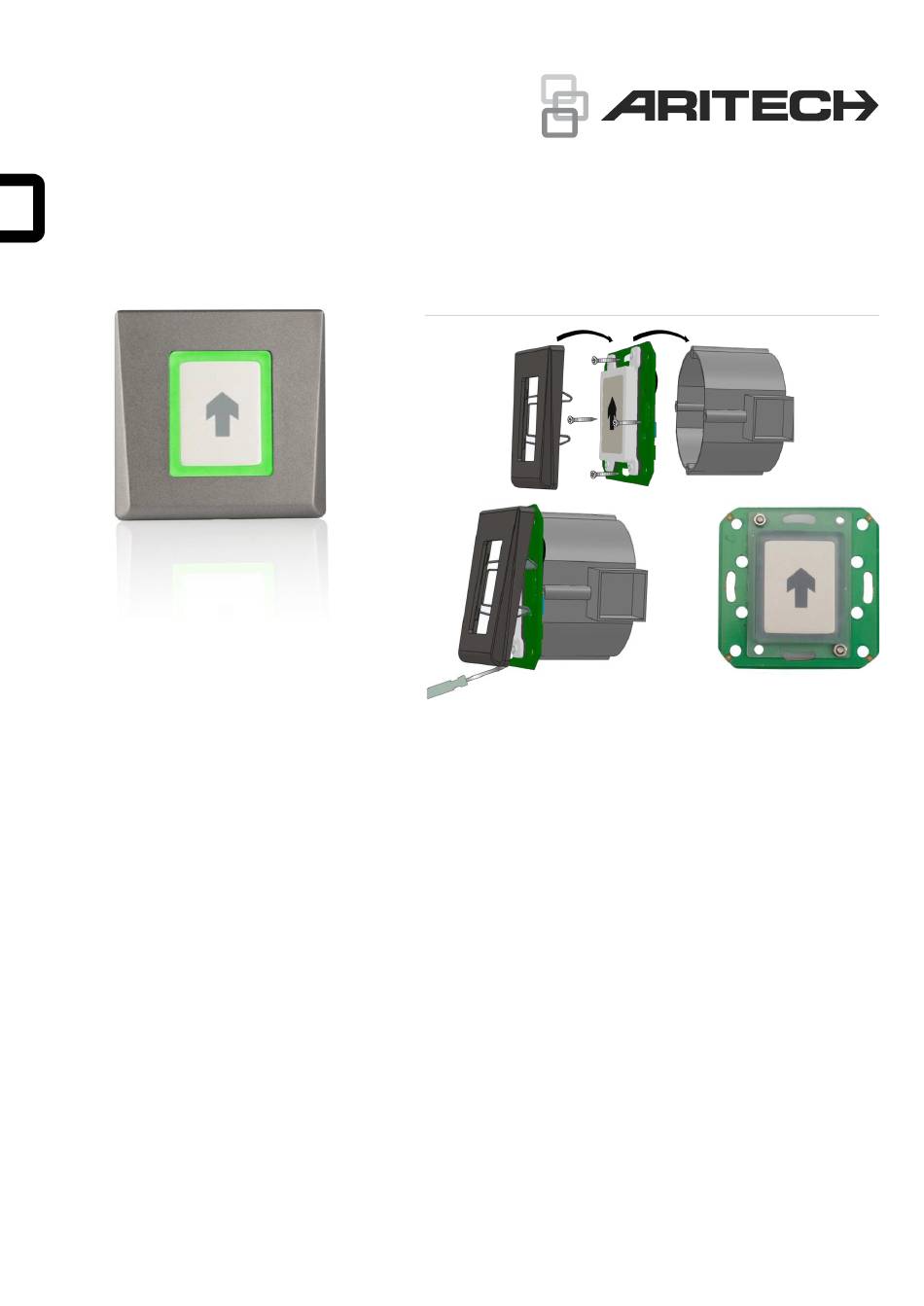

Figure 1: Mounting instructions

Description

ACL870FL-PB has a remote relay control unit for use with the ACL870FL-BS and the ACL870SU-BS biometric readers. If a secure

installation is needed, the biometric reader can be connected to this ACL870FL-PB at secured area. It also plays the role of exit

push button. It has two relay outputs and two RTE button inputs.

The connection between the biometric reader and this ACL870FL-PB unit is done via RS485. Once the reader and the remote

relay unit are paired, the reader will use the relays of the ACL870FL-PB.

See Figure 1 above.

P/N 1073517-EN • REV B • ISS 07JUL22

1 / 4

Table of Contents

Do you have a question about the ACL870FL-PB and is the answer not in the manual?

Page 1 ACL870FL-PB has a remote relay control unit for use with the ACL870FL-BS and the ACL870SU-BS biometric readers. If a secure installation is needed, the biometric reader can be connected to this ACL870FL-PB at secured area. It also plays the role of exit push button.
Page 2 Figure 2: Application diagrams ACL870FL-PB 2 Relay remote unit and 2 request-to-exit button inputs Reader RS485 (max. 50 m) Secured area Outside ACL800FL-RU2 ACL870FL-PB (optional) (optional) 2 Relay Remote Unit 2 Relay Remote Unit and Request-to-Exit Button ACL870SU-BS Secured area Outside ACL870SU-PB (optional)
Page 3 Figure 3: Wiring instructions Connect the door lock on the ACL870FL-PB relay. The reader and the remote relay unit ACL870FL-PB should be connected with 4 wires: +, −, A and B (RS485, max. 50 m). Pairing reader with remote relay...
